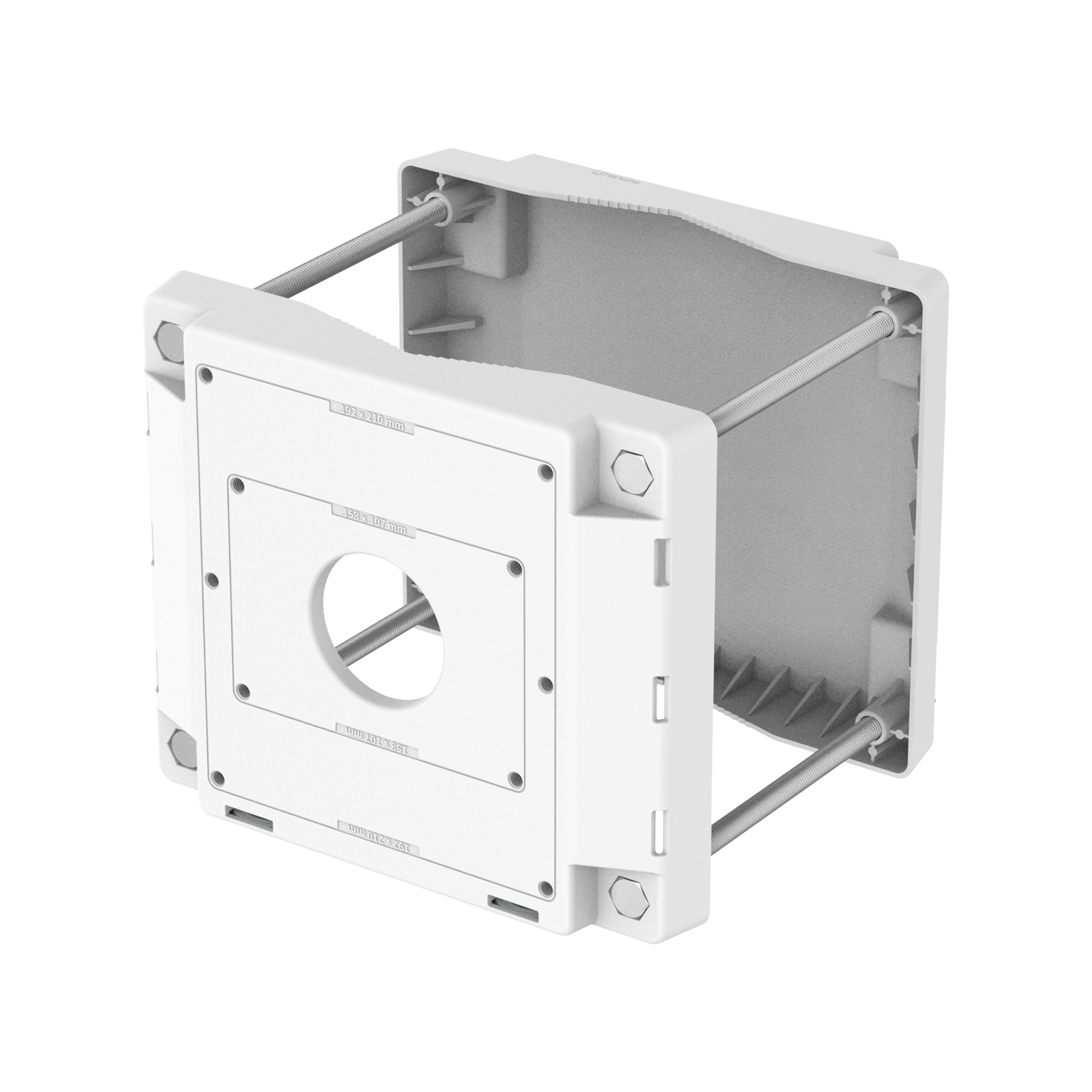

Hanwha SBP-150PMW

Pole Mount for SBP-150NBW – Max Load 40kg (88lbs)

The SBP-150PMW is a pole mount bracket designed for the SBP-150NBW. Made from white aluminum with a RAL9003 finish, it supports a maximum load of 40kg (88lbs). The bracket attaches to poles using a vice grip for pole thicknesses of ø80~200mm (ø3.15~7.88"), or a steel strap for poles larger than ø200mm (ø7.88"). It features a conduit hole of 19.1mm (3/4") (M25) for cable routing and uses TR30, M12 mount screws.

Key Features:

• Color: White, Material: Aluminum (RAL9003)
• Max. load: 40kg (88lbs)
• Dimensions: 310x260x49mm (12.21x10.24x1.93") / Weight: 3,200g (7.06lb)
• Pole mounting via vice grip (ø80~200mm) or steel strap (ø200mm~)
• Mount screw size: TR30, M12
• Conduit hole: 19.1mm (3/4") (M25)
