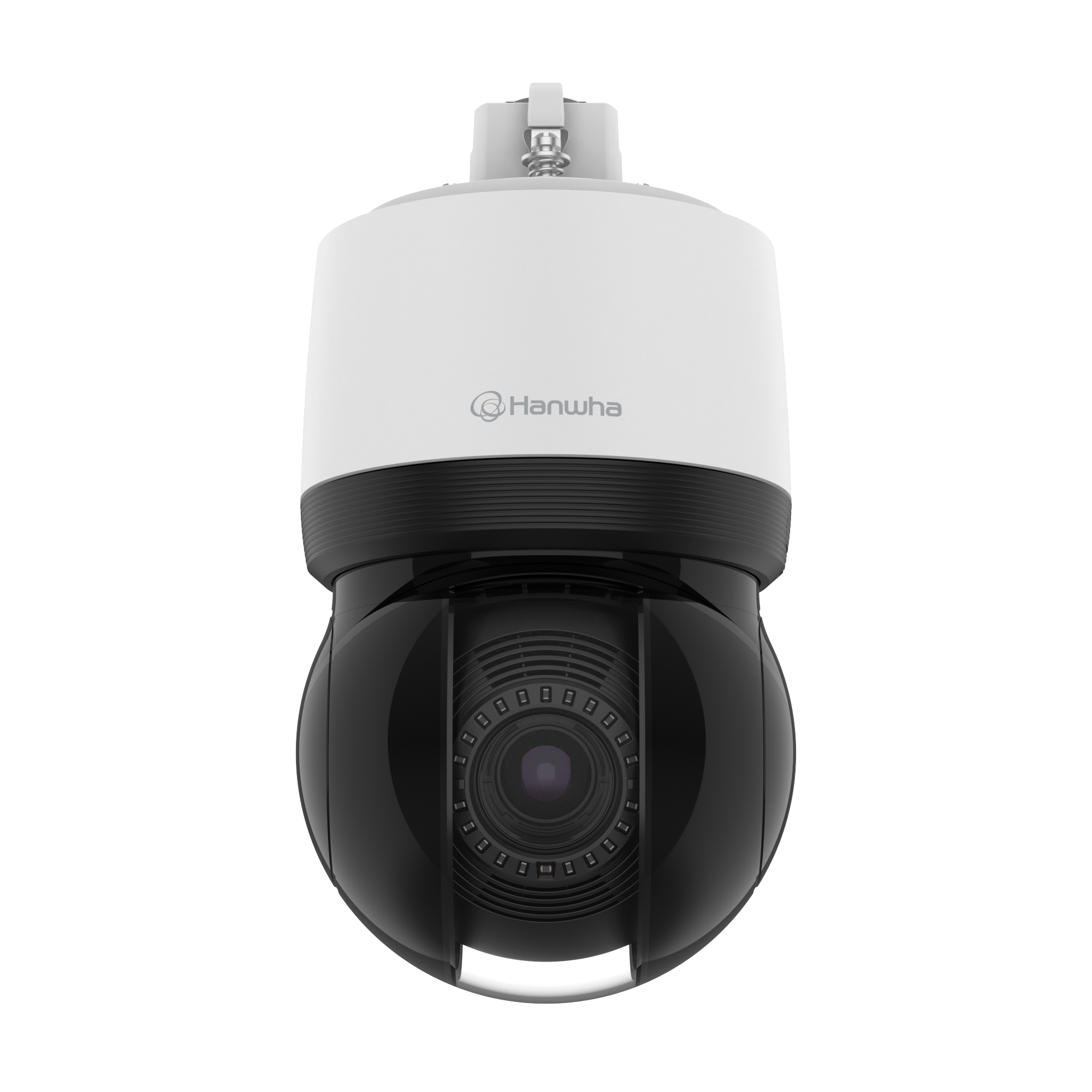

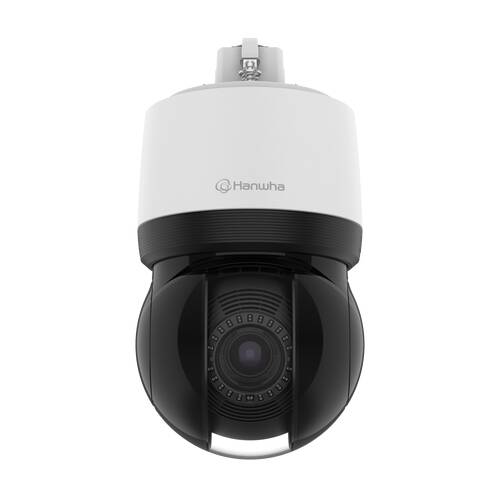

Hanwha XNP-C6403

Hanwha Article code XNP-C6403

NetcamCenter {{ fullProductName }}

2MP 40x AI PTZ, 32× digital zoom, Day & Night, Extreme WDR 150dB, Vandilsmproof
In stock
Buy now
+ Quote
  • Outdoor PTZ 2MP
  • 40x zoom lens 65.66° - 1.88°
  • Light sensitivity: Color 0.05 Lux, B/W 0.005 Lux

Description Hanwha XNP-C6403

X series powered by Wisenet 7 network outdoor AI PTZ camera, 2MP @ 60fps, 40x Optical Zoom lens (4.25 ~170mm) (65.66º ~ 1.88º),60° Endless Pan range, 700°/sec Pan speed, Tilt: -20° ~ 90°, triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, extreme WDR (150dB), True Day & Night (ICR),Analystics events based on AI engine, Defocust / Motion / Fog / Shock detection, Tampering, Virtual area, Classified object (Person/Face/Vehicle/License plate), Attributes (Vehicle type), Object auto tracking(Person/Vehicle), Target lock tracking, Digital Image Stabilization with Built-in Gyro sensor, 2x Micro SD/SDHC/SDXC slots up to 1TB, IP66, IK10, NEMA4X, NEMA-TS2, PoE+

* Alarm outputs, Audio detection, Sound classification(with NW I/O Box which can be purchased separately)

Key Features:

  • Max. 2MP resolution
  • 4.25~170mm(40x) zoom (digital 32x, total 1280x zoom)
  • Color: 0.05Lux(F1.6, 1/30sec), BW: 0.005Lux(F1.6, 1/30sec)
  • Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
  • H.264, H.265, MJPEG codec, WiseStream II
  • IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
  • PTZ PLUS Design applied (Compact, Lighter, Simple cabling)

Downloads

Datasheet Download pdf
User manual Download pdf
Product dimensions Download pdf

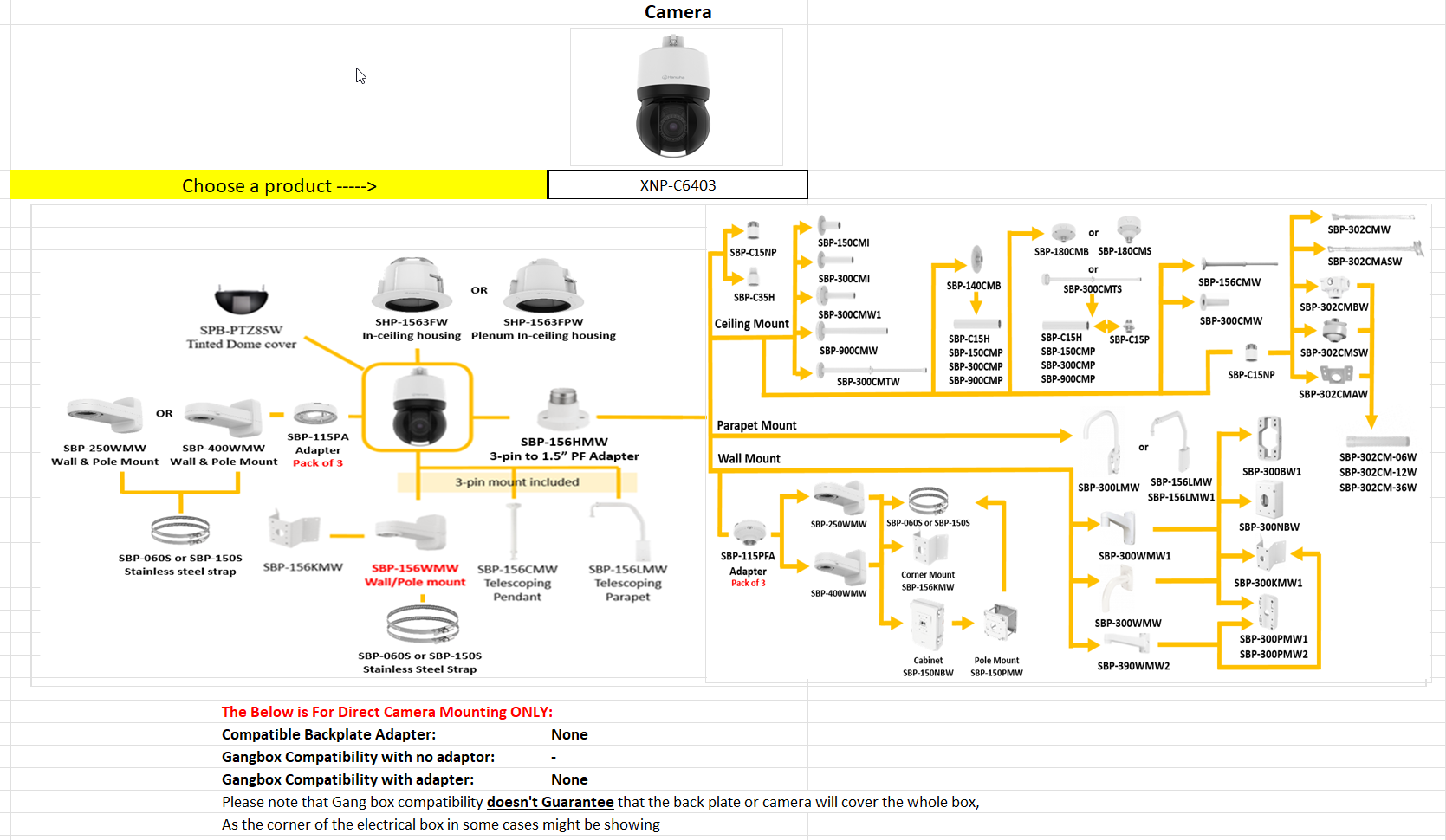

Monunting tools Download png

Specifications

Product
Model number XNP-C6403
GTIN code 8801089224620
Brand Hanwha
Category
IP Cameras
PTZ
HS Code
852589
Country of origin
Vietnam
Weight
3200 grams
Size (lxwxh)
219 x 279 x 348 millimeters
Camera Properties
Outdoor
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
1080p (2MP)
Hanwha Series
Wisenet X
Angle of View
180° - 360°
Optical zoom
28+
Encoding
H264
H265
MJPEG
