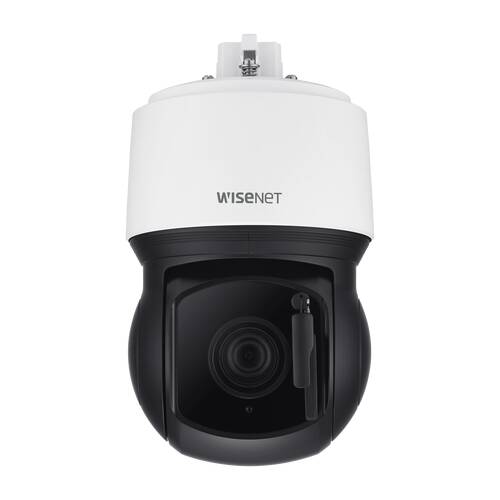

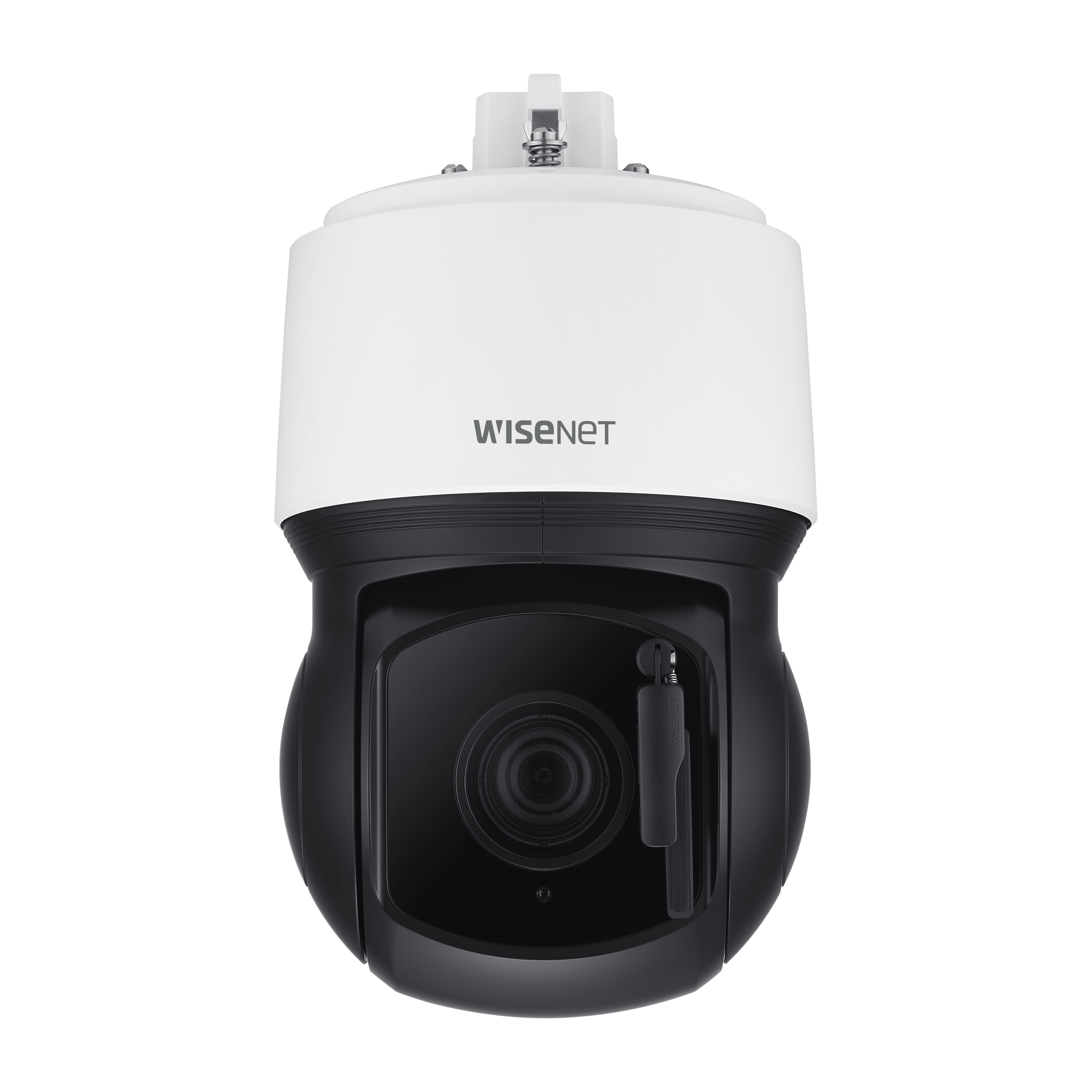

Hanwha XNP-9300RW

Hanwha Article code XNP-9300RW
End of sale

NetcamCenter {{ fullProductName }}

4K Network IR PTZ Camera, 30x Optical Zoom, Day / Night, Extreme 120dB WDR, Built-in Wiper, Vandal Resistant
In stock
Buy now
+ Quote
  • 4K Netwerk IR PTZ Camera
  • Light sensitivity colour: 0.1 Lux

Successor

Description Hanwha XNP-9300RW

The XNP-9300RW PTZ PLUS features our Wisenet 7 chipset, to deliver a 4K resolution 30X optical zoom camera. Featuring increased look up tilt range, 360° endless pan, wiper, and IR illumination, in a new compact, lightweight form factor for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology, extreme WDR, advanced video analytics and sound classification (I/O box required for audio detection/classification), true D/N, dual SD card slots, DIS (Gyro), HPoE, IP66/IK10, temperature range from -40°F ~ +131°F.

The high power IR illuminators allow for monitoring in complete darkness up to 200 meters away in crisp detail with the 30x optical zoom lens. Optional mount accessories required.

Key Features:

  • Max. 4K resolution
  • 5~150mm (30x) optical zoom (digital 32x, total 960x zoom)
  • Max. IR viewable length 200m
  • Day & night (ICR), extreme WDR,
  • DIS (Built-in gyro sensor)
  • Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
  • H.264, H.265, MJPEG codec, WiseStreamII
  • IP66, IK10, NEMA4X
  • PTZ PLUS Design applied (Compact, Lighter, Simple cabling)

Downloads

Datasheet Download pdf
User manual Download pdf
Product dimensions Download pdf

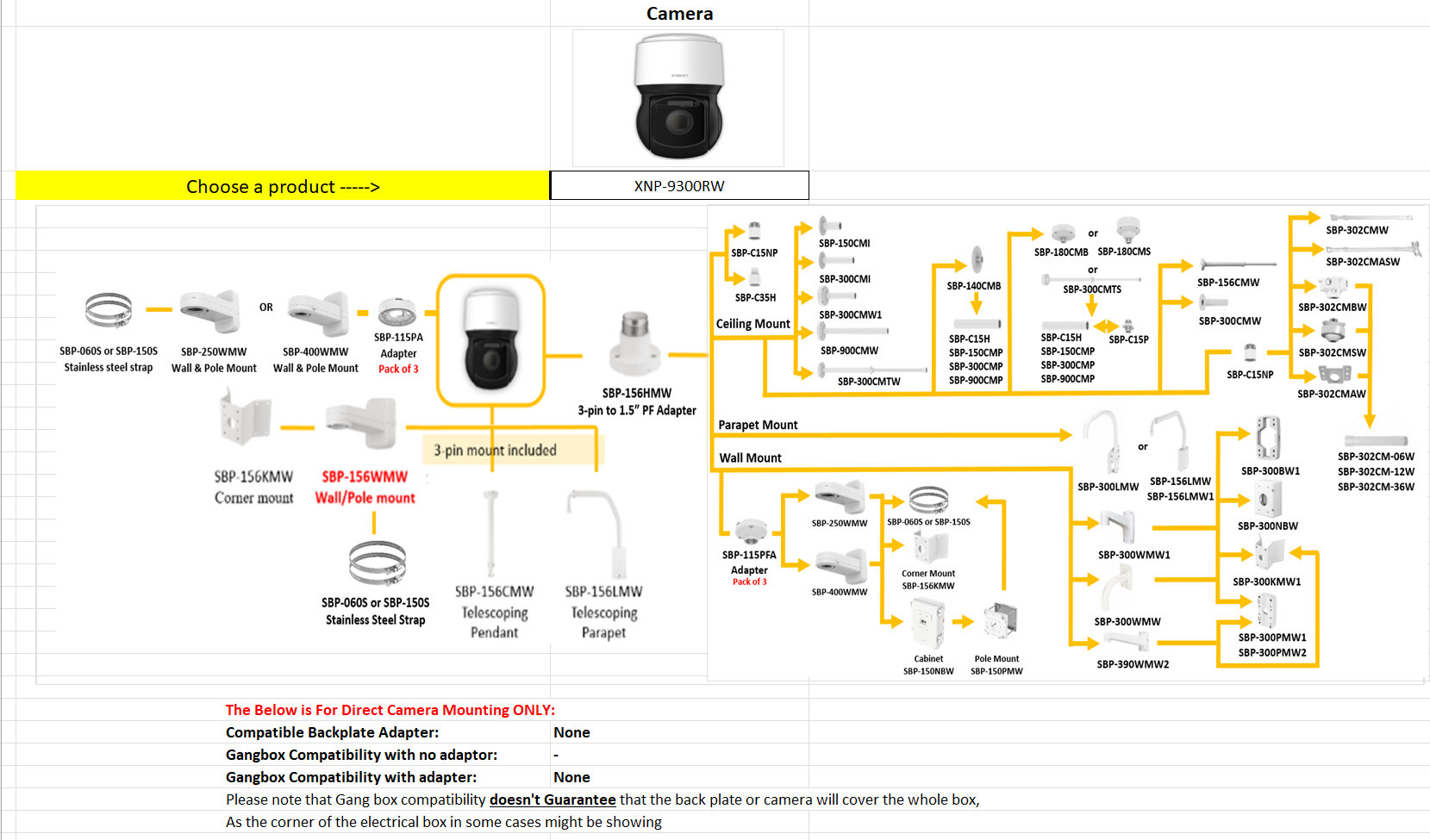

Mounting tools Download png

Video

Specifications

Product
Model number XNP-9300RW
GTIN code 8801089191854
Brand Hanwha
Category
IP Cameras
PTZ
HS Code
852589
Country of origin
Vietnam
Weight
5400 grams
Size (lxwxh)
235 x 248 x 443 millimeters
Camera Properties
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
4K (8.3MP) or higher
Software
Analytics
Hanwha Series
Wisenet X Plus
Angle of View
180° - 360°
Optical zoom
28+
Encoding
H264
H265
MJPEG
