Hanwha SBP-150NBW

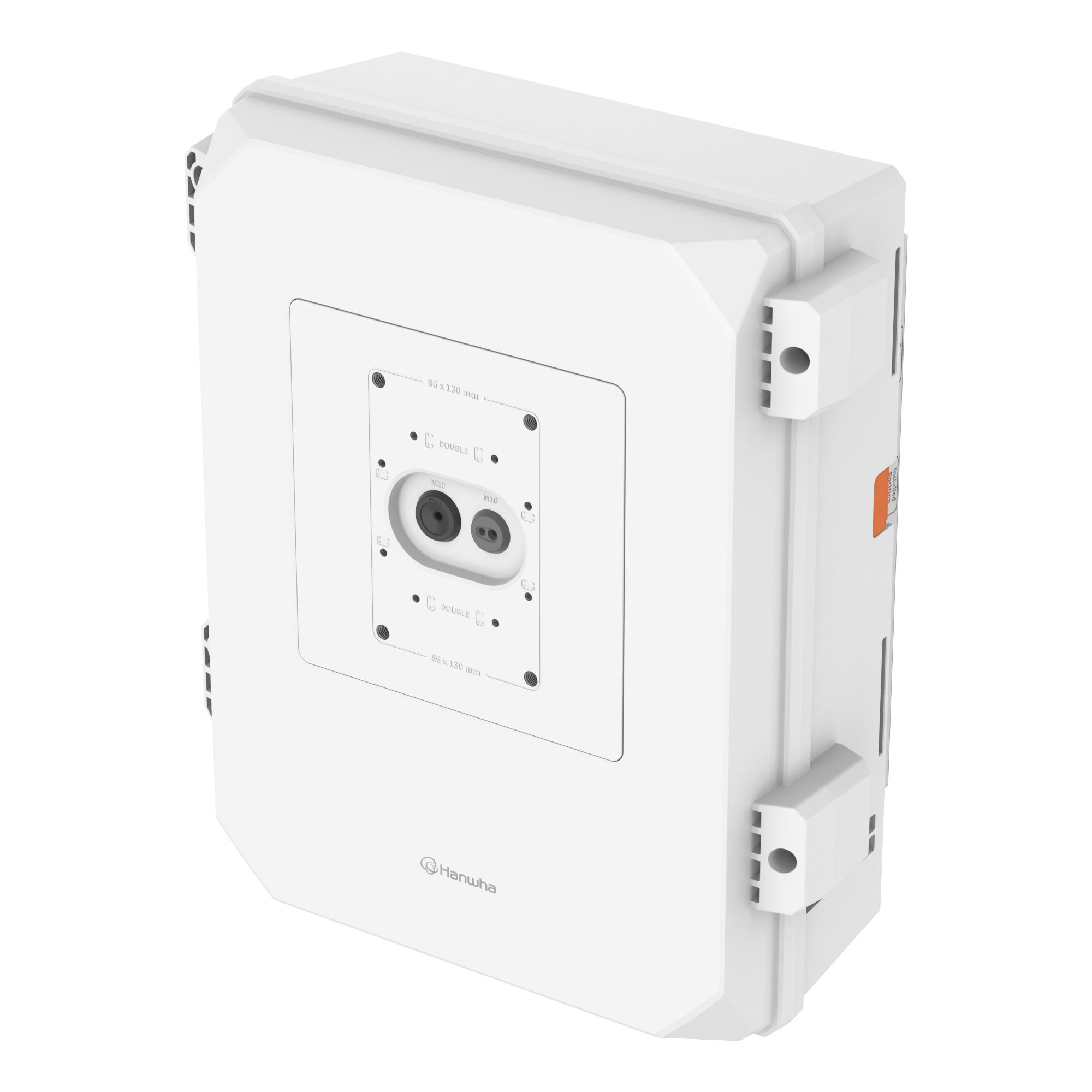

SBP-150NBW: Rugged IP66/IK10/NEMA 4X Camera Installation Cabinet

The SBP-150NBW is an installation cabinet designed to house and protect compatible Hanwha Vision cameras in demanding outdoor environments. Built from PC (Polycarbonate) and Aluminum in white with RAL9003 finish, it carries IP66, IK10 and NEMA 4X certification for protection against dust, water ingress and impact. It operates reliably across a wide temperature range of -40°C to +65°C and 0~100% RH (condensing), with humidity control via an integrated air vent, and can be stored between -50°C and +65°C at up to 95% RH. The cabinet measures 360x420x163.1mm, weighs 3,960g, and supports a maximum load of 15kg (33lbs). It is compatible with camera models including QNV-C8083R/C9083R, XND-C6083RV/C7083RV/C8083RV/C9083RV, XNV-C6083R/C7083R/C8083R/C9083R, XND-6083RV/8083RV/9083RV and XNV-6083R/8083R/8093R/9083R, as well as installation solutions SBP-156WMW, SBP-250WMW, SBP-400WMW, SBP-150PMW, SBV-140BW, SBO-140BW, SBO-090GP and SBD-110GP1.

Key Features:

• IP66, IK10 and NEMA 4X certified protection
• Operating temperature -40°C~+65°C, 0~100% RH (condensing)
• PC (Polycarbonate) and Aluminum construction in white, RAL9003
• Max. load of 15kg (33lbs)
• Humidity control via integrated air vent
• Compatible with multiple Hanwha Vision cameras and installation solutions (e.g. SBP-156WMW, SBP-250WMW, SBP-400WMW, SBP-150PMW)
