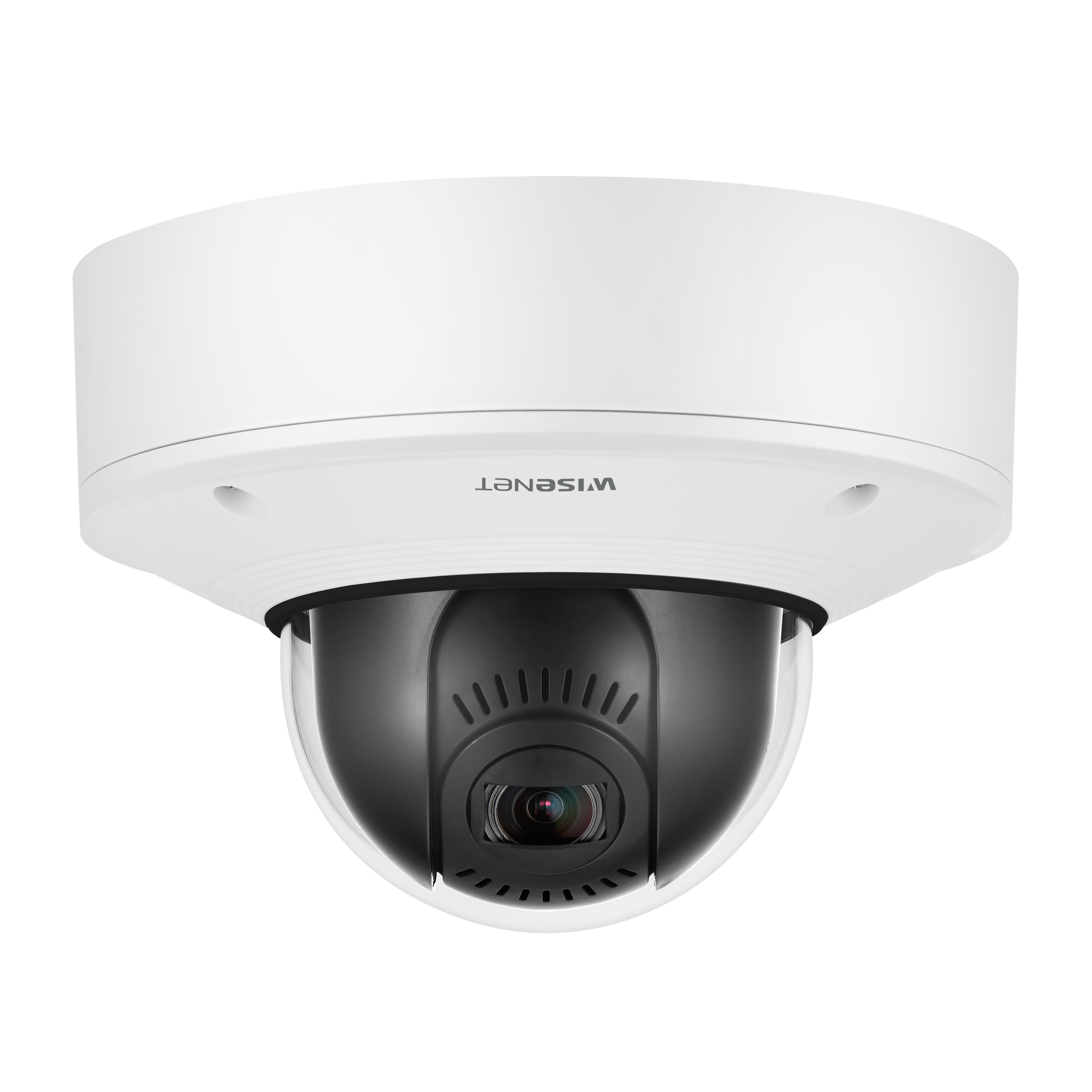

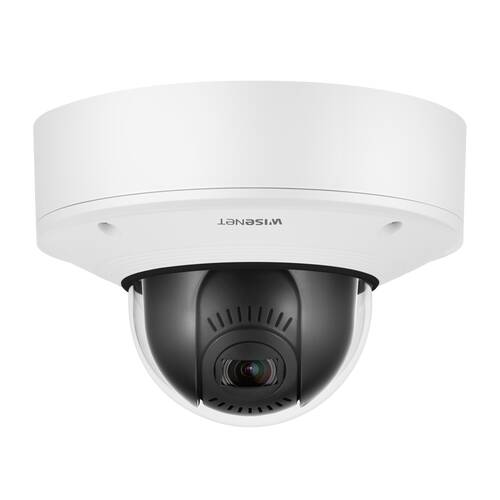

Hanwha XNV-6081Z

Hanwha Article code XNV-6081Z

NetcamCenter {{ fullProductName }}

Outdoor 2MP Vandal Resistant Dome Camera, Vari-focal Lens 120° - 28°, 60fps, Day / Night, Extreme 150dB WDR, PTRZ, IP67
In stock
Buy now
+ Quote
  • Outdoor 2MP Vandal Resistant Dome Camera
  • Vari-focal Lens 120° - 28°
  • Light sensitivity colour: 0.015 Lux, B/W: 0.0015 Lux
  • Suitable for People Counting, Queue Managemente and Heatmap

Description Hanwha XNV-6081Z

The Wisenet X series PLUS powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 2MP, Full HD(1080p) @ 60fps, motorized vari-focal lens 4.3x (2.8~12mm) (119.5°~27.9°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 150dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.

Key Features:

  • Max. 2Megapixel
  • 0.015Lux@F1.4 (Color), 0.0015Lux@F1.4 (B/W) (XNV-6081Z)
  • Day & Night (ICR), WDR (150dB)
  • Modular structure and motorized PTRZ
  • Hallway View, WiseStreamII Support
  • Video & audio analytics, Audio playback
  • DIS and shock detection with built-in gyro sensor
  • IP67/IP66/IP6K9K, IK10+, NEMA4X
  • PoE, 12VDC, 24VAC (Optional)

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

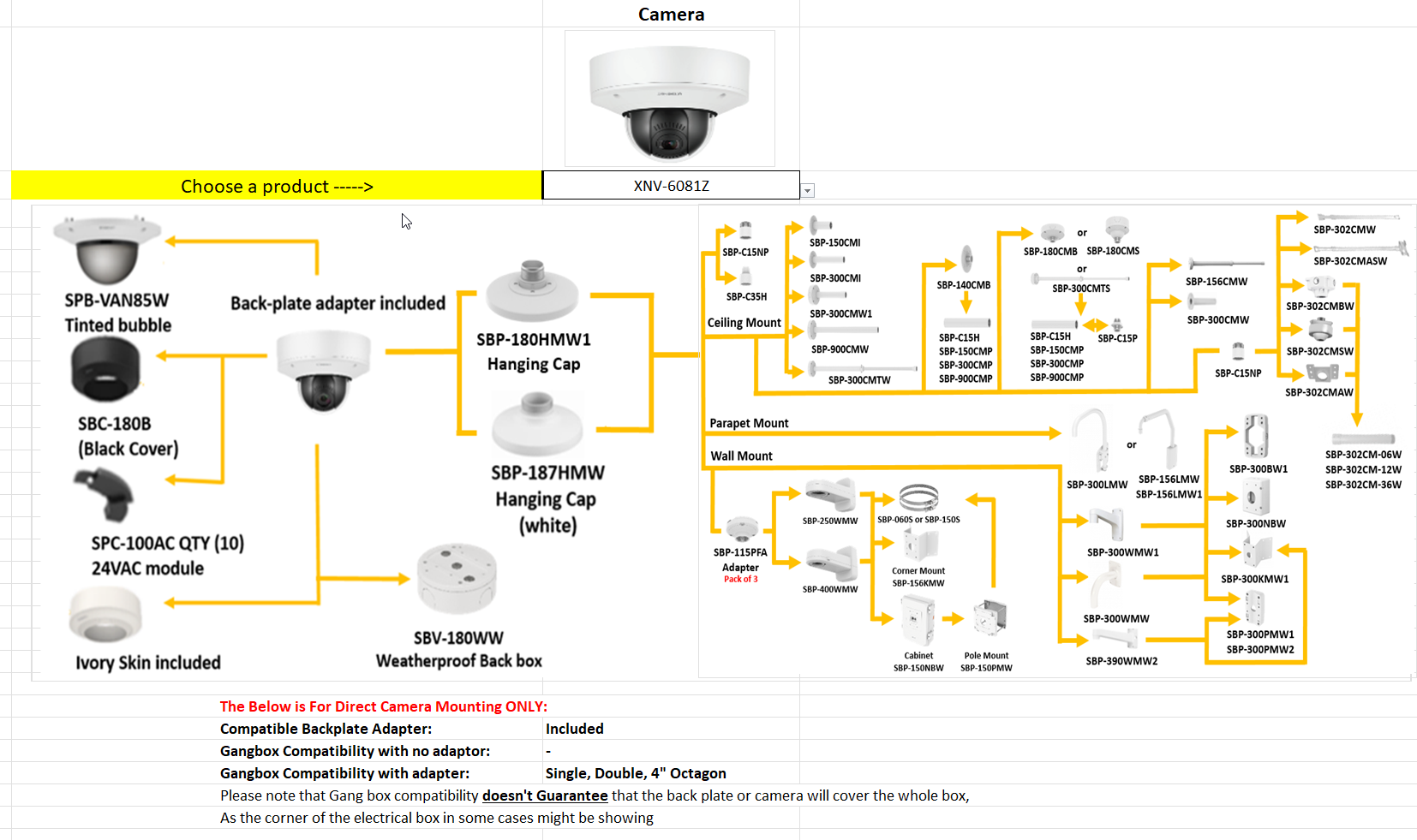

Mounting tools Download png

Video

Specifications

Product
Model number XNV-6081Z
GTIN code 8801089152503
Brand Hanwha
Category
IP Cameras
Dome
HS Code
852589
Country of origin
Vietnam
Weight
1750 grams
Size (lxwxh)
490 x 574 x 365 millimeters
Camera Properties
Outdoor
Vandal resistant
Basic Functionality
Day and night
RPTZ
Local Storage
Resolution
1080p (2MP)
Software
Analytics
Hanwha Series
Wisenet X
Angle of View
101° - 130°
