Hanwha PNM-C16083RQZ

Hanwha Article code PNM-C16083RQZ

NetcamCenter {{ fullProductName }}

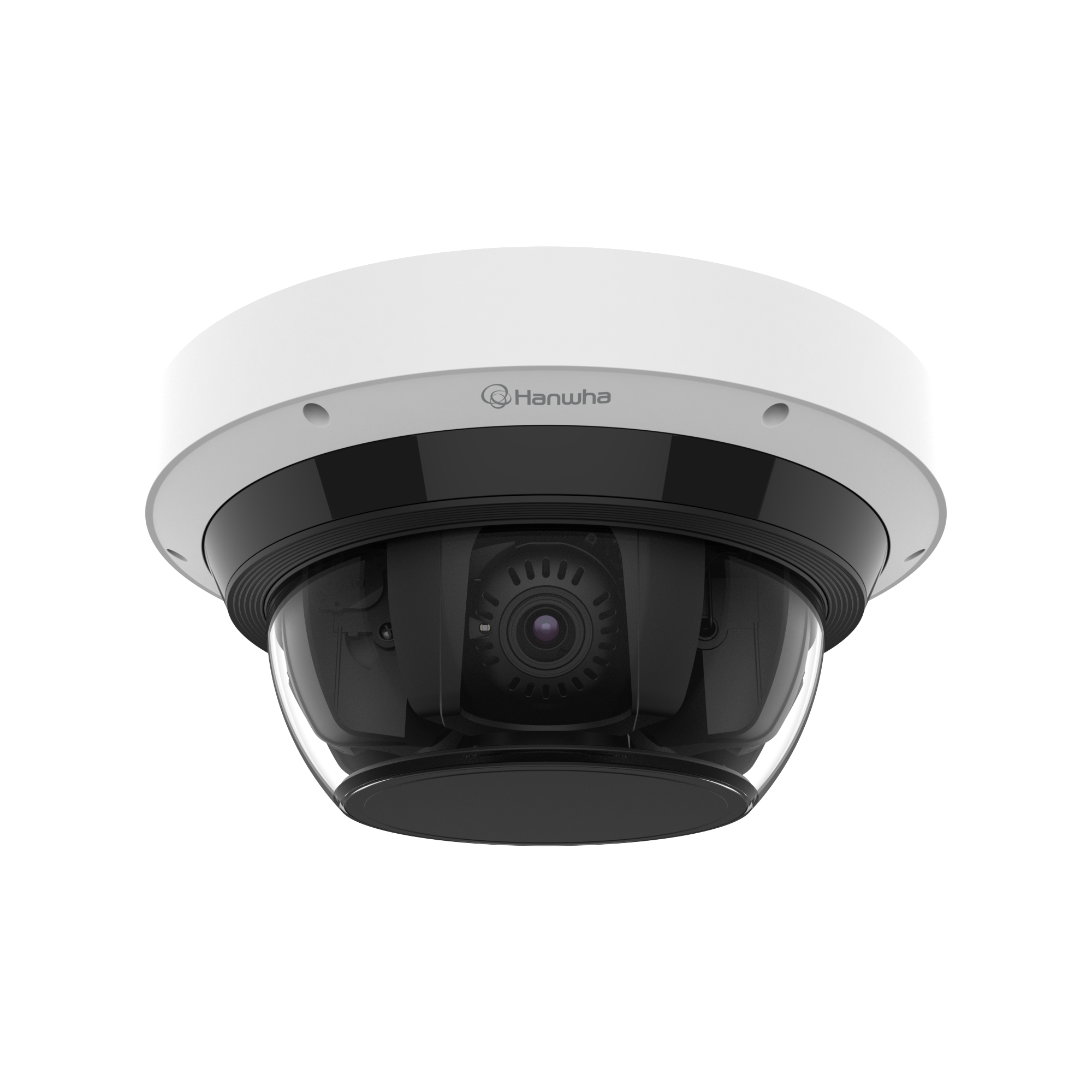

Hanwha PNM-C16083RQZ Panoramic camera, 4x4MP, Outdoor, IP66, IK10, IR up to 20m
Product variants
In stock
Buy now
+ Quote
  • 4x4MP Outdoor Panoramic Camera
  • Light sensitivity color 0.1lx mono 0.01lx, IR on 0lux
  • IR up to 20m

Description Hanwha PNM-C16083RQZ

  • Remote pan, tilt, rotate, and zoom (PTRZ) setup saves installation time
  • Offers 360° object detection and classification, powered by deep-learning AI, for identifying people, faces, vehicle types and licence plates in real time
  • Utilising AI-based object detection reduces false alarms, with irrelevant motion, such as waving trees and moving shadows, ignored
  • By leveraging AI for classification, relevant events can quickly be found to assist forensic search, improving operational efficiency. Colour attributes are supported for vehicle and person (upper, lower clothing) to bolster search capabilities
  • Exceptional image quality of up to 4K on the 4 fixed sensors offers a high level of detail for monitoring large and complex scenes
  • Cost-effective solution – multi-sensor cameras use less cable, conduit and mounting hardware, compared to what would normally be required to enable up to four separate cameras to do the same job. With less network connections, they also require fewer switches
  • Four independent IR zones make the camera highly effective in all lighting conditions
  • Hard-coated dome bubble provides reinforced durability to protect the camera

Key features:

  • 4MP x 4CH Multi-directional camera, using one IP address
  • Remotely set lens with Pan/Tilt/Rotate/Zoom (PTRZ)
  • Motorised varifocal lens
  • Integrated four independent IR zones that rotate with camera
  • Flip, Mirror, Hallway view(90°/270°) per channel
  • Lens Distortion Correction and 120dB WDR
  • AI-based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
  • AI Object detection (people/faces/vehicles/licence plates), virtual lines (passing/direction), virtual areas (loitering/intrusion/entering/exiting)
  • AI Attributes: Vehicles (Type: car/bus/truck/motorcycle/bicycle, colour), people (clothing colour)
  • BestShot support
  • micro SD card 512GB x2
  • Operating Temperature: -40°C~+55°C(-40°F~+131°F)
  • Hard-coated dome bubble
  • IP66, IK10, NEMA4X

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Specifications

Product
Model number PNM-C16083RQZ
GTIN code 8801089222152
Brand Hanwha
Category
IP Cameras
Panoramic
HS Code
852589
Weight
4400 grams
Size (lxwxh)
392 x 452 x 238 millimeters
Camera Properties
Outdoor
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Input/output
Audio support
RPTZ
Local Storage
Resolution
4K (8.3MP) or higher
Hanwha Series
Wisenet P
Power over Ethernet
60W
Angle of View
180° - 360°
Optical zoom
1-10x
Encoding
H264
H265
MJPEG
WiseStream
