Hanwha PNM-9322VQP

Hanwha Article code PNM-9322VQP
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

10MP to 22MP Multi-directional PTZ Camera, 32x Optical Zoom, Day / Night, Extreme WDR, IK10 Vandal Resistant

Successor

Would you like personal advice on alternatives?

Discontinued
+ Quote

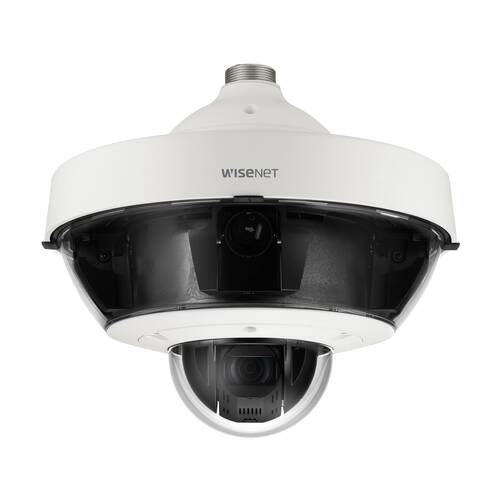

Description Hanwha PNM-9322VQP

Network vandal outdoor Multi-sensor Multi-Directional camera, (2MP/5MP X 4 sensors sold separately) 8MP ~ 20MP (2MP @ 60fps or 5MP @30fps) fixed focal lens modules + 2MP 32x optical zoom PTZ, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR @ 2MP or 120dB @ 5MP, defocus detection, built in analytics, 4x SD card, hallway view, HLC, fog detection, DIS(Gyro Sensor), Audio I/O (PTZ ch only), HPoE (injector included), IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F). White camera body. New easy installation cap. SFP port in injector.

Key Features:

  • Exchangeable 4ea x 2M / 5M lens modules
  • 8M to 20M resolution (depend on the combination of lens modules)
  • Max. 60fps@2M, Max. 30fps@5M (H.265 / H.264)
  • WDR 150dB with 2M, 120dB with 5M lens module
  • 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2M module)
  • 3.7mm, 4.6mm, 7mm fixed lens (5M module)
  • H.265, H.264, MJPEG codec,WiseStreamⅡ
  • IP66, IK10, SD / SDHC / SDXC memory 5 slots
  • 4.44~142.6mm(Optical 32x) lens, Day & Night (ICR)
  • New install base design

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf

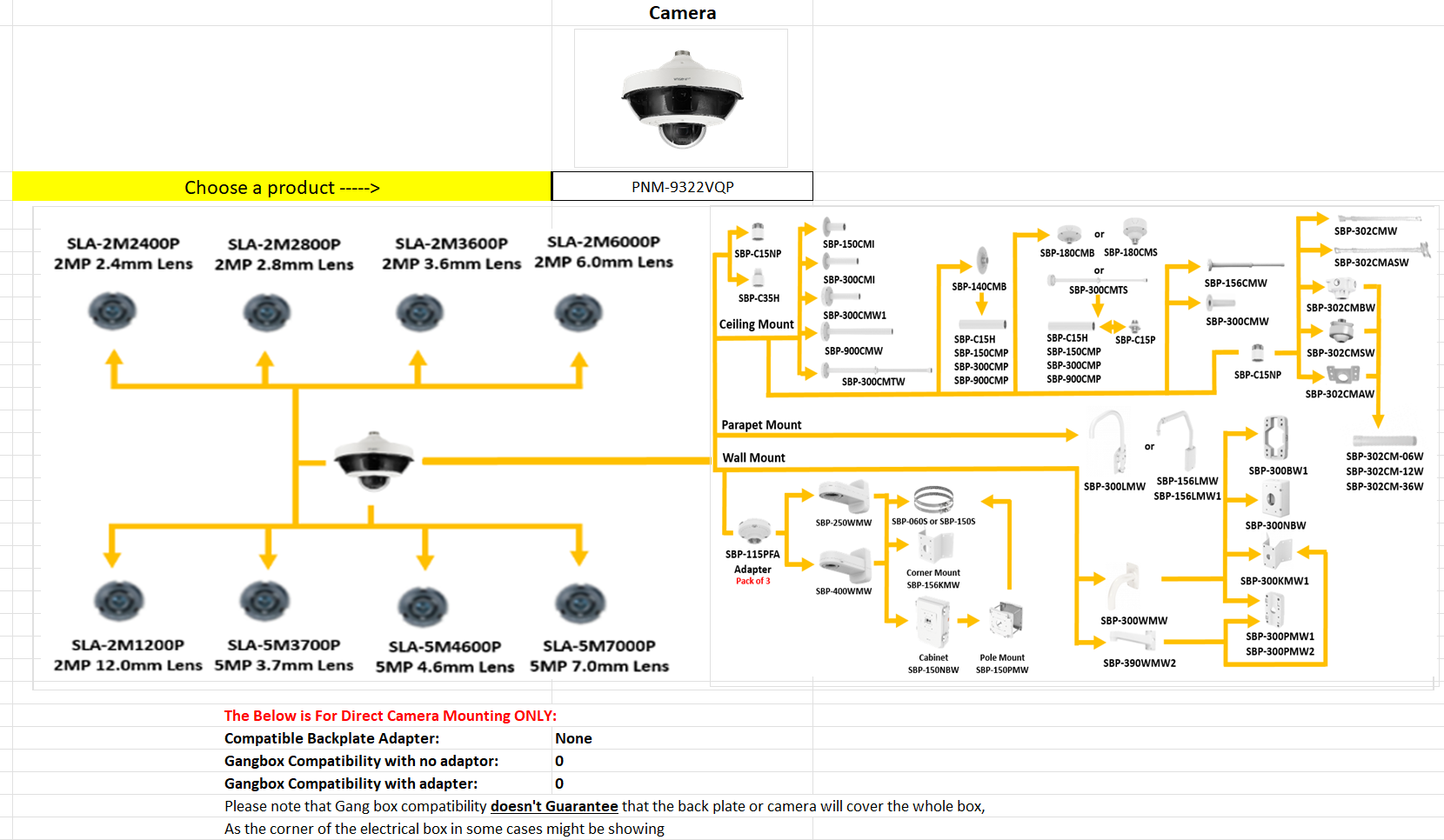

Mounting tools Download png

Specifications

Product
Model number PNM-9322VQP
GTIN code 8801089176615
Brand Hanwha
Category
IP Cameras
PTZ
HS Code
852589
Weight
7050 grams
Size (lxwxh)
542 x 542 x 378 millimeters
Camera Properties
Outdoor
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
4K (8.3MP) or higher
Software
Analytics
Hanwha Series
Wisenet P
Angle of View
180° - 360°
Optical zoom
28+
Encoding
H264
H265
MJPEG
