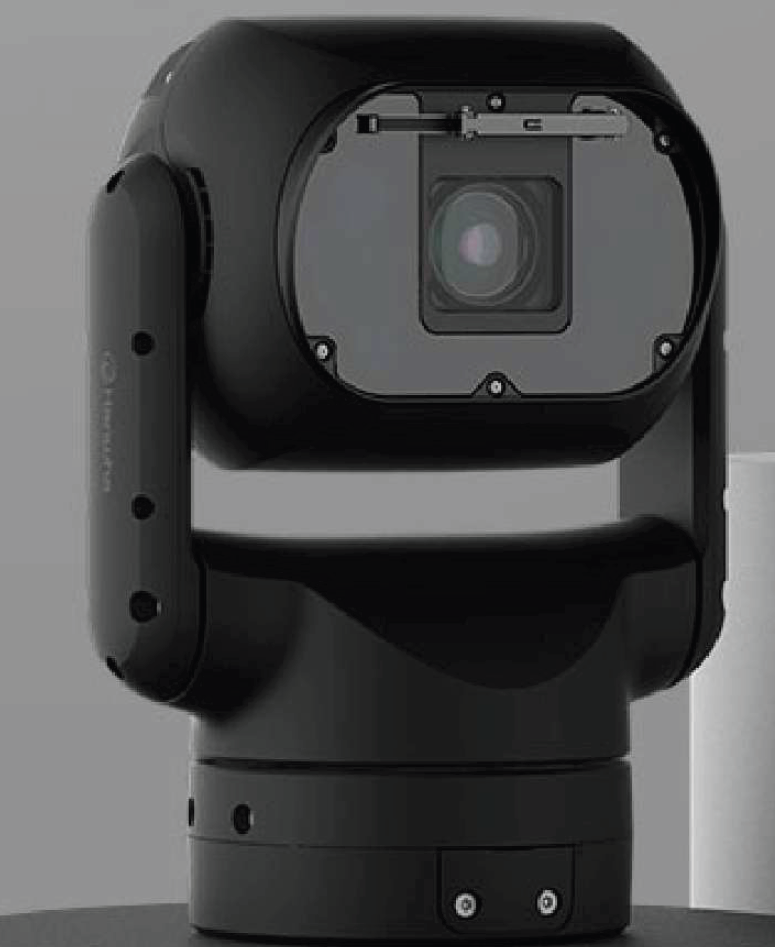

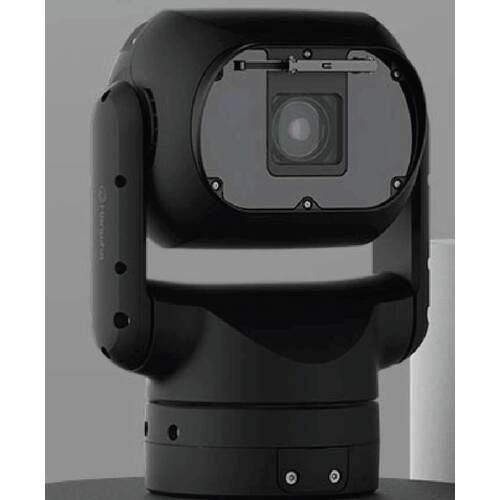

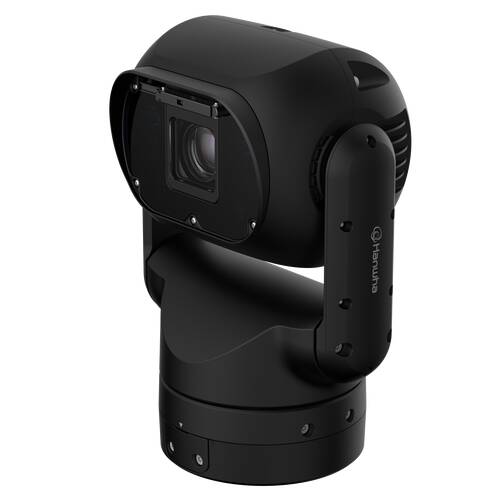

Hanwha TNP-A7430RWB
Hanwha
Article code TNP-A7430RWB
{{ fullProductName }}
Robust black 4 MP outdoor AI PTZ camera with 6.1–262.4 mm lens, 43x optical zoom, up to 60 fps, IR up to 500 m, 120 dB WDR and advanced AI analytics.
- Robust 4MP PTZ camera
- Zoom 62.5° - 1.72°
- Light sensitivity color 0.04 lux and B/W 0.004 lux
- IR up to 500 meters (1,640 ft )
Description Hanwha TNP-A7430RWB
4MP AI PTZ camera
• Up to 4 MP (43x)
• Supports optical image stabilization
• IP66, IP68, NEMA4X
• NEMA TS-2 (2.2.7.2-8, 2.2.8, 2.2.9)
• IR visibility range of 500 m
• Maximum wind load of 160 mph
• Operating temperature: -50 to 60°C
• AI-powered event analysis: object detection (people/face/vehicle/license plate), IVA (virtual line/area, entrance/exit, loitering, direction, intrusion), slip and fall detection, motion detection
• Supports BestShot and full features
• Supports dynamic privacy masking
• extremeWDR, WiseNRⅡ (AI-powered), WiseStream (AI-powered)
• Supports Wisepower (energy monitoring, ECO mode)
• Device certification (Hanwha Vision Root CA), Secure Storage (FIPS 140-3 Level 3/CC EAL6+ Certified Secure Element), SBOM
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
Video
Specifications
Product
| Model number | TNP-A7430RWB |
| Brand | Hanwha |
| Category |
IP Cameras
PTZ
|
| Weight |
10500 grams
|
| Size (lxwxh) |
445
x 535 x 470 millimeters
|
|
Camera Properties
|
Outdoor
Built-in infrared
Vandal resistant
|
|
Basic Functionality
|
Day and night
Local Storage
|
|
Resolution
|
4MP
|
|
Software
|
Analytics
|
|
Power over Ethernet
|
90W
|
|
Angle of View
|
61° - 90°
|
|
Optical zoom
|
28+
|
|
Encoding
|
H264
H265
MJPEG
WiseStream
|
| Date published | 11/21/2025 |
