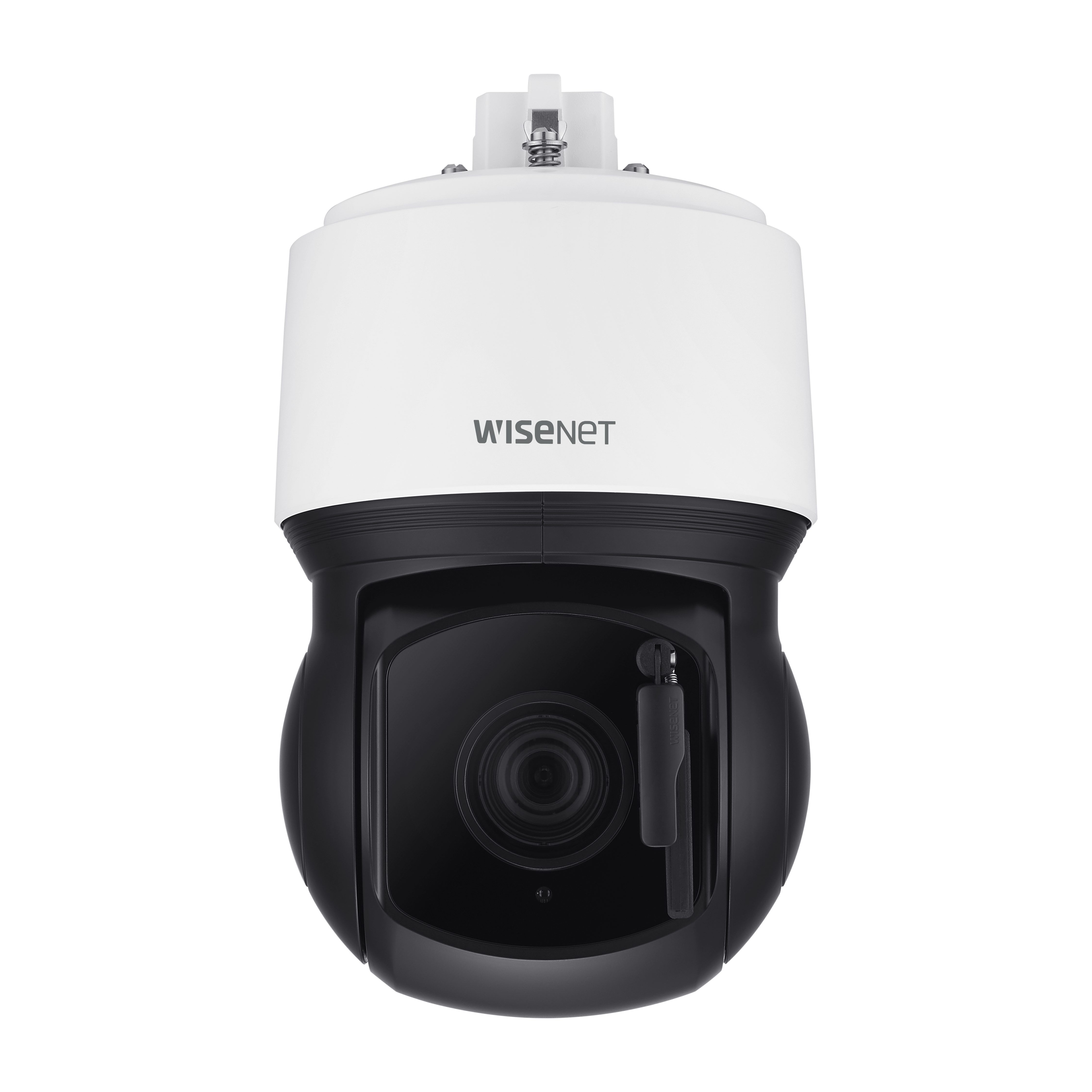

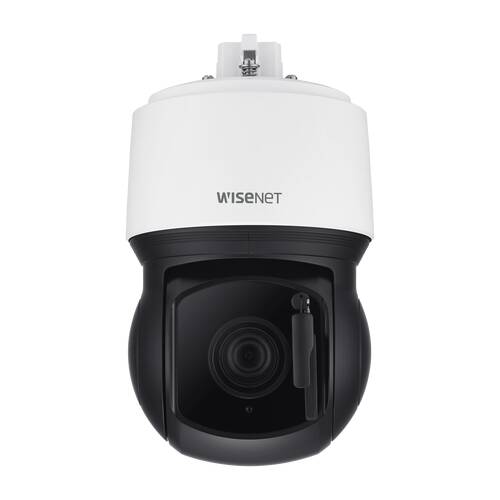

Hanwha XNP-6400RW

Hanwha Article code XNP-6400RW

NetcamCenter {{ fullProductName }}

2MP Network IR PTZ Camera, 40x Optical Zoom, Day / Night, Extreme 150dB WDR, Vandal Resistant
In stock
Buy now
+ Quote
  • 2MP Network IR PTZ Camera
  • Light sensitivity colour: 0.05 Lux

Description Hanwha XNP-6400RW

The XNP-6400RW PTZ PLUS features our Wisenet 7 chipset, to deliver a 2MP resolution 40X optical zoom camera. Featuring increased look up tilt range, 360° endless pan, wiper, and IR illumination, in a new compact, lightweight form factor for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology, extreme WDR, advanced video analytics and sound classification (I/O box required for audio detection/classification), true D/N, dual SD card slots, DIS (Gyro), HPoE, IP66/IK10, temperature range from -40°F ~ +131°F.

The high power IR illuminators allow for monitoring in complete darkness up to 200 meters away in crisp detail with the 40x optical zoom lens.. Optional mounting accessories required.

Key Features:

  • Max. 2MP resolution
  • 4.25~170mm (40x) zoom (digital 32x, total 1280x zoom)
  • Max. IR viewable length 200m
  • Day & night (ICR), extreme WDR, DIS (Built-in gyro sensor)
  • Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
  • H.264, H.265, MJPEG codec, WiseStreamII
  • IP66, IK10, NEMA4X
  • PTZ PLUS Design applied (Compact, Lighter, Simple cabling)

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

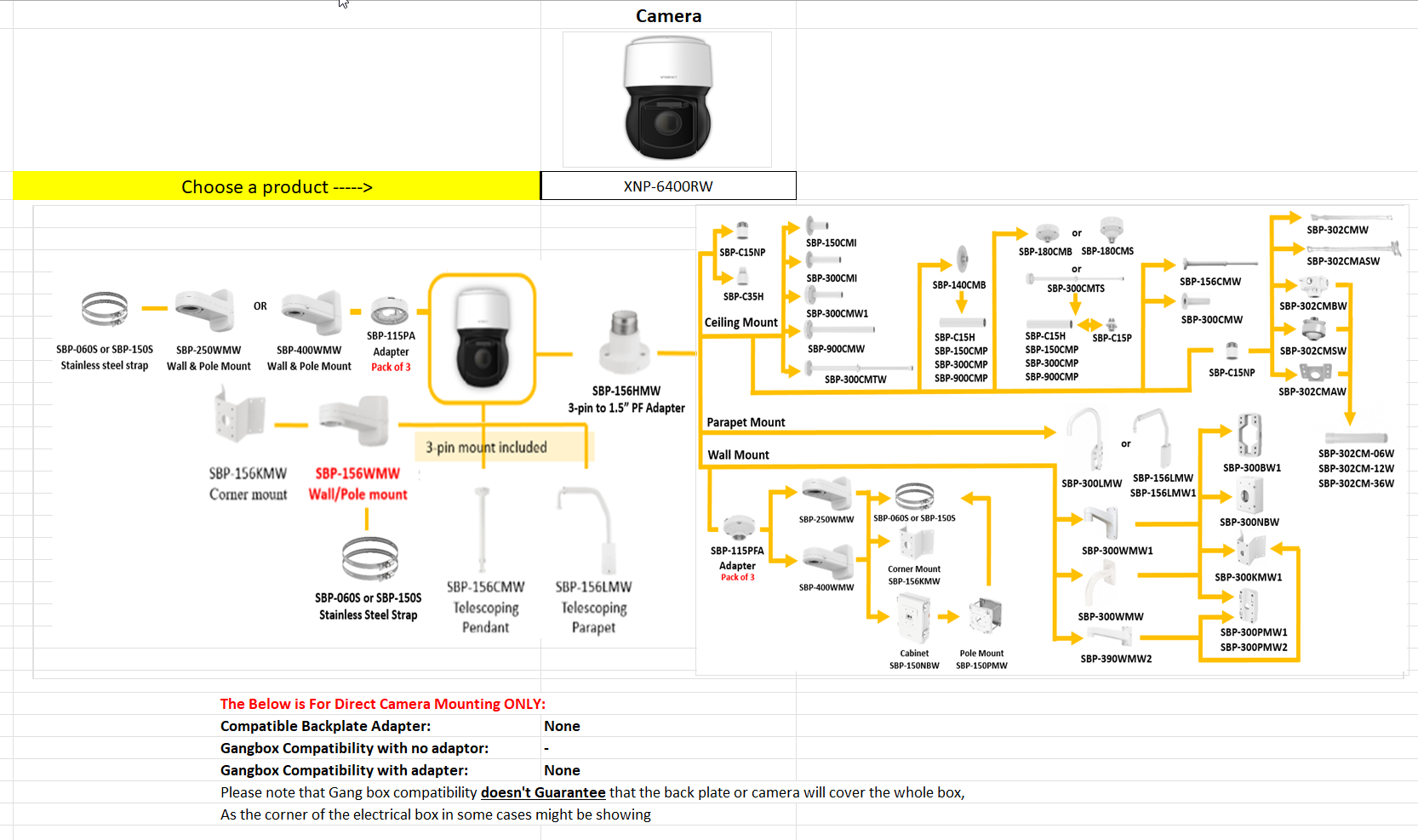

Mounting tools Download png

Video

Specifications

Product
Model number XNP-6400RW
GTIN code 8801089192073
Brand Hanwha
Category
IP Cameras
PTZ
HS Code
852589
Country of origin
Vietnam
Weight
5400 grams
Size (lxwxh)
235 x 248 x 443 millimeters
Camera Properties
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
1080p (2MP)
Software
Analytics
Hanwha Series
Wisenet X Plus
Angle of View
180° - 360°
Optical zoom
28+
Encoding
H264
H265
MJPEG
