Hanwha PNM-C32083RQZ
Hanwha
Article code PNM-C32083RQZ

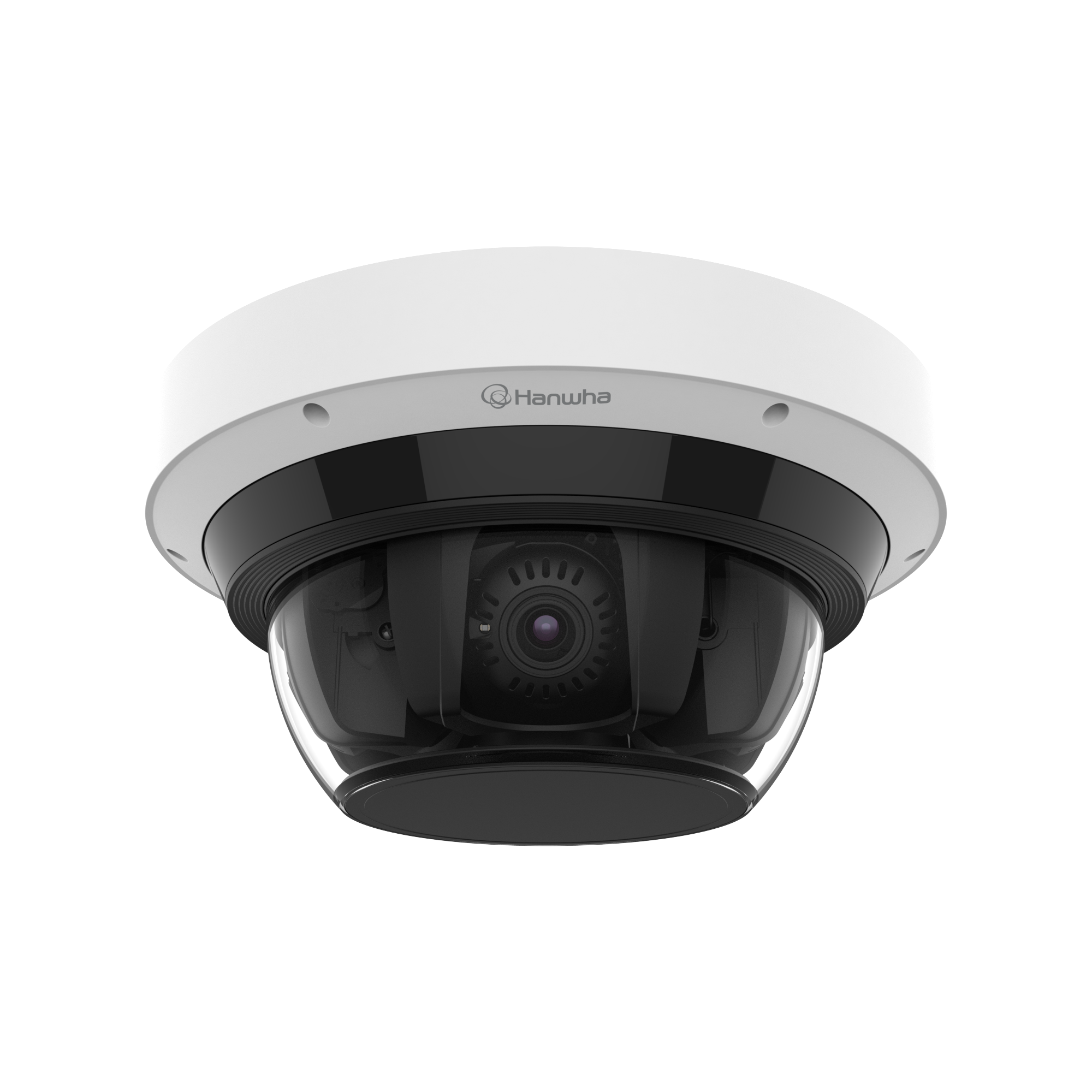

Hanwha PNM-C32083RQZ Panoramic camera, 4x8MP, Outdoor, IP66, IK10, IR up to 25m
- 4x8MP Outdoor Panoramic Camera
- Light sensitivity color: 0.07lx BW: 0lux (IR on)
- IR up to 25m
Description Hanwha PNM-C32083RQZ
- Remote pan, tilt, rotate, and zoom (PTRZ) setup saves installation time
- Offers 360° object detection and classification, powered by deep-learning AI, for identifying people, faces, vehicle types and licence plates in real time
- Utilising AI-based object detection reduces false alarms, with irrelevant motion, such as waving trees and moving shadows, ignored
- By leveraging AI for classification, relevant events can quickly be found to assist forensic search, improving operational efficiency. Colour attributes are supported for vehicle and person (upper, lower clothing) to bolster search capabilities
- Exceptional image quality of up to 4K on the 4 fixed sensors offers a high level of detail for monitoring large and complex scenes
- Cost-effective solution – multi-sensor cameras use less cable, conduit and mounting hardware, compared to what would normally be required to enable up to four separate cameras to do the same job. With less network connections, they also require fewer switches
- Four independent IR zones make the camera highly effective in all lighting conditions
- Hard-coated dome bubble provides reinforced durability to protect the camera
Key features:
- 8MP x 4CH Multi-directional camera, using one IP address
- Remotely set lens with Pan/Tilt/Rotate/Zoom (PTRZ)
- Motorised varifocal lens
- Integrated four independent IR zones that rotate with camera
- Flip, Mirror, Hallway view(90°/270°) per channel
- Lens Distortion Correction and 120dB WDR
- AI-based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
- AI Object detection (people/faces/vehicles/licence plates), virtual lines (passing/direction), virtual areas (loitering/intrusion/entering/exiting)
- AI Attributes: Vehicles (Type: car/bus/truck/motorcycle/bicycle, colour), people (clothing colour)
- BestShot support
- micro SD card 512GB x2
- Operating Temperature: -40°C~+55°C(-40°F~+131°F)
- Hard-coated dome bubble
- IP66, IK10, NEMA4X
Downloads
Datasheet | Download |
User manual | Download |
Installation manual | Download |
Product dimensions | Download |
Specifications
Product
Model number | PNM-C32083RQZ |
GTIN code | 8801089222053 |
Brand | Hanwha |
Category |
IP Cameras
Panoramic
|
HS Code |
852589
|
Weight |
4400 grams
|
Size (lxwxh) |
392
x 452 x 238 millimeters
|
Camera Properties
|
Outdoor
Built-in infrared
Vandal resistant
|
Basic Functionality
|
Day and night
Input/output
Audio support
RPTZ
Local Storage
|
Resolution
|
4K (8.3MP) or higher
|
Hanwha Series
|
Wisenet P
|
Power over Ethernet
|
60W
|
Angle of View
|
180° - 360°
|
Optical zoom
|
1-10x
|
Encoding
|
H264
H265
MJPEG
WiseStream
|
