Hanwha XNP-8250R

Hanwha Article code XNP-8250R
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

6MP Network PTZ Camera, Built-in Infrared, Day/Night, 25x Optical zoom, Extreme 120dB WDR, IK10 Vandalism Resistant

Successor

Would you like personal advice on alternatives?

Discontinued
+ Quote

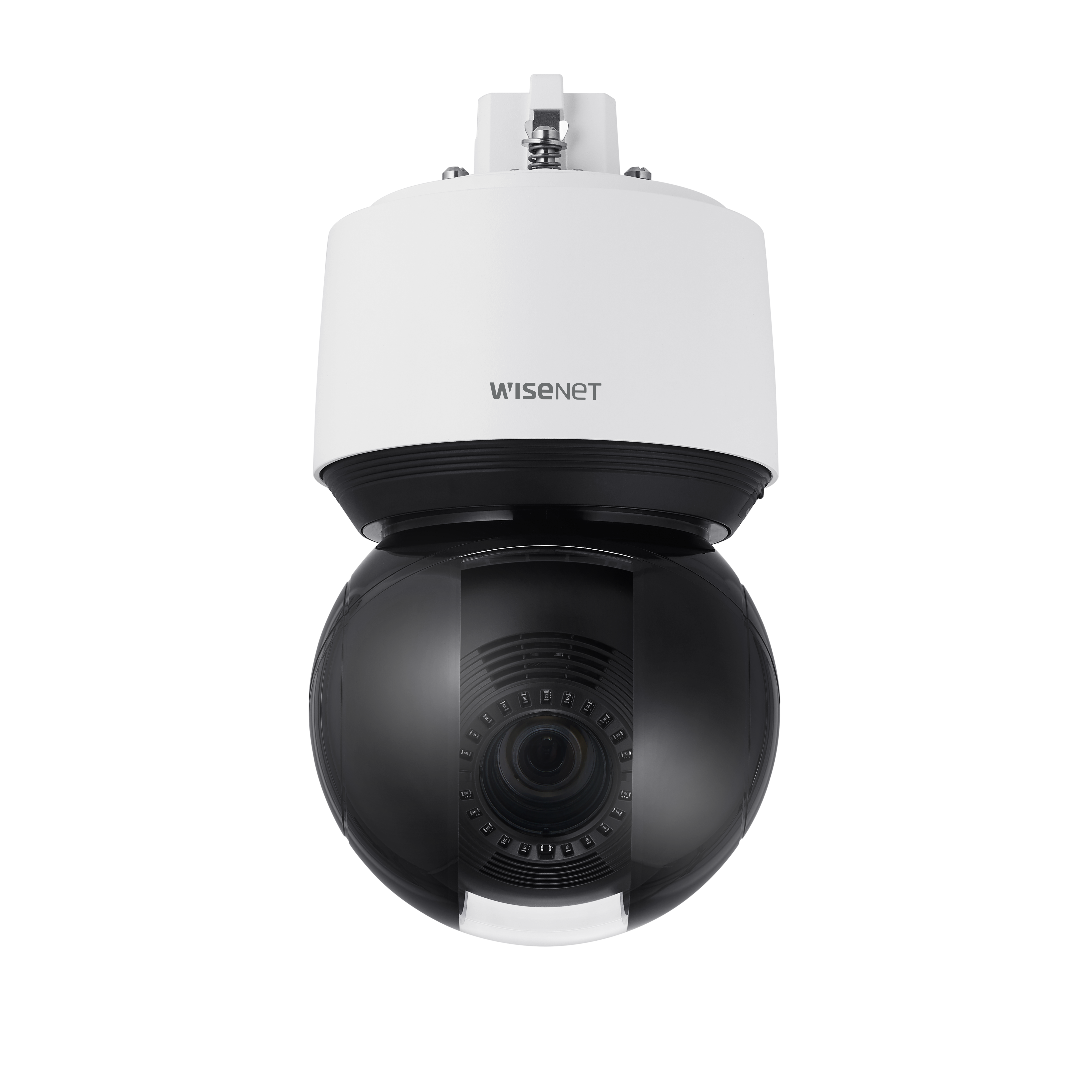

Description Hanwha XNP-8250R

The XNP-8250R PTZ PLUS features our Wisenet 7 chipset, to deliver a 6MP resolution 25X optical zoom camera. Featuring increased look-up tilt range, 360° endless pan, and IR illumination, in a new compact, lightweight form factor for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology, extreme WDR, advanced video analytics and sound classification (I/O box required for audio detection/classification), true D/N, dual SD card slots, DIS (Gyro), HPoE, IP66/IK10, temperature range from -40°F ~ +131°F.

The high-power IR illuminators allow for monitoring in complete darkness up to 200 meters away in crisp detail with the 25x optical zoom lens. Optional mount accessories required.

Key Features:

  • Max. 6MP resolution
  • 5~125mm (25x) optical zoom (digital 32x, total 800x zoom)
  • Max. IR viewable length 200m (Wise IR)
  • Day & Night (ICR), extreme WDR (120dB), DIS (Built-in gyro sensor)
  • Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
  • H.264, H.265, MJPEG codec, WiseStreamII
  • IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
  • PTZ PLUS Design applied (Compact, Lighter, Simple cabling)

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

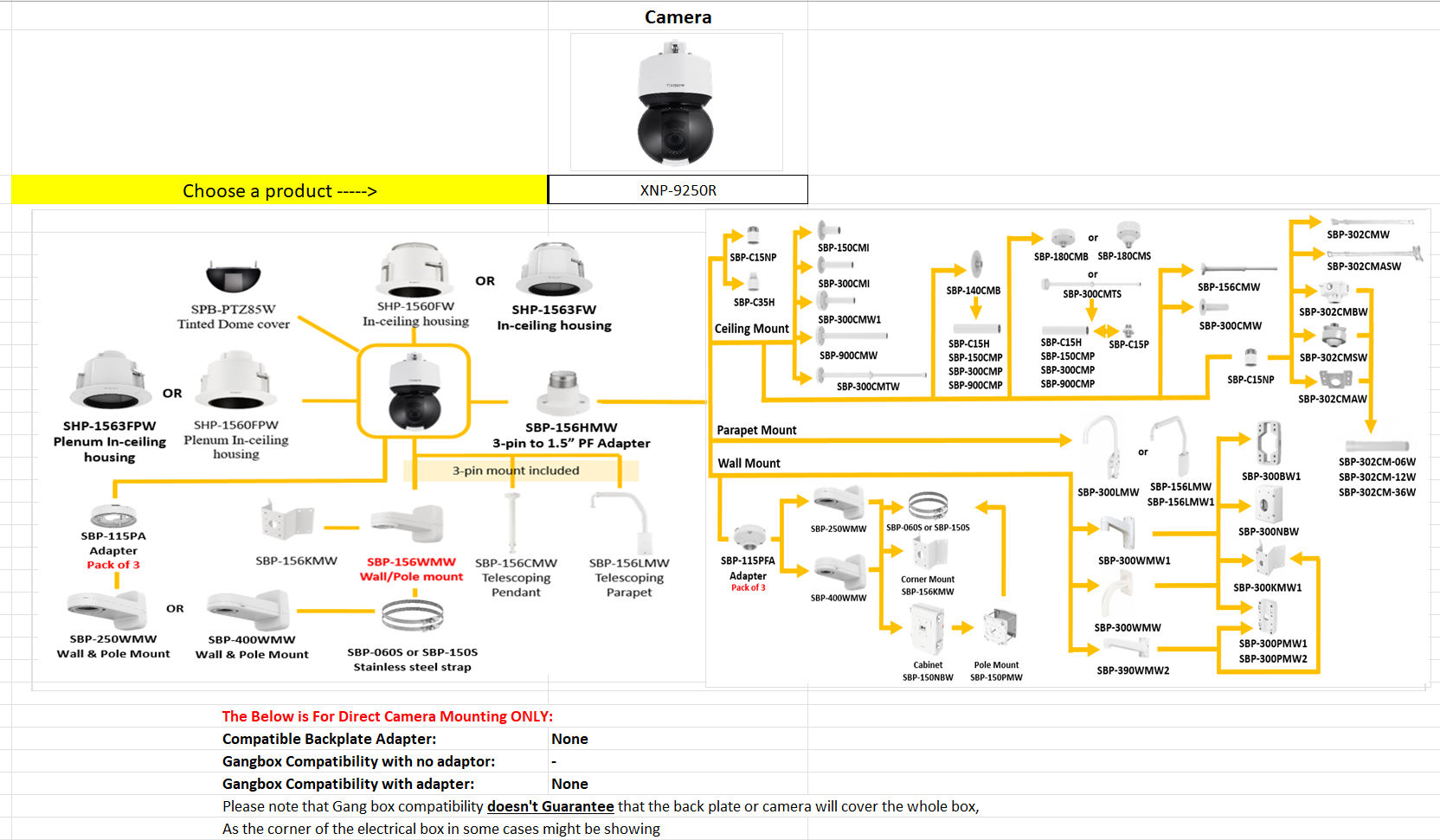

Mounting tools Download png

Video

Specifications

Product
Model number XNP-8250R
GTIN code 8801089200082
Brand Hanwha
Category
IP Cameras
PTZ
HS Code
852589
Country of origin
Vietnam
Weight
3200 grams
Size (lxwxh)
219 x 279 x 348 millimeters
Camera Properties
Outdoor
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
5MP - 7MP
Software
Analytics
Hanwha Series
Wisenet X Plus
Angle of View
180° - 360°
Optical zoom
18-27x
Encoding
H264
H265
MJPEG
