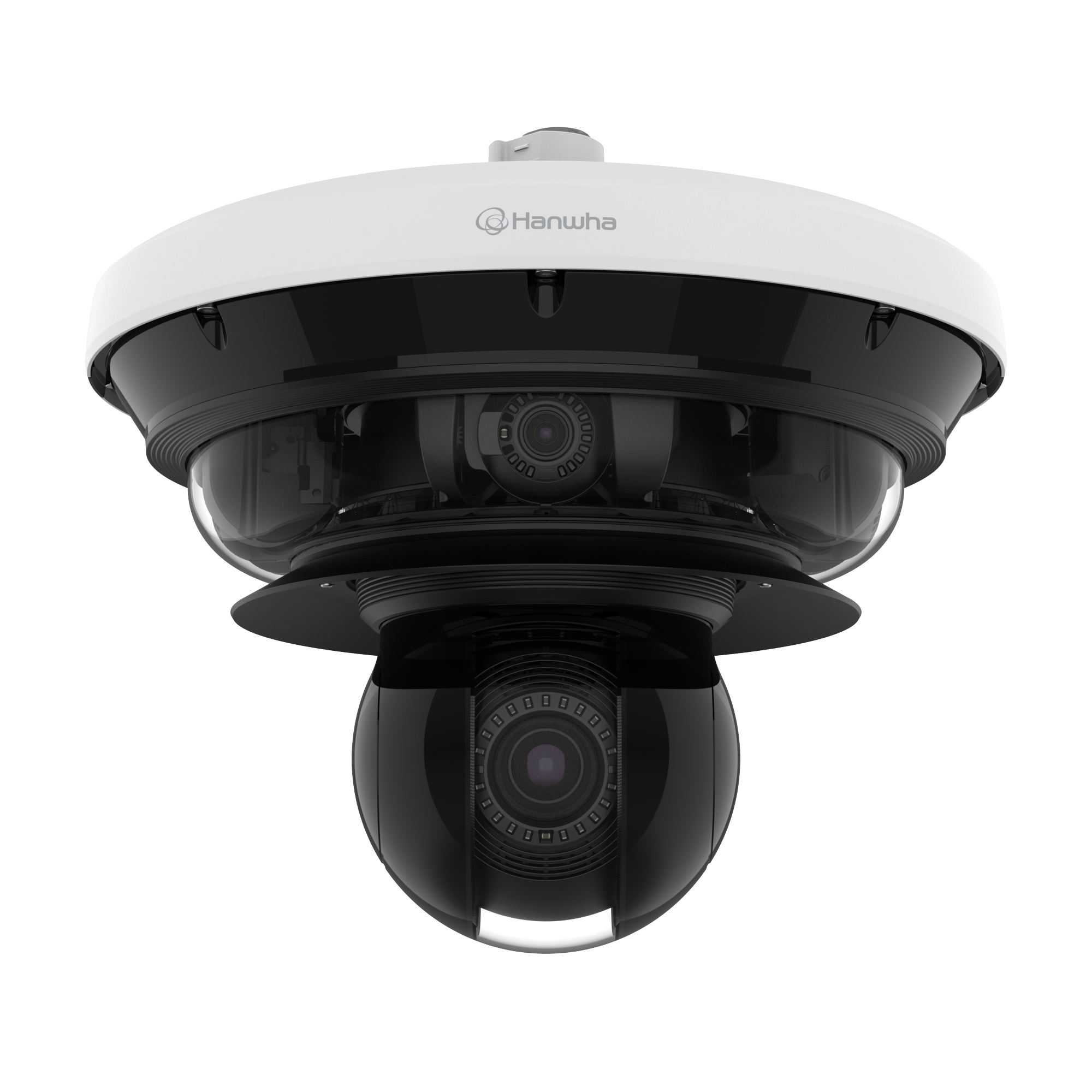

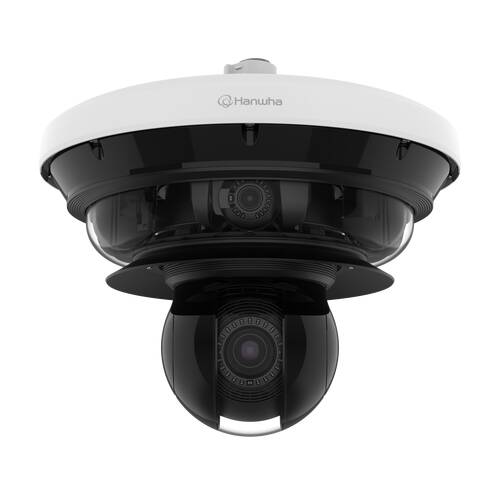

Hanwha PNM-C34404RQPZ

Key Benefits:

• The 5CH AI Multi-directional camera provides 360° object detection and classification, powered by deep-learning AI, for identifying people, faces, vehicle types and licence plates in real time
• Utilising AI-based object detection reduces false alarms, with irrelevant motion, such as waving trees and moving shadows, ignored
• Exceptional image quality of up to 4K on the 4 fixed sensors and 2MP 40x on the PTZ offers a high level of detail for monitoring large and complex scenes
• By leveraging AI for classification, relevant events can quickly be found to assist forensic search, improving operational efficiency
• Full suite of intruder detection video analytics, including virtual line and area crossing, to keep areas safe and free from trespassing
• Cost-effective solution – multi-sensor cameras use less cable, conduit and mounting hardware, compared to what would normally be required to enable up to 5 separate cameras to do the same job. With less network connections, they also require fewer switches
• Reduced installation time – only 1 device needs to be installed instead of many separate devices, 1 VMS license and 1 cable connection. In addition, the PTRZ function simplifies installation, and after mounting the camera all adjustments can be done remotely
• Quick, easy and intuitive installation via a smart semi-modular design that has a microSD card and reset button accessible by removing the dome cover
• 4 independent IR zones make the camera highly effective in all lighting conditions
• Hard-coated dome bubble provides reinforced durability to protect the camera

Key Features:

• 120dB WDR
• 44~142.6mm (Optical 40x) lens
• PTZ Auto Tracking, SmartZoom to Preset / IVA Trigger
• 4-Channels @ 4K/8MP with motorized PTRZ for easy installation and remote adjustment of the entire FoV, 3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°)
• 15FPS AI ON, 20FPS AI OFF
• 2MP @ 60FPS PTZ with 40x zoom
• IR viewable [4CH] length 20m (65ft) / [PTZ] WiseIR 200m (656ft)
• 265, H.264, MJPEG triple codec
• Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear
• WiseNR Ⅱ (using AI engine), WiseStreamⅢ (Based on AI engine)
• I/O Box compatibility
• TPM with FIPS 140-2 level 2
• micro SD card 512GB x2
• IP66, IK10, NEMA4X
• Operating Temperature: -40°C~+50°C(-40°F~+122°F)
• HPoE (injector included)
• Hard-coated dome bubble
