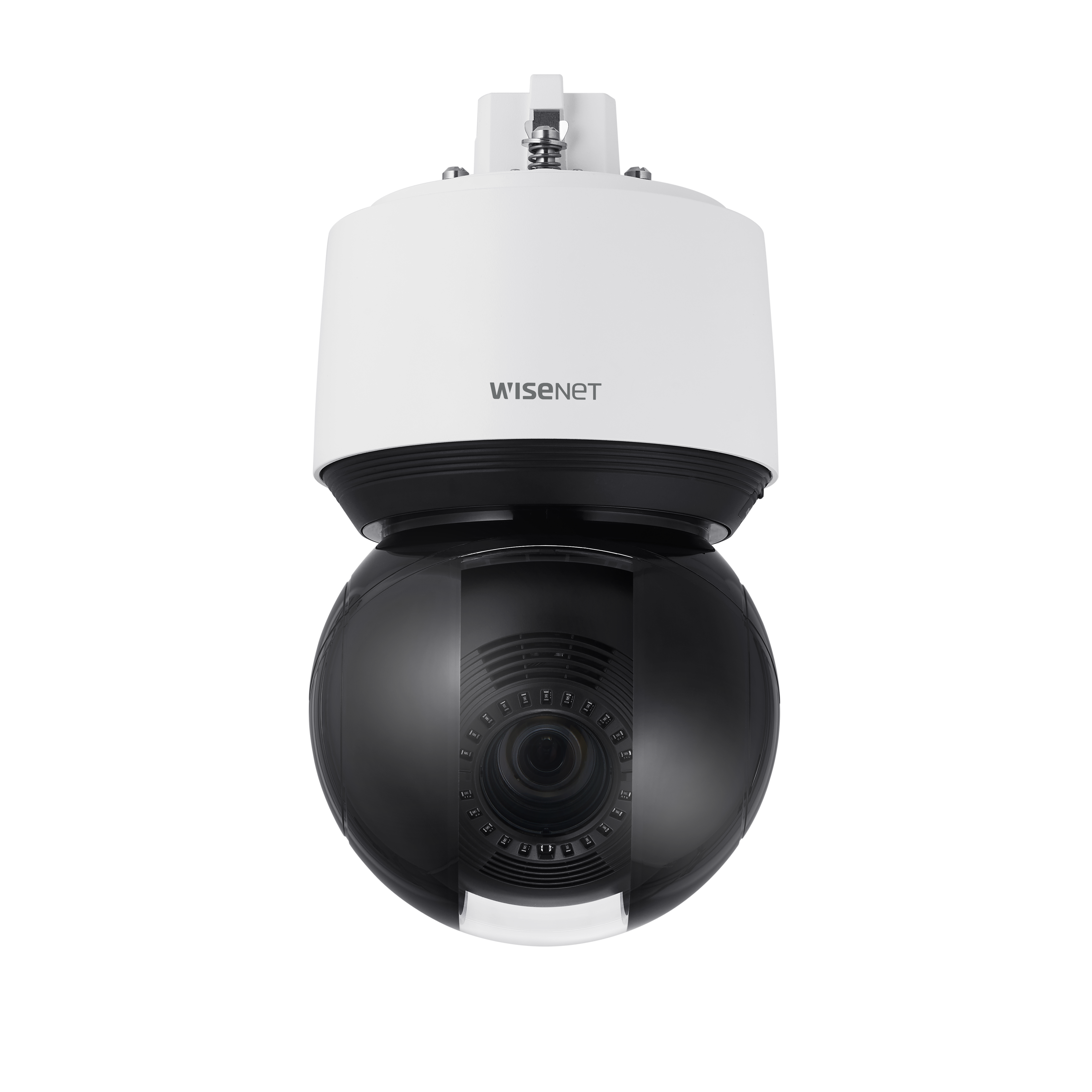

Hanwha XNP-6400R

- Outdoor PTZ 2MP
- 40x zoom lens 65.66° - 1.88°
- Light sensitivity colour: 0.05 Lux, BW: 0Lux(IR LED On)
- IR up to 200m
Description Hanwha XNP-6400R
The XNP-6400R PTZ PLUS features our Wisenet 7 chipset, to deliver a 2MP resolution 40X optical zoom camera. Featuring increased look up tilt range, 360° endless pan, and IR illumination, in a new compact, lightweight form factor for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology, extreme WDR, advanced video analytics and sound classification (I/O box required for audio detection/classification), true D/N, dual SD card slots, DIS (Gyro), HPoE, IP66/IK10, temperature range from -40°F ~ +131°F.
The high-power IR illuminators allow for monitoring in complete darkness up to 200 meters away in crisp detail with the 40x optical zoom lens. Optional mounting accessories required.
Key Features:
- Max. 2MP resolution
- 4.25~170mm (40x) zoom (digital 32x, total 1280x zoom)
- Max. IR viewable length 200m (656.17ft), Wise IR
- Day & Night (ICR), extreme WDR, DIS(Built-in gyro sensor)
- Intelligent analytics, Object auto tracking (Person/Vehicle), Target lock tracking
- H.264, H.265, MJPEG codec, WiseStream II
- IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
- PTZ PLUS Design applied (Compact, Lighter, Simple cabling)
Downloads
Datasheet | Download |
User manual | Download |
Installation manual | Download |
Product dimensions | Download |
Mounting tools | Download |
Video
Specifications
Model number | XNP-6400R |
GTIN code | 8801089183972 |
Brand | Hanwha |
Category |
IP Cameras
PTZ
|
HS Code |
852589
|
Country of origin |
Vietnam
|
Weight |
3200 grams
|
Size (lxwxh) |
219
x 279 x 348 millimeters
|
Camera Properties
|
Outdoor
Built-in infrared
Vandal resistant
|
Basic Functionality
|
Day and night
Local Storage
|
Resolution
|
1080p (2MP)
|
Software
|
Analytics
|
Hanwha Series
|
Wisenet X Plus
|
Angle of View
|
180° - 360°
|
Encoding
|
H264
H265
MJPEG
|
