Hanwha XNP-C8303RW

Hanwha Article code XNP-C8303RW

NetcamCenter {{ fullProductName }}

6MP 30x IR AI PTZ Outdoor camera with built-in wiper, lens 5-150 mm (30×) zoom, 30 fps, dag/nacht, extreme WDR, IK10 vandalismebestendig
In stock
Buy now
+ Quote
  • Outdoor PTZ 6MP
  • 30x zoomlens 57,42° - 2,19°
  • light sensitivity color 0.1lux, B/W 0lux (IR LED On)
  • IR up to 200m
  • Built-in wiper

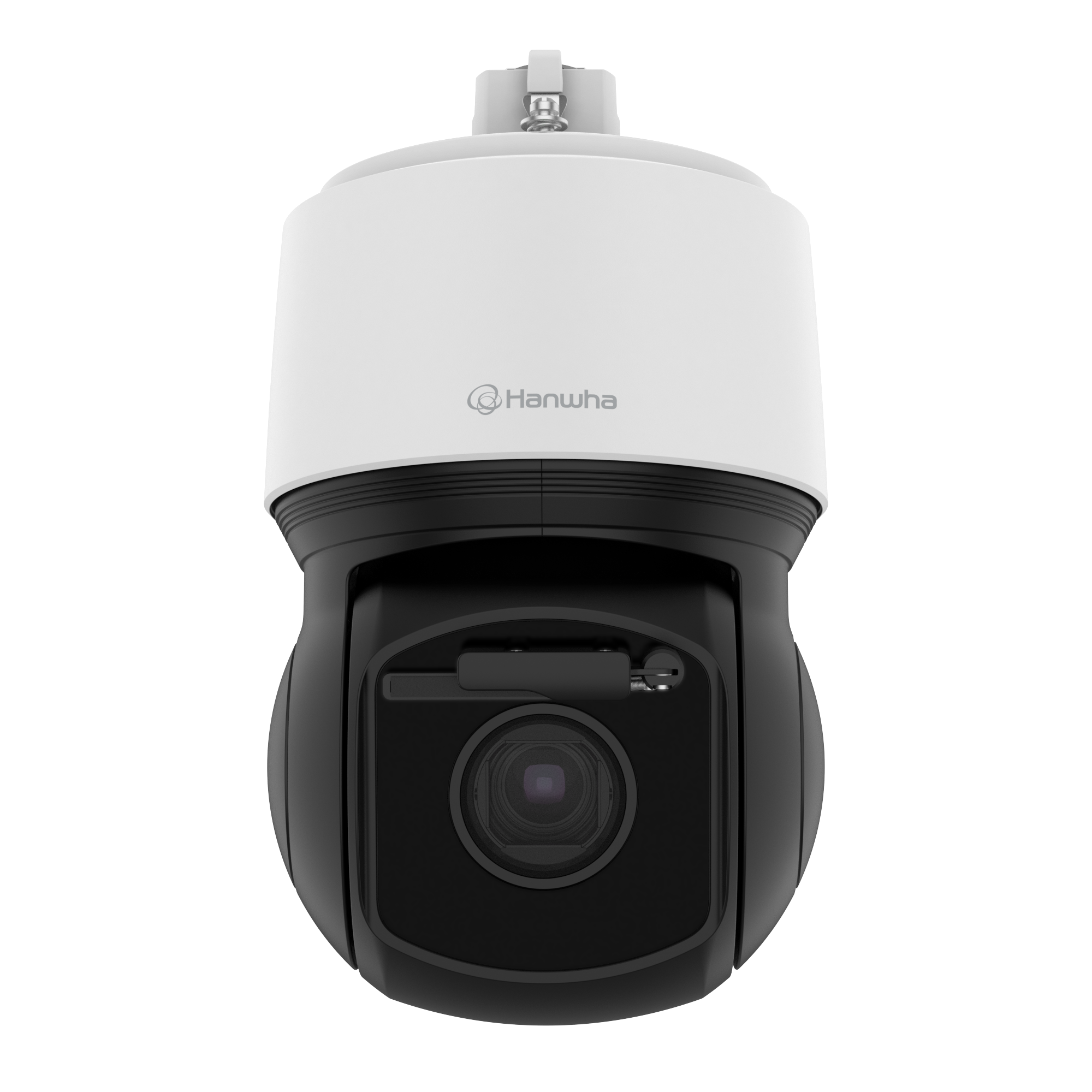

Description Hanwha XNP-C8303RW

X series powered by Wisenet 7 network outdoor IR AI PTZ camera, 6MP @30fps, 25x Optical Zoom Lens (5 ~ 150mm) (57.42º ~ 2.19º), 360° Endless Pan range, 350°/sec Pan speed, Tilt: -20° ~ 90°, triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, extreme WDR (120dB), True Day & Night (ICR), Viewable IR length 200m, Analystics events based on AI engine, Defocust / Motion / Fog / Shock detection, Tampering, Virtual area, Classified object (Person/Face/Vehicle/License plate), Attributes (Vehicle type), Object auto tracking(Person/Vehicle), Target lock tracking, Digital Image Stabilization with Built-in Gyro sensor, 2x Micro SD/SDHC/SDXC slots up to 1TB, IP66, IK10, NEMA4X, NEMA-TS2, HPoE, Built-in wiper

* Alarm outputs, Audio detection, Sound classification(with NW I/O Box which can be purchased separately)

Key Features:

  • Max. 6MP resolution
  • 5~150mm(30x) zoom (digital 32x, total 960x zoom)
  • Day & Night (ICR), extreme WDR, DIS (Built-in gyro sensor)
  • Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
  • H.264, H.265, MJPEG codec, WiseStream II
  • IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
  • PTZ PLUS Design applied (Compact, Lighter, Simple cabling)
  • Built-in wiper

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf

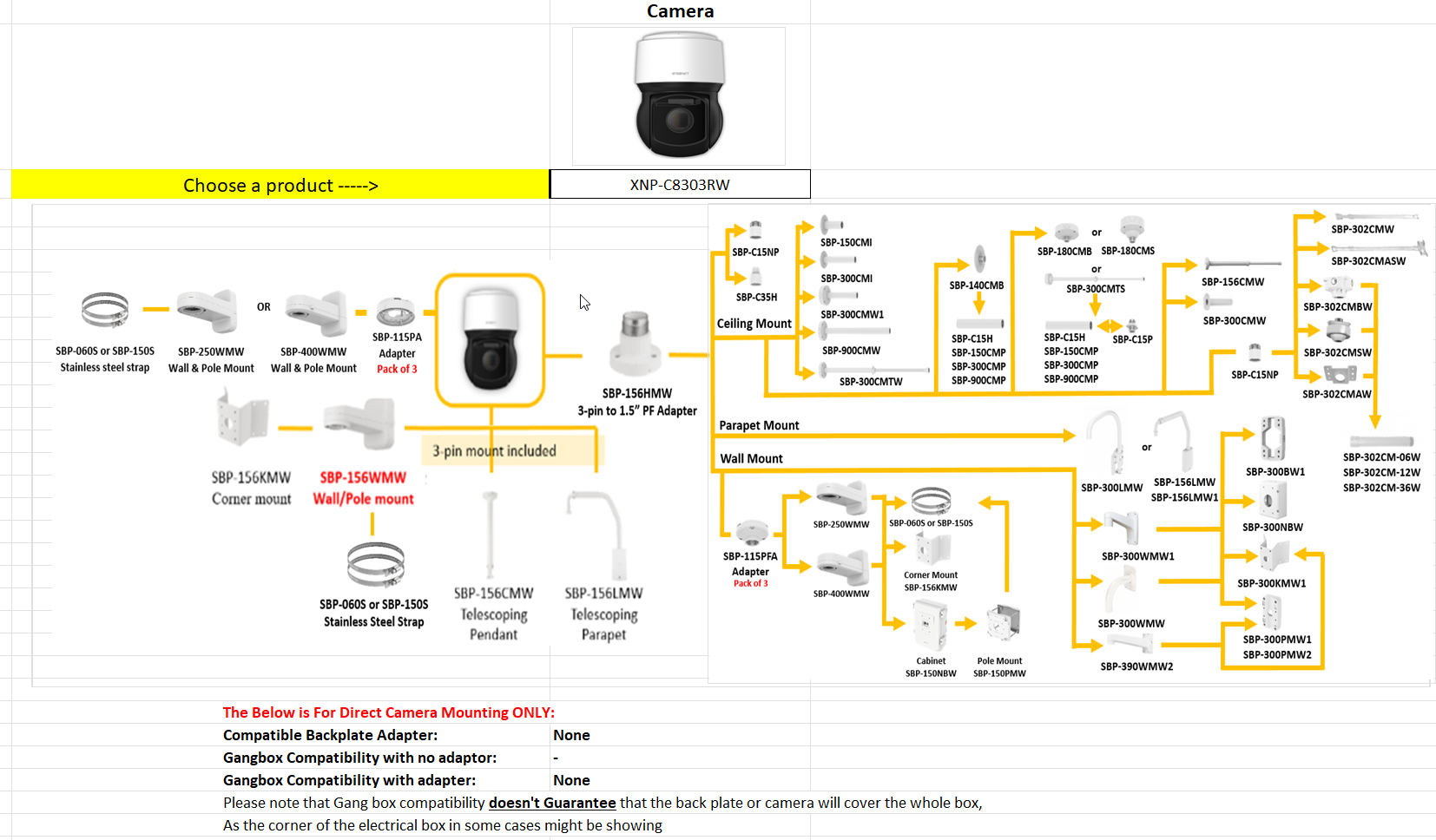

Mounting tool Download png

Video

Specifications

Product
Model number XNP-C8303RW
GTIN code 8801089224880
Brand Hanwha
Category
IP Cameras
PTZ
HS Code
852589
Country of origin
Vietnam
Weight
5600 grams
Size (lxwxh)
235 x 248 x 443 millimeters
Camera Properties
Outdoor
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
5MP - 7MP
Hanwha Series
Wisenet X
Angle of View
31° - 60°
Optical zoom
28+
Encoding
H264
H265
MJPEG
