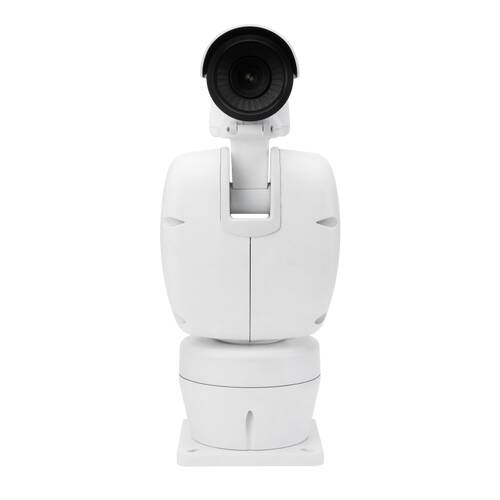

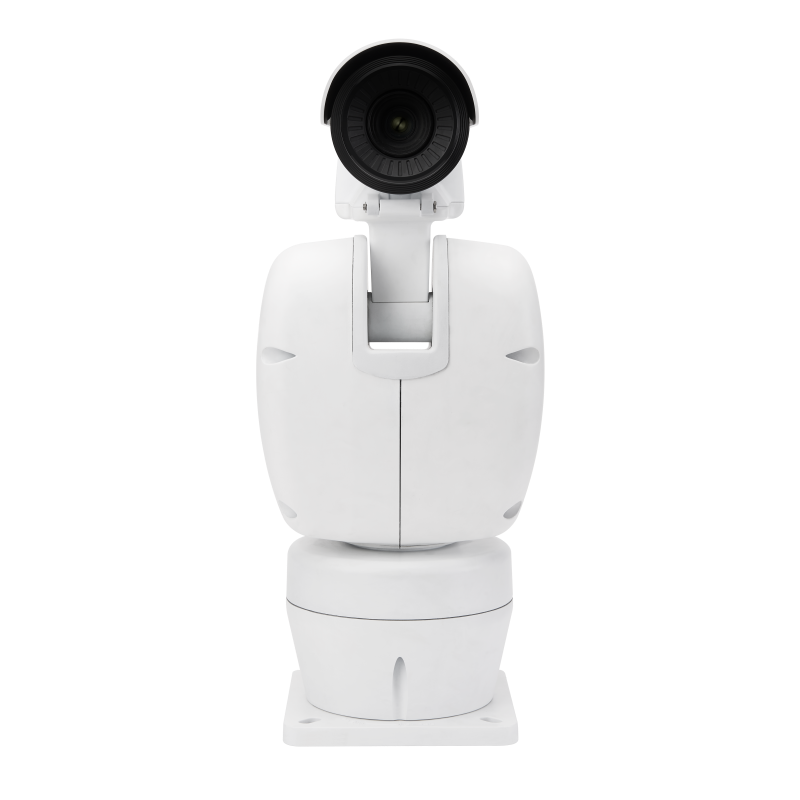

Hanwha TNU-4041T

Hanwha Article code TNU-4041T

NetcamCenter {{ fullProductName }}

Outdoor Thermal Camera, 19mm, 32°, 30fps, 640x480 Resolution
In stock
Buy now
+ Quote
  • 640x480 Resolution
  • 19mm lens with 32° angle of view

Description Hanwha TNU-4041T

T-series outdoor thermal network camera, VGA @30fps, 19mm fixed lens (32°), triple codec H.265/H.264/MJPEG with WiseStream II, multiple streaming, tamper, loitering, direction detection, audio detection, sound classification, Shock detection, temperature change detection, digital image stabilization with built-in gyro sensor, bidirectional audio and microSD/SDHC/SDXC slot, IP66, IK10, Nema 4X, 24VAC

Key features:

  • High resolution VGA resolution (640 x 480).
  • built-in 19mm fixed lens
  • 360⁰ endless pans
  • 30 fps at all resolutions (H.265, H.264, MJPEG)
  • H.265, H.264, MJPEG triple codec support
  • WiseStream II support
  • Tampering, Loitering, Directional/Virtual Fence Line Detection, Entry/Exit, (Dis)appearance, Audio Detection, Motion Detection, Sound Classification, Shock Detection, Temperature Change Detection
  • 2-way bi-directional audio and alarm I/O support
  • SD/SDHC/SDXC memory slot (maximum 256 GB)
  • Operating temperature -40⁰F ~ +140⁰F
  • 24V AC, 12V DC / IP66, NEMA4X, IK10

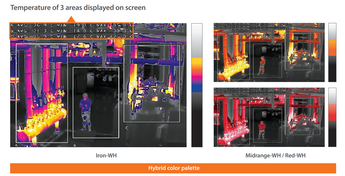

TNO series temperature displayed

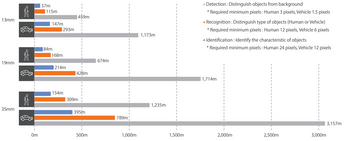

TNO series detection range

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Specifications

Product
Model number TNU-4041T
GTIN code 8801089148124
Brand Hanwha
Category
IP Cameras
Thermal
HS Code
852589
Weight
11700 grams
Size (lxwxh)
650 x 365 x 320 millimeters
Basic Functionality
Local Storage
Hanwha Series
Wisenet T
Angle of View
31° - 60°
Encoding
H264
H265
MJPEG
Thermal camera properties
Bullet
≥ 30 fps
