Hanwha XNP-C9253R

Hanwha Article code XNP-C9253R

NetcamCenter {{ fullProductName }}

8MP 25x AI IR PTZ Outdoor Camera, IR 200m Lens 5-125mm (25×) zoom, 30fps, Day/Night, Extreme WDR, IK10 Vandilismproof
In stock
Buy now
+ Quote
  • Outdoor PTZ 8MP
  • 25x zoom lens 57.42° - 2.71°
  • light sensitivity color 0.1Lux, BW: 0Lux(IR LED On)
  • IR up to 200m

Description Hanwha XNP-C9253R

X series powered by Wisenet 7 network outdoor IR AI PTZ camera, 8MP @30fps, 25x Optical Zoom Lens (5 ~ 125mm) (57.42º ~ 2.71º), 360° Endless Pan range, 700°/sec Pan speed, Tilt: -20° ~ 90°, triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, extreme WDR (120dB), True Day & Night (ICR), IR viewable length 200m, Analystics events based on AI engine, Defocust / Motion / Fog / Shock detection, Tampering, Virtual area, Classified object (Person/Face/Vehicle/License plate), Attributes (Vehicle type), Object auto tracking(Person/Vehicle), Target lock tracking, Digital Image Stabilization with Built-in Gyro sensor, 2x Micro SD/SDHC/SDXC slots up to 1TB, IP66, IK10, NEMA4X, NEMA-TS2, PoE+

* Alarm outputs, Audio detection, Sound classification(with NW I/O Box which can be purchased separately)

Key Features:

  • Max. 8MP resolution
  • 5~125mm(25x) zoom (digital 32x, total 800x zoom)
  • Day & Night (ICR), extreme WDR, DIS (Built-in gyro sensor)
  • Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
  • H.264, H.265, MJPEG codec, WiseStream II
  • IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
  • PTZ PLUS Design applied (Compact, Lighter, Simple cabling)

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf

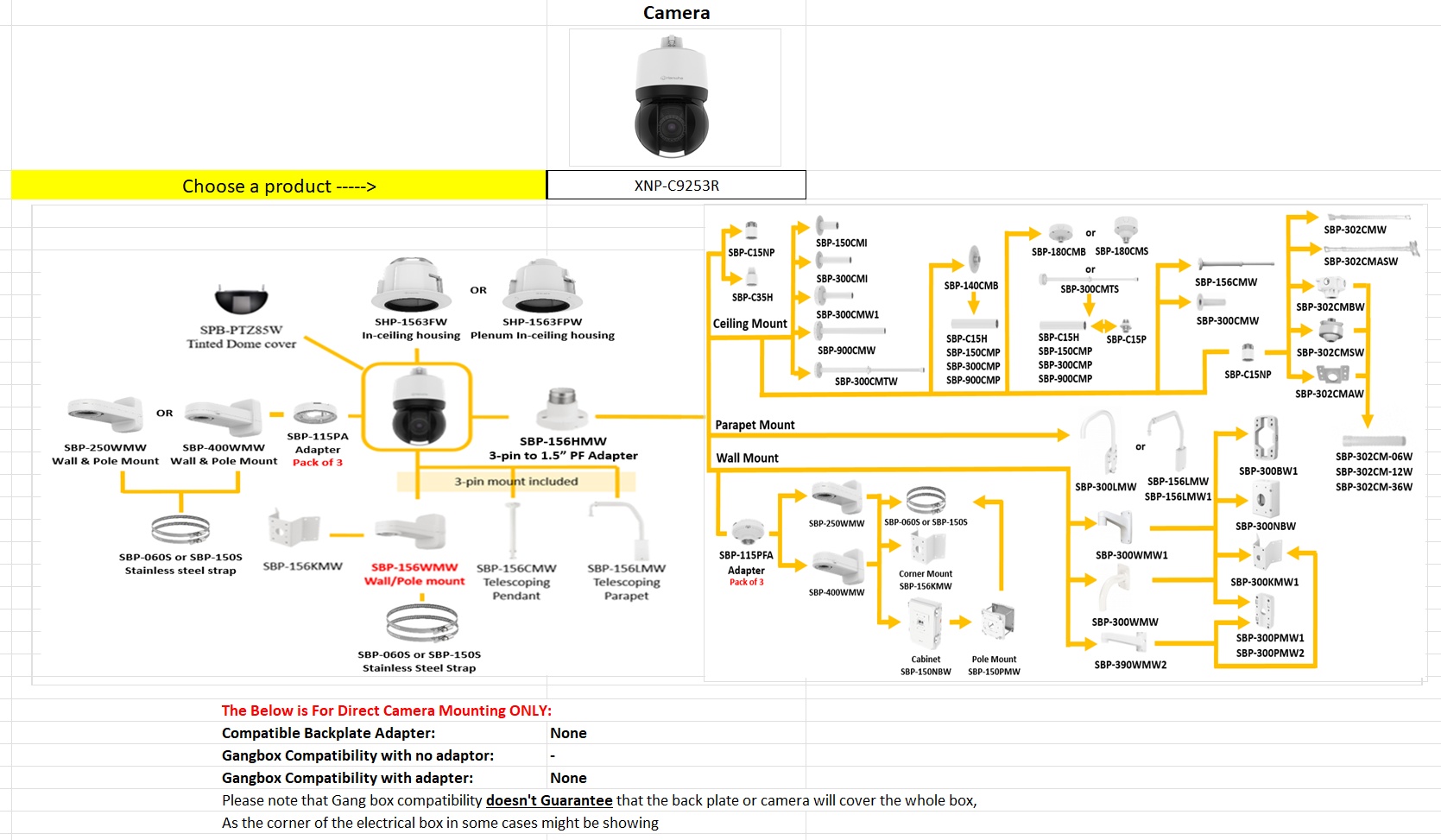

Mounting tools Download png

Specifications

Product
Model number XNP-C9253R
GTIN code 8801089224989
Brand Hanwha
Category
IP Cameras
PTZ
HS Code
852589
Country of origin
Vietnam
Weight
3200 grams
Size (lxwxh)
219 x 279 x 348 millimeters
Camera Properties
Outdoor
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
4K (8.3MP) or higher
Hanwha Series
Wisenet X
Angle of View
180° - 360°
Optical zoom
18-27x
Encoding
H264
H265
MJPEG
