Hanwha TNO-L4030TR
Hanwha
Article code TNO-L4030TR
{{ fullProductName }}

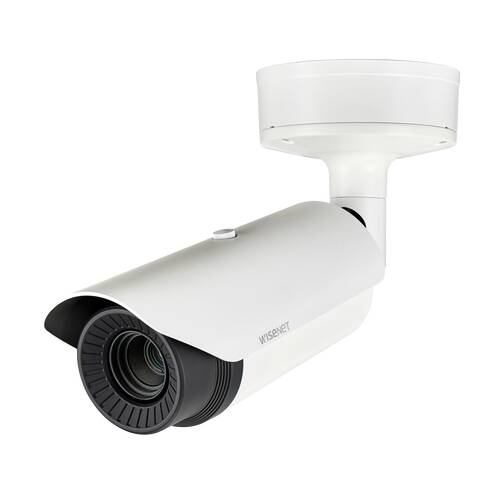

Hanwha TNO-L4030T Outdoor Thermal Bullet camera, 640x480 resolution, 8.3 fps, Angle of view 48.6°, Temperature detection range -20°C~130°C
- VGA (640x480) resolution
- 8.3 fps
- 48.6° angle of view
- -20°C~130°C Temperature detection range
Description Hanwha TNO-L4030TR
Wisenet T network outdoor thermal bullet camera, VGA @8fps, 13mm fixed lens (48.6°), triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, Hallway View, Motion detection, Tampering detection, Handover, 7 colour palettes, Temperature detection range -20°C~130°C, Digital Image Stabilization with built-in Gyro Sensor, Bi-directional audio and microSD/SDHC/SDXC slot, IP66, IK10, Nema 4X, PoE/12VDC/24VAC.
Key Features:
- Max. 640 x 480 resolution support
- 13mm fixed focal
- H.265, H.264, MJPEG codec
- Max. 8fps@all resolutions (H.265, H.264, MJPEG)
- Motion detection, Handover, Tampering, Loitering, Temperature detection
- Directional detection, Audio detection
- Micro SD/SDHC/SDXC 1slot 256GB
- Hallway View, WiseStreamII support
- PoE(IEEE802.3af, Class3), 24VAC, 12VDC
- IP66, IK10, NEMA4X
- Temperature Detect Range -20°C~130°C(-4°F~266°F)
Downloads
| Datasheet | Download |
| User manual | Download |
| Product dimensions | Download |

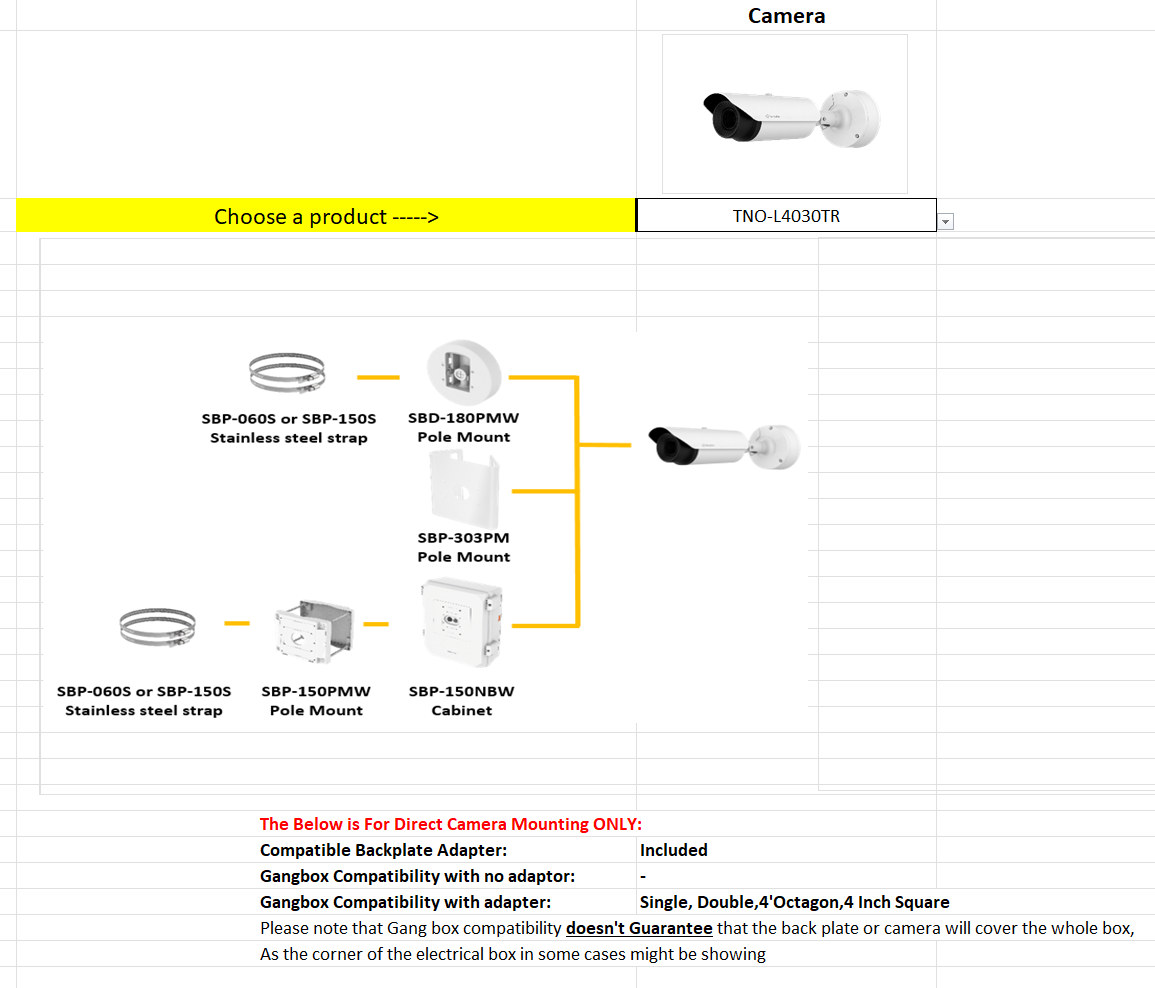

| Mounting tool | Download |
Specifications
Product
| Model number | TNO-L4030TR |
| GTIN code | 8801089214003 |
| Brand | Hanwha |
| Category |
IP Cameras
Thermal
|
| HS Code |
852589
|
| Weight |
3124 grams
|
| Size (lxwxh) |
285
x 493 x 230 millimeters
|
|
Camera Properties
|
Outdoor
Vandal resistant
|
|
Basic Functionality
|
Day and night
Input/output
Audio support
Local Storage
|
|
Hanwha Series
|
Wisenet T
|
|
Power over Ethernet
|
15W
|
|
Angle of View
|
31° - 60°
|
|
Encoding
|
H264
H265
MJPEG
|
|
Thermal camera properties
|
Bullet
8.3 fps
|
