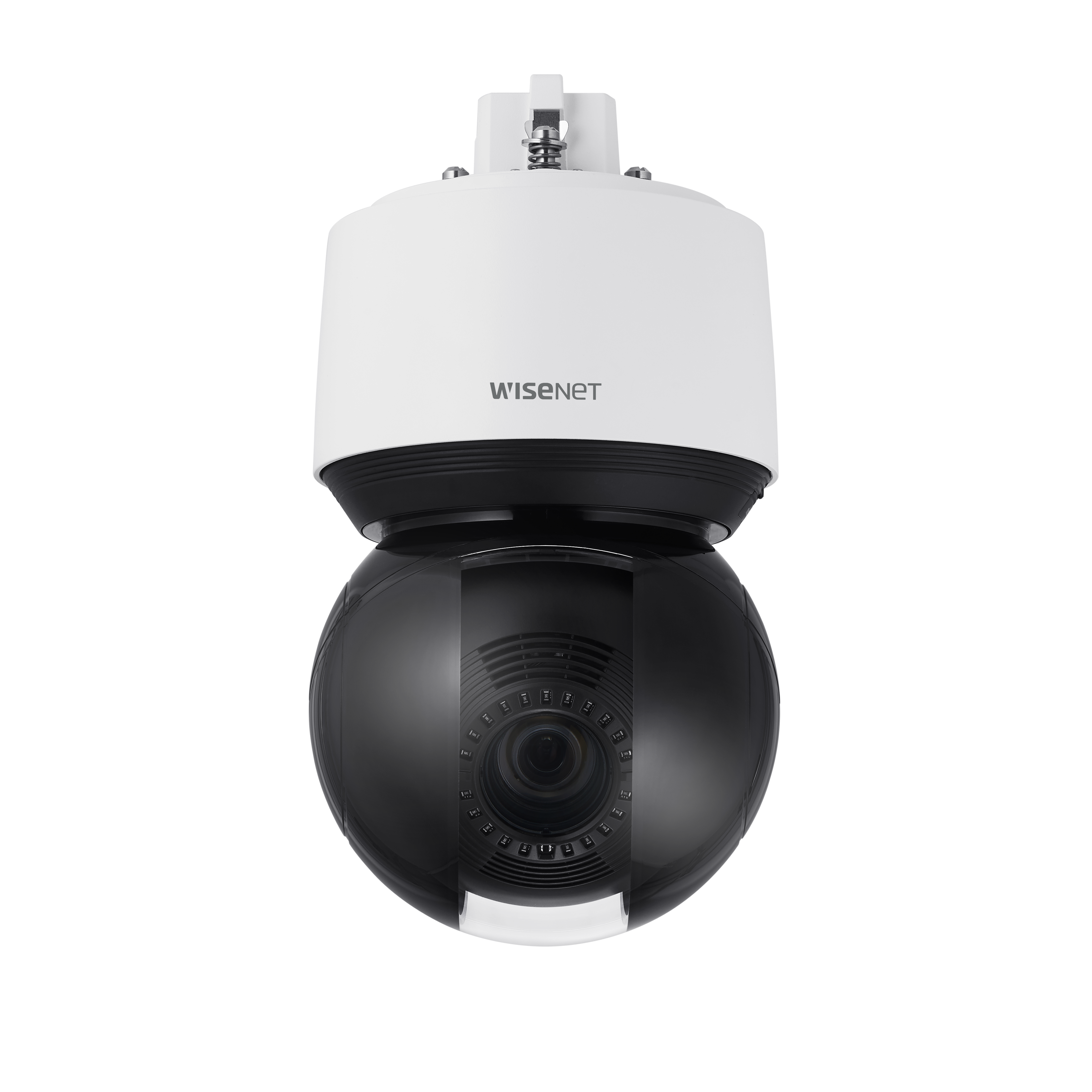

Hanwha XNP-6400

Hanwha Article code XNP-6400

NetcamCenter {{ fullProductName }}

2MP Network PTZ Camera, Day/Night, Extreme 120dB WDR, PoE, IK10 Vandalism Resistant
In stock
Buy now
+ Quote
  • Outdoor PTZ 2MP
  • 40x zoom lens 65.66° - 1.88°
  • Light sensitivity colour: 0.05 Lux, B/W: 0.005 Lux

Description Hanwha XNP-6400

The XNP-6400 PTZ PLUS features our Wisenet 7 chipset, to deliver a 2MP resolution 40X optical zoom camera. Featuring increased look-up tilt range, & 360° endless pan, in a new compact, lightweight form factor for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology, extreme WDR, advanced video analytics and sound classification (I/O box required for audio detection/classification), true D/N, dual SD card slots, DIS (Gyro), PoE+, IP66/IK10, temperature range from -40°F ~ +131°F.

Optional mounting accessories required.

Key Features:

  • Max. 2MP resolution
  • 4.25~170mm (40x) zoom (digital 32x, total 1280x zoom)
  • Day & Night (ICR), extreme WDR, DIS (Built-in gyro sensor)
  • Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
  • H.264, H.265, MJPEG codec, WiseStream II
  • IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
  • PTZ PLUS Design applied (Compact, Lighter, Simple cabling

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

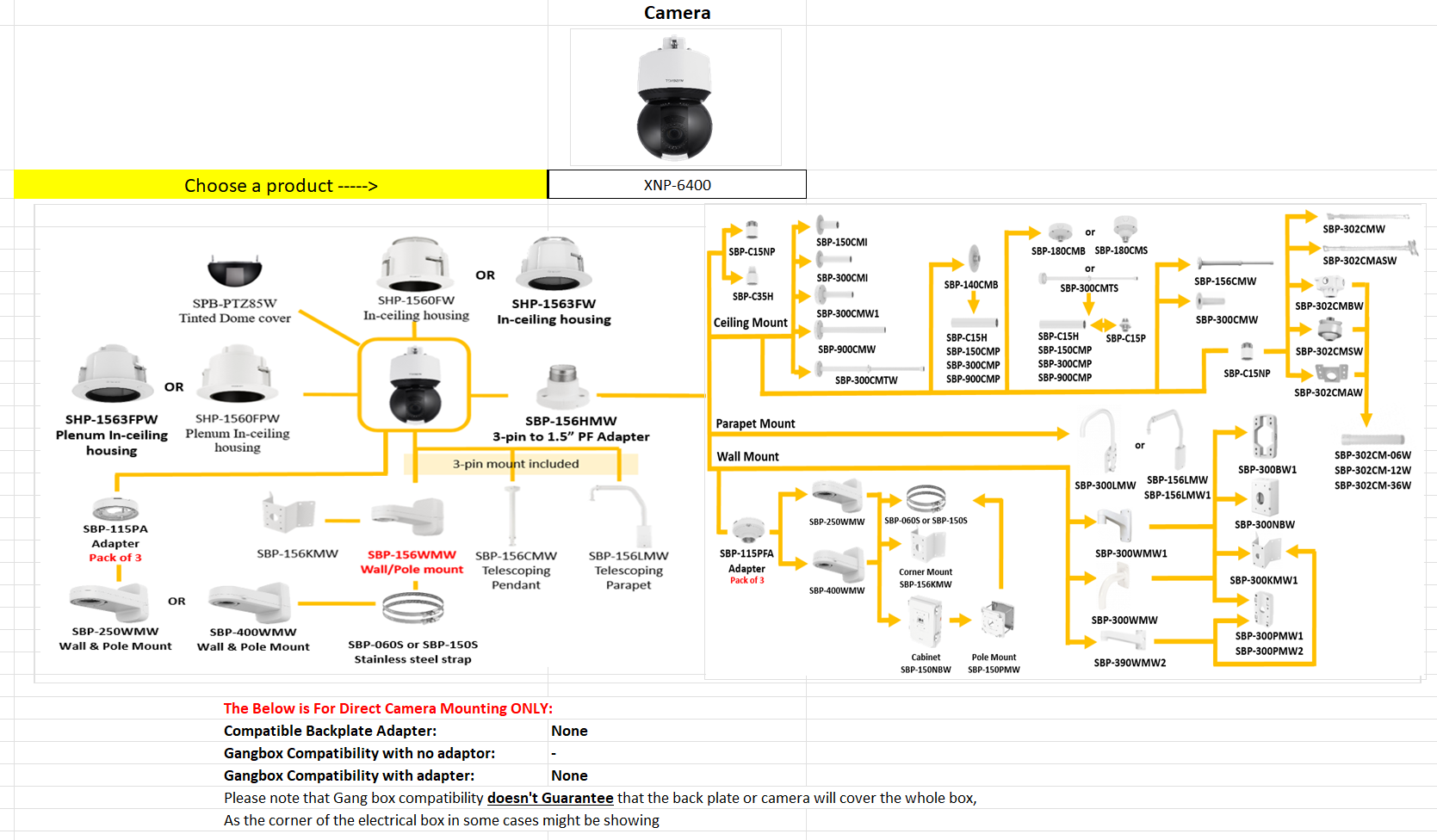

Mounting tools Download png

Video

Specifications

Product
Model number XNP-6400
GTIN code 8801089181985
Brand Hanwha
Category
IP Cameras
PTZ
HS Code
852589
Country of origin
Vietnam
Weight
3200 grams
Size (lxwxh)
215 x 279 x 342 millimeters
Camera Properties
Outdoor
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
1080p (2MP)
Software
Analytics
Hanwha Series
Wisenet X Plus
Angle of View
180° - 360°
Encoding
H264
H265
MJPEG
