Hanwha SBP-180CMS

SBP-180CMS Ball Head Ceiling Mount Base for Secure Camera Installation

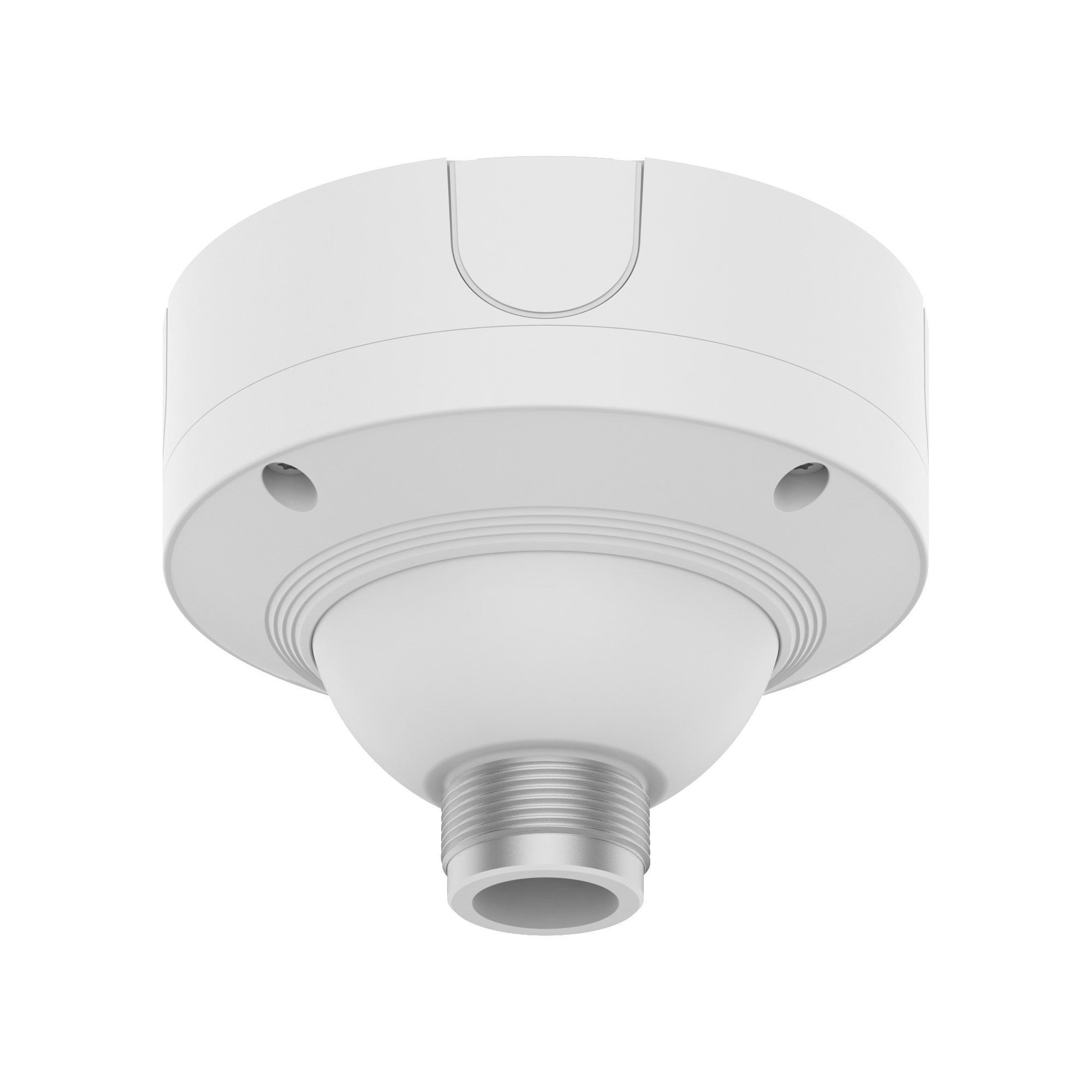

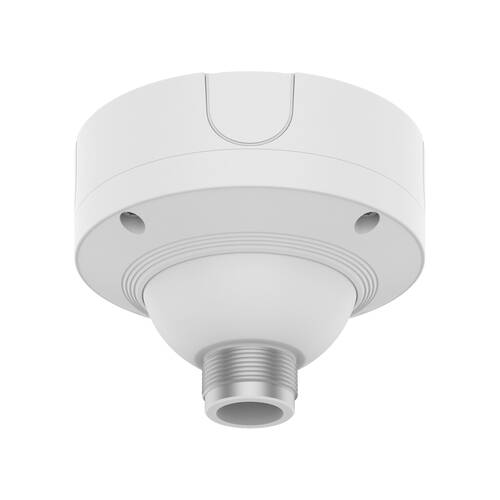

The SBP-180CMS is a ball head ceiling mount base designed for ceiling installation of compatible camera housings and pipe extensions. Constructed from aluminum with a white finish (RAL9003), it measures ø180x86.5mm (ø7.09x3.41") and weighs 970g (2.14lb). The base features a TR30 mount screw size and a 19.1mm (3/4") conduit hole (M25) for cable routing. It is compatible with the SBP-C15P and SBP-150CMP/300CMP/900CMP series, with pipe extension supported only once. As with all Hanwha Vision products, design and specifications are subject to change without notice.

Key Features:

• Aluminum construction
• White finish (RAL9003)
• Compact ø180x86.5mm footprint, 970g weight
• TR30 mount screw size
• 19.1mm (3/4") conduit hole (M25)
• Compatible with SBP-C15P, SBP-150CMP/300CMP/900CMP
