AXIS 90 W Midspan AC / DC
AXIS
Article code 02209-001
{{ fullProductName }}
20 / 26.4V DC PoE injector with 90W PoE budget Midspan, 24V PoE

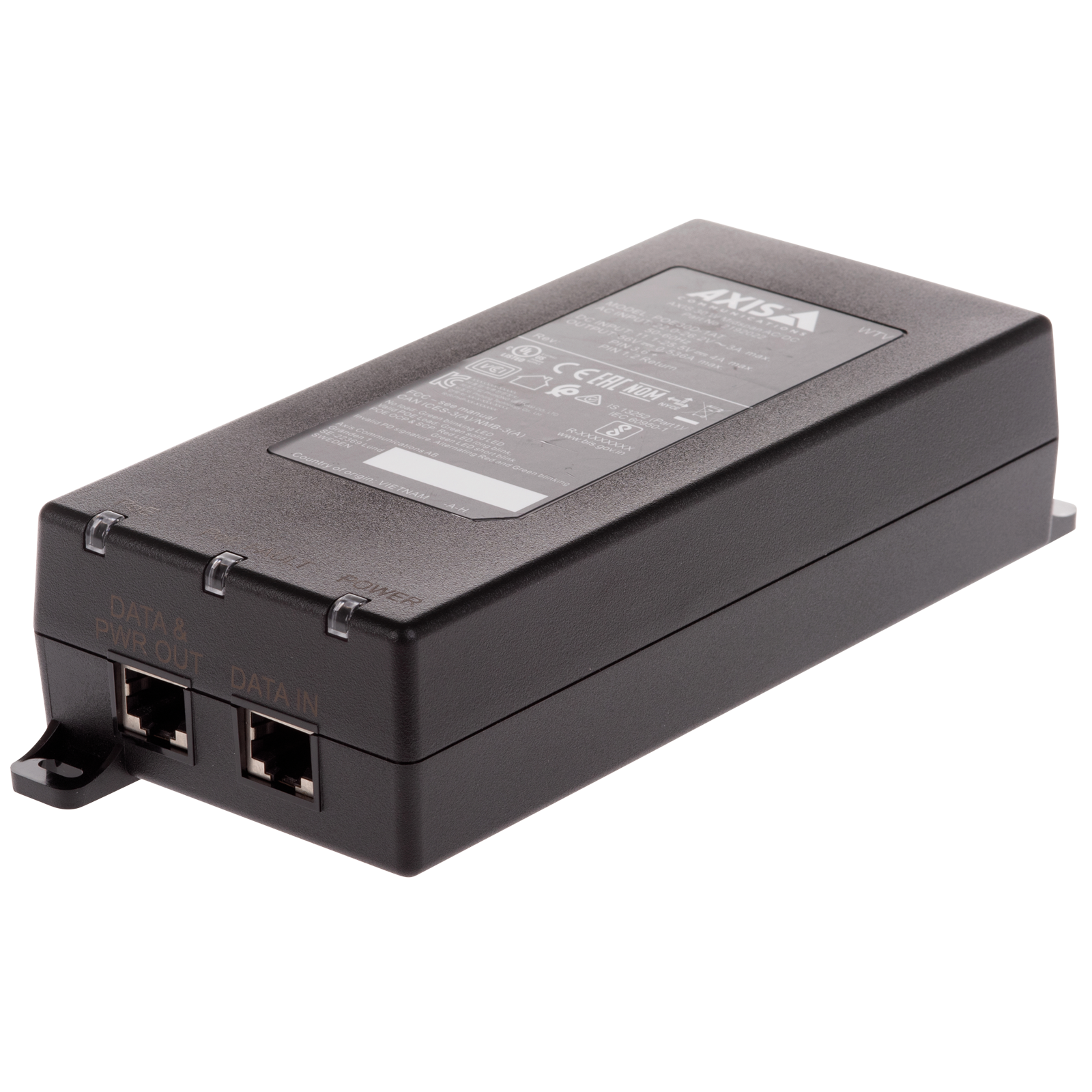

Description AXIS 90 W Midspan AC / DC
AXIS 90 W Midspan AC/DC is for installations where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC, it can deliver up to IEEE 802.3bt (90 W) to the network device. 24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras. 20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it.
Key Features:
- 24 V AC and 20-26.4 V DC input
- Up to IEEE 802.3bt (90 W) output
- Ideal for retrofitting PTZ
- Compatible with Axis PoE devices
- Flexible installation
Compatible products
More products Less productsSpecifications
Product
| Model number | 02209-001 |
| GTIN code | 7331021074729 |
| Brand | AXIS |
| Category |
Other Products
Switches, PoE & power supply
|
| HS Code |
850440
|
| Weight |
580 grams
|
| Size (lxwxh) |
220
x 90 x 55 millimeters
|
