Allnet ALL-PI103MG-BT90-10G

PoE Injector MultiGigabit

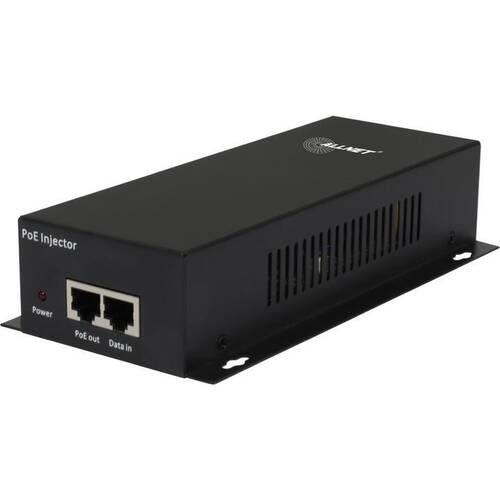

The ALLNET PoE Injector ALL-PI103MG-BT90-10G is a powerful multi-gigabit PoE injector that provides up to 90W output power per PoE port. The port supports automatic adaptation to different speeds (1G / 2.5G / 5G / 10G), allowing it to adapt flexibly to different network environments. The voltage range for the input is between 100 and 240V AC, while the operating temperature range is from -20°C to +50°C. Thanks to a robust industrial chip design, the PoE injector is particularly resistant and equipped with ESD overvoltage protection. It fulfils all relevant standards such as FCC, CE and RoHS, which ensures a high level of reliability and safety. The sophisticated hardware design ensures stable, uninterrupted operation, ideal for automation systems. The compact housing can be mounted both on walls and tables. Typical applications include PTZ cameras, compact computers, all-in-one devices, digital signage displays and other network-based systems that require high performance and reliability.

Key features:

• Support 1*Multigigigabit 10G PoE port (1G/2.5G/5G/10G) + 1*10G (1G/2.5G/5G/10G LAN) RJ45 port;
• Support IEEE802.3af (15.4w), IEEE802.3at (30w) and IEEE802.3bt (90w)
• Support power supply 100-240VAC
• Metal housing, IP20 protection rating, -20 ~ 50°C working temperature
• Support port surge protection: Differential mode 2KV, common mode 6KV; ESD: Contact 6KV, air 8KV
