ExSys EX-60315

ExSys Article code EX-60315

Description ExSys EX-60315

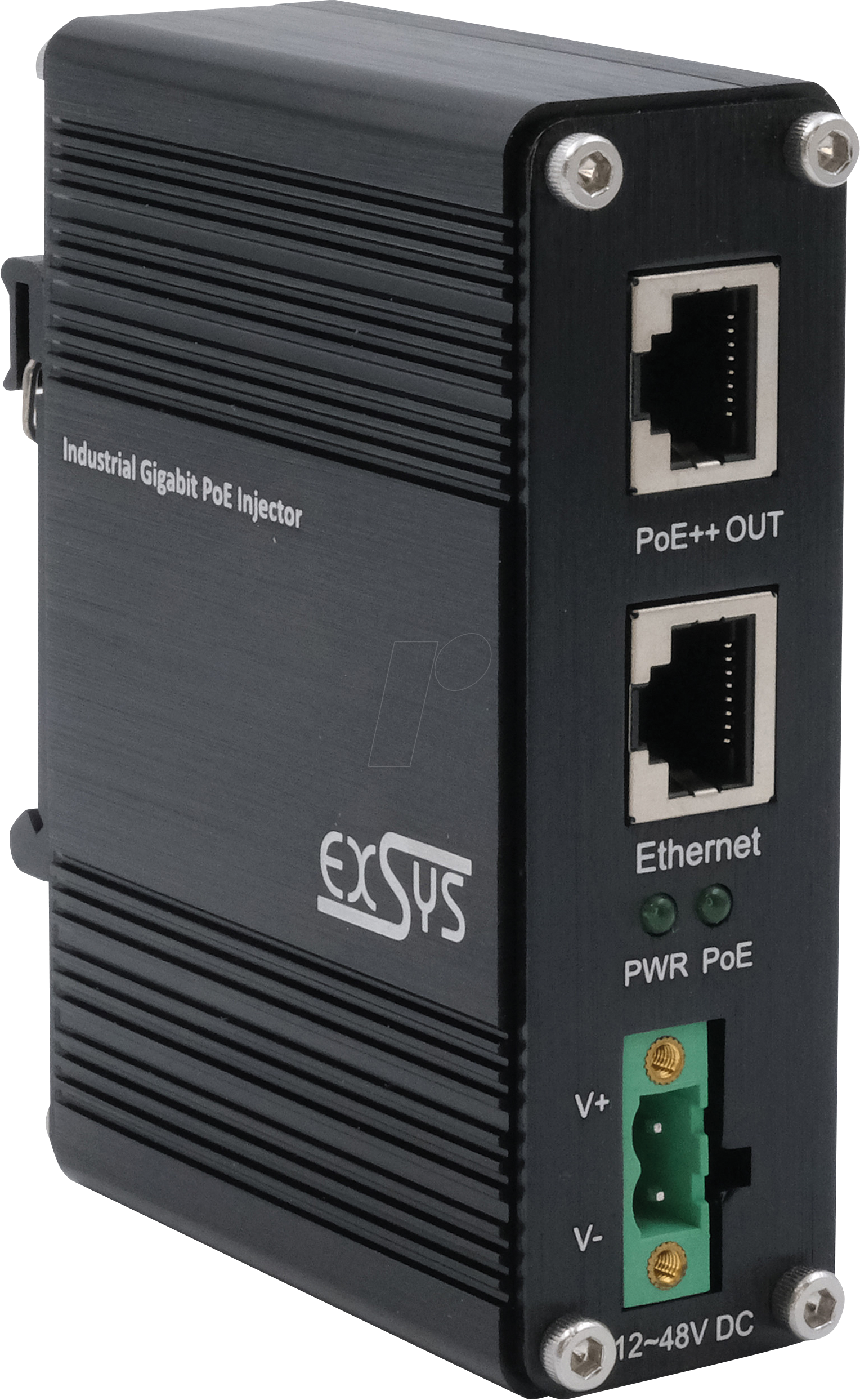

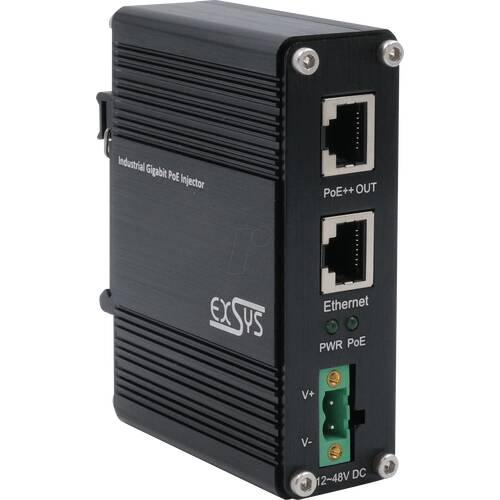

The Gigabit Ethernet PoE Injector EX-60315 features a robust metal housing and enables the power supply for end devices such as IP telephones, IP cameras, WLAN access points, and more via the network cable. It supports PoE standards IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt (PoE++) with a maximum power output of up to 90W on the PoE port. Power is provided through a +12~48V terminal block, using an optional external power supply.

The EX-60315 ensures secure data transmission and delivers excellent performance with speeds of up to 1000Mbps. Its durable metal housing and extended operating temperature range of -40°C to 80°C make it ideal for various applications, including challenging environments. The package includes a pre-assembled DIN rail kit and a wall mounting bracket for flexible installation options.

Key Features

  • Provides power to remote network devices
  • 10/100/1000Base-T Gigabit Ethernet
  • Fully IEEE 802.3af/at/bt Power Over Ethernet (PoE) compliant
  • Maximum power delivered:
    • 802.3af, Type 1: 15.40W (PSE), 12.95W (PD)
    • 802.3at, Type 2: 30.00W (PSE), 25.50W (PD)
    • 802.3bt, Type 3: 60.00W (PSE), 51.00W (PD)
    • 802.3bt, Type 4: 90.00W (PSE), 71.00W (PD)
  • Plug and play, no configuration and installation required
  • LED status indicators for power supply and PoE
  • Terminal block for DC input, +12 V to +48 VDC
  • Scales the input voltage to the PoE voltage range (42 - 57VDC)
  • Rugged, compact metal housing, IP40
  • Includes DIN-Rail Kit and wall mounting bracket
  • Extended operating temperature range from -40°C to +80°C

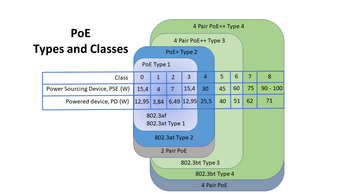

Po E V3 003

Downloads

Datasheet Download pdf
Installation manual Download pdf

Specifications

Product
Model number EX-60315
Brand ExSys
