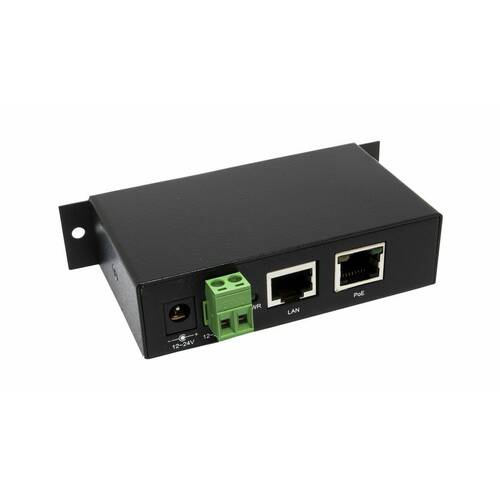

ExSys EX-6007PoE

The EX-6007PoE can be used to supply terminal devices such as IP telephones, IP cameras or WLAN access points with a voltage of 48 V. This means that the terminal devices do not require additional sockets or expensive switches that support PoE. The EX-6007PoE is a cost-effective solution with a maximum output of 34.20 W and gigabit data transmission. With its slim, compact housing and a temperature range of 0ºC to + 60ºC it is an ideal product for industrial environments. With the EX-6007PoE, Ethernet networks can be expanded with PoE functionality without having to replace existing switches. The various end devices can be supplied with power directly via the data cables. This saves costs and increases flexibility where the terminal equipment is installed. The EX-6007PoE can be mounted on the wall as well as on a DIN rail.

Key Features:

• supplies network terminals with power through the data line
• supports 10/100/1000 Base-T Ethernet standard

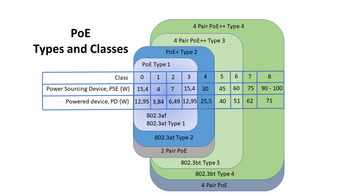

• Fully compliant with IEEE 802.3at PoE (PSE) Type 1 and 2 operation
• maximum output power: Type 1 = 15.40 W / Type 2 = 30.20 W.
• LED display for Power PoE power supply status
• built-in transformer to boost voltage from 12 ~ 24 VDC to 56 VDC
• Power consumption: 12 V to 24 V (DC connection or terminal block)
• built-in isolated DC to DC converter
• Wall and DIN rail mounting
• slim, robust metal housing for critical applications
