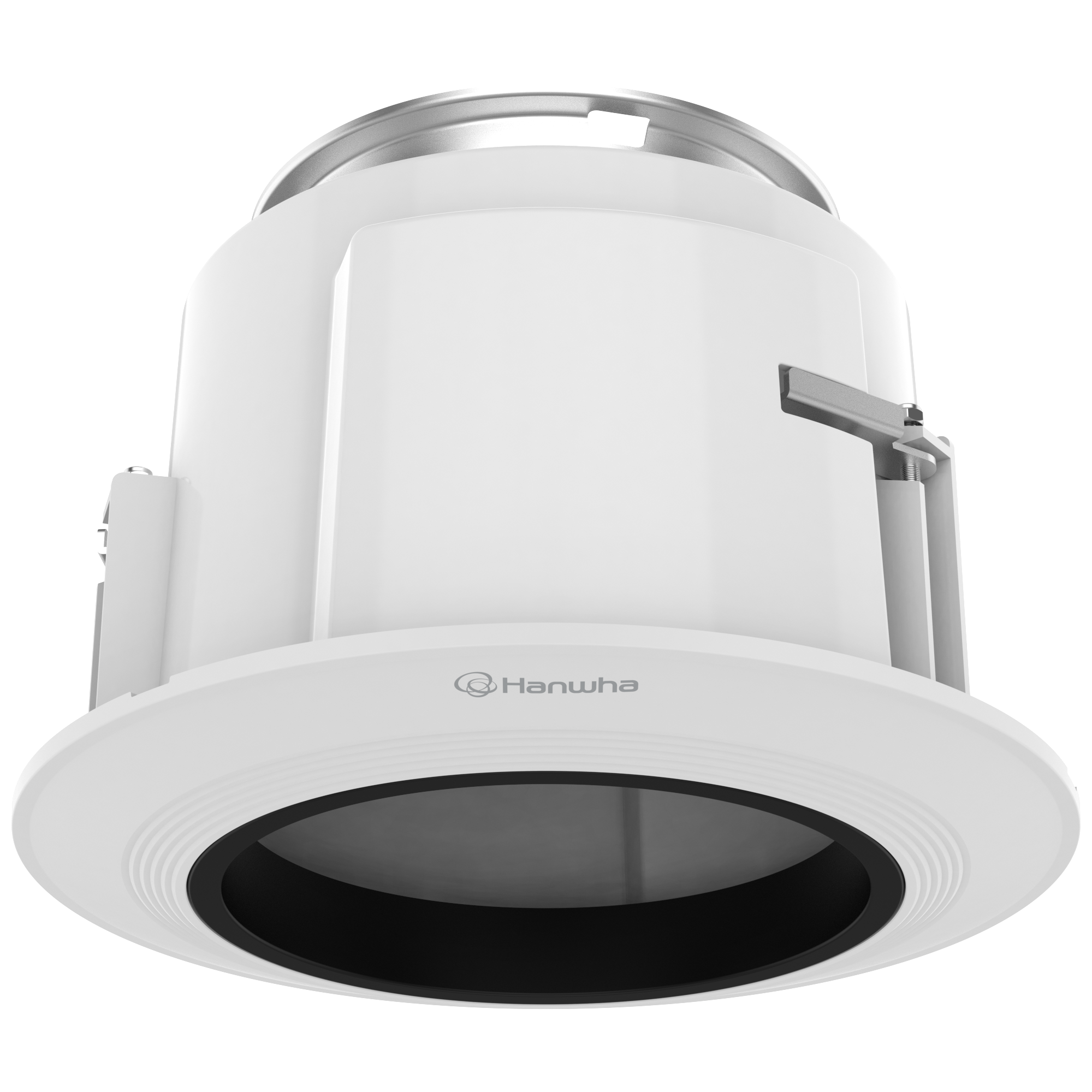

Hanwha SHP-1563FW

In-Ceiling Flush Mount for PTZ-Plus Cameras

The SHP-1563FW is a white in-ceiling flush mount designed for Hanwha Vision PTZ-Plus cameras. Its enclosure is built from aluminum and polycarbonate (PC), with a polycarbonate top cover, giving the mount a durable yet lightweight construction. The mount measures ø268x190mm and weighs 1.2kg, and it is designed to fit ceiling tiles with a thickness of 3 to 70mm. It is compatible with the XNP-9250/9250R, XNP-8250/8250R, XNP-6400/6400R, QNP-6320R/6250R, and XNP-C6403/C8253/C9253 and XNP-C6403R/C8253R/C9253R camera series.

Key Features:

• Aluminum and PC (polycarbonate) enclosure
• White finish, RAL9003
• Dimensions: ø268x190mm (ø10.55x7.48")
• Weight: 1.2kg (2.65lb)
• Supports ceiling tile thickness of 3~70mm
• Compatible with XNP-9250/8250/6400, QNP-6320R/6250R and XNP-C6403/C8253/C9253 series
