Hanwha SLM-5M25

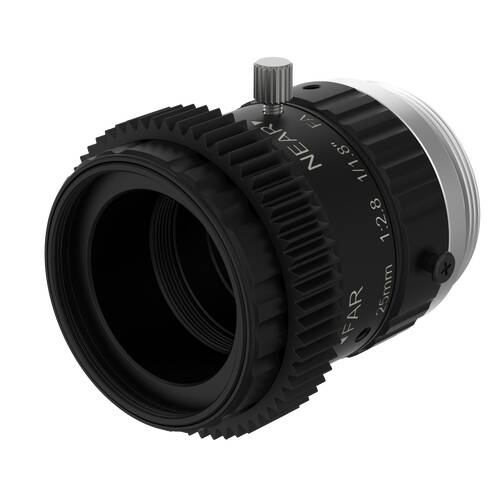

25mm C-Mount Lens for Mono BCR Cameras

The SLM-5M25 is a 25mm C-mount lens built for Mono BCR cameras, with support confirmed for the TNS-7000M. It is designed to work with imaging devices ranging from 1/3.1" to 1/1.8" in size and supports resolutions from 3M to 5M. The lens has a maximum aperture of F8 and offers a horizontal field of view of 10.5° to 15.3°, a vertical field of view of 7.9° to 12.8°, and a diagonal field of view of 13.1° to 19.8°. Its back focal length is 12.07mm with a flange back focal length of 17.526mm. The lens is rated for operation across a temperature range of -20°C to +60°C.

Key Features:

• 25mm focal length, C-mount
• Max. aperture F8
• Supports 3M~5M resolution
• Compatible with 1/3.1"~1/1.8" imaging devices
• Field of view up to 19.8° (diagonal)
• Operating temperature -20°C to +60°C
