Hanwha SLM-5M08

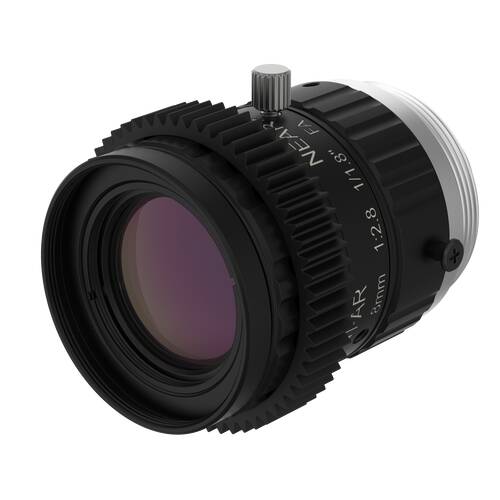

SLM-5M08 – 8mm C-Mount Lens for Mono BCR Cameras

The SLM-5M08 is an 8mm C-mount lens designed for Mono BCR Cameras, supporting imaging devices from 1/3.1" to 1/1.8" with a 3M to 5M resolution range. It features a maximum aperture ratio of F6 and delivers a horizontal angular field of view of 32.1° to 45.5°, a vertical field of view of 24.4° to 38.7°, and a diagonal field of view of 39.6° to 57.3°. With a back focal length of 9.87mm and a flange back focal length of 17.526mm, the lens is built for precise optical alignment. It operates reliably across a temperature range of -20°C to +60°C (-4°F to +140°F) and is compatible with the TNS-7000M. The lens measures Ø29x45.94mm and weighs 56.2g.

Key Features:

• 8mm focal length
• Maximum aperture F6
• C mount design
• Angular field of view: 32.1°–57.3° (H/V/diagonal)
• Operating temperature -20°C to +60°C
• Compatible with TNS-7000M
