Hanwha SLM-5M12

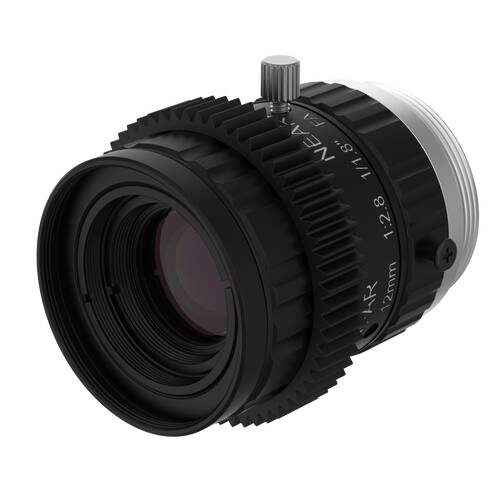

SLM-5M12 - 12mm C-Mount Lens for Mono BCR Cameras

The SLM-5M12 is a 12mm C-mount lens designed for Mono BCR Cameras, supporting resolutions from 3M to 5M. It features a CMOS imaging device with a sensor size ranging from 1/3.1" to 1/1.8" and a maximum aperture ratio of F6. The lens offers an angular field of view of 21.7° to 31.2° horizontal, 16.4° to 26.3° vertical, and 27.0° to 40.0° diagonal. With a back focal length of 11.51mm and a flange back focal length of 17.526mm, it is compatible with the TNS-7000M. It is built to operate in temperatures ranging from -20°C to +60°C (-4°F to +140°F).

Key Features:

• 12mm focal length
• 3M~5M resolution support
• C mount type
• Max. aperture F6
• Operating temperature -20°C~+60°C
• Compatible with TNS-7000M
