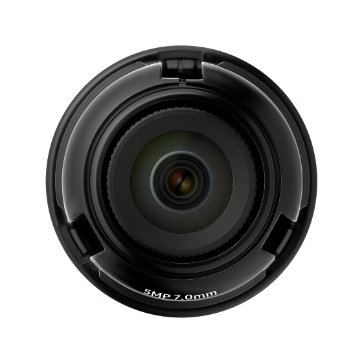

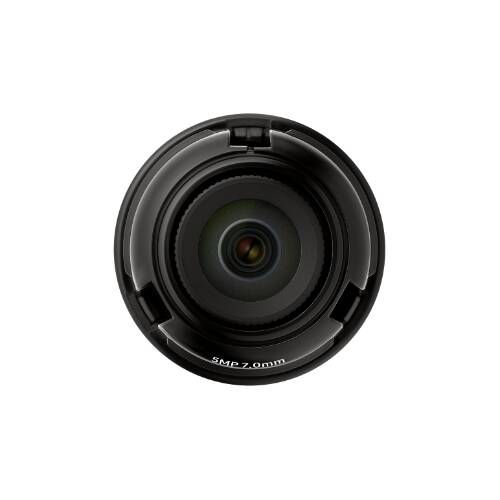

Hanwha SLA-5M7000P

SLA-5M7000P: 5MP 7.0mm Exchangeable Lens Module for PNM-9320VQP

The SLA-5M7000P is an exchangeable 5MP fixed lens module with a 7.0mm focal length, designed for use with the PNM-9320VQP. It is built around a 1/1.8" 5MP CMOS imaging device, offering a total pixel count of 3096(H) x 2094(V) and effective pixels of 2616(H) x 1976(V) with progressive scan. The lens delivers an angular field of view of H:50.7˚, V:37.8˚, D:63.8˚ at a maximum aperture of F1.6. Low-light performance is rated at 0.16Lux@F1.6 for both color and black/white, complemented by Electrical Day & Night switching and a 120dB Wide Dynamic Range. The module mounts via M12 with the main unit and supports pan, tilt and rotate adjustment. It has a black plastic housing measuring Ø35.5 x 35.9 mm and weighs 35g (0.08 lb).

Key Features:

• 1/1.8" 5MP CMOS imaging device
• 7.0mm fixed focal lens, F1.6 max. aperture
• 0.16Lux@F1.6 min. illumination (Color/B/W)
• 120dB Wide Dynamic Range (WDR)
• Electrical Day & Night
• Exchangeable M12 lens module, compatible with PNM-9320VQP
