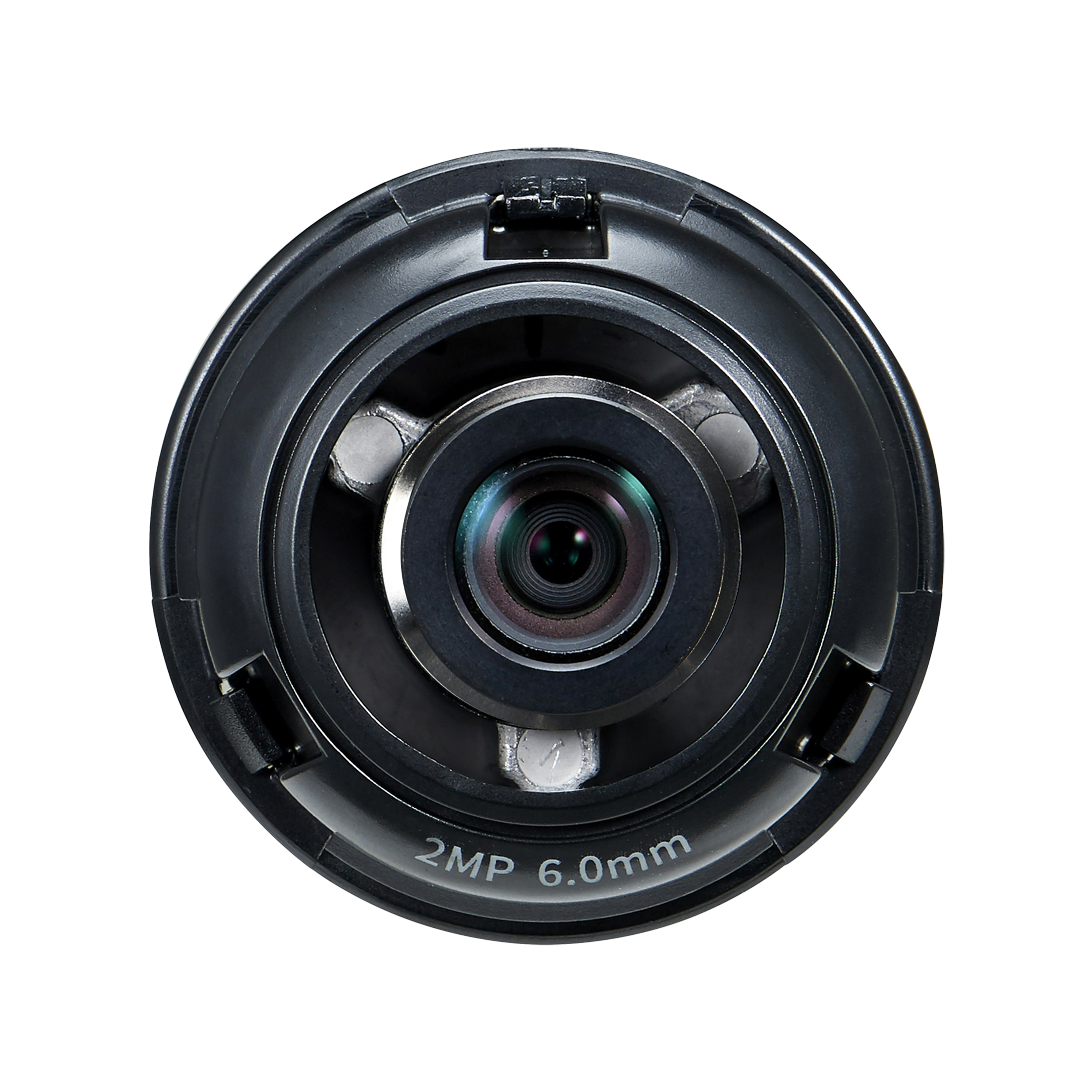

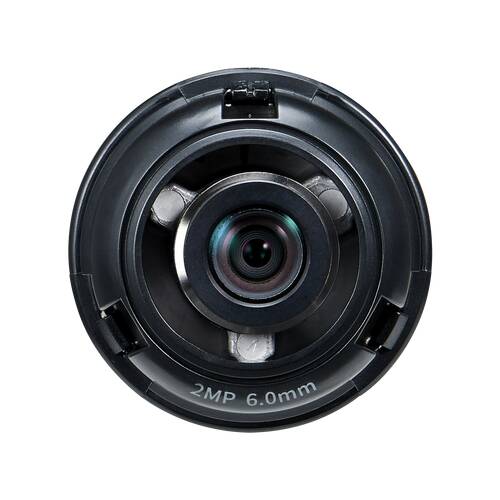

Hanwha SLA-2M6000P

Exchangeable 6.0mm Lens Module for PNM-9320VQP Multi-Sensor Camera

The SLA-2M6000P is an exchangeable 2MP lens module designed for the PNM-9320VQP multi-sensor camera. It features a 1/2.8" 2M CMOS sensor with progressive scan and a fixed 6.0mm focal length lens at F2.0 maximum aperture. The module delivers a field of view of H:50.4˚, V:28.8˚, D:58.1˚, suited for narrower-angle coverage within the PNM-9320VQP system. It offers minimum illumination of 0.055Lux@F2.0 in both color and B/W, a 50dB S/N ratio, and 150dB Wide Dynamic Range for handling high-contrast scenes. Electrical Day & Night switching is supported, and the module connects via an M12 lens mount to the main unit.

Key Features:

• 1/2.8" 2M CMOS sensor, progressive scan
• 6.0mm fixed focal lens, F2.0 max aperture
• Field of view: H:50.4˚, V:28.8˚, D:58.1˚
• 0.055Lux@F2.0 minimum illumination (Color, B/W)
• 150dB Wide Dynamic Range (WDR)
• Electrical Day & Night, M12 mount, compatible with PNM-9320VQP
