Hanwha SLA-2M1200P

SLA-2M1200P – Exchangeable 12.0mm Lens Module for PNM-9320VQP

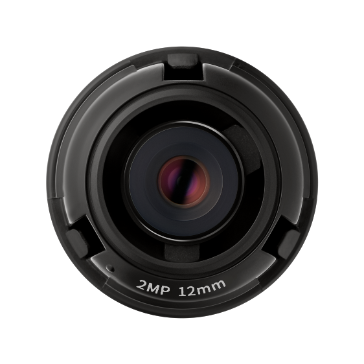

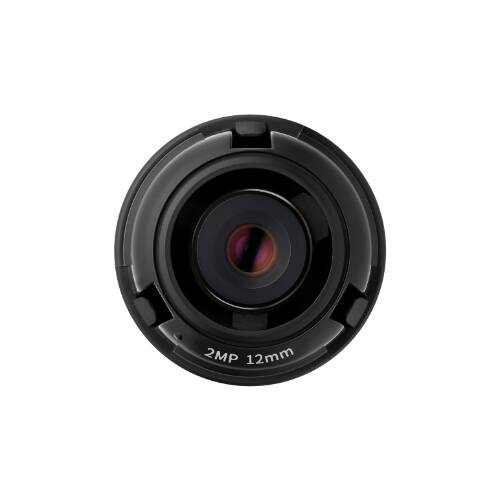

The SLA-2M1200P is an exchangeable 2MP fixed-focal lens module designed for the PNM-9320VQP multi-sensor camera. It uses a 1/2.8" 2M CMOS imaging device with a 12.0mm fixed pinhole lens and a maximum aperture of F2.0, delivering an angular field of view of H:26.3˚, V:14.9˚, D:30.0˚. The module offers a minimum illumination of 0.055 Lux in both color and B/W (F2.0, 1/30sec, 30IRE), a 50dB S/N ratio, and 150dB Wide Dynamic Range, with electrical Day & Night switching. It mounts via an M12 lens module interface directly to the main unit and supports pan (-90˚ to +90˚), tilt (+10˚ to +97˚) and rotate (-180˚ to +180˚) adjustment. Housed in black plastic with a dimension of Ø35.5 x 35.9 mm, the module weighs just 30g.

Key Features:

• 12.0mm fixed focal lens, F2.0 aperture
• 0.055 Lux minimum illumination (Color/B&W)
• 150dB Wide Dynamic Range
• Electrical Day & Night
• Pan/Tilt/Rotate adjustment (-90˚~+90˚ / +10˚~+97˚ / -180˚~+180˚)
• Compact M12 lens module, 30g, for PNM-9320VQP
