Hanwha SLA-5M4600P

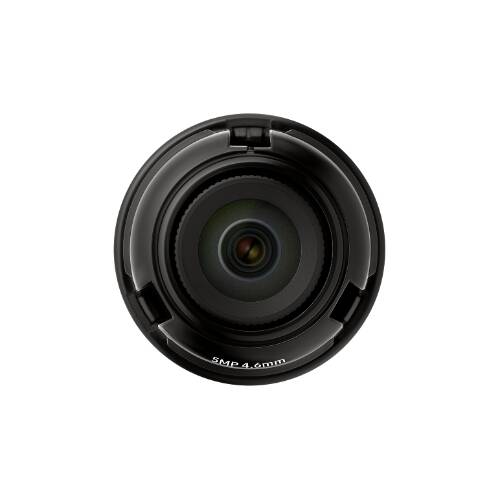

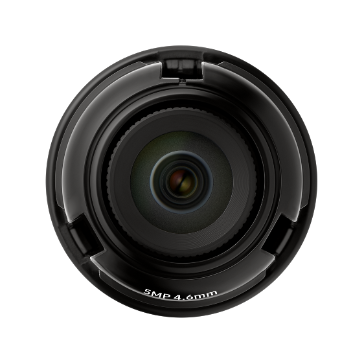

SLA-5M4600P: 5MP 4.6mm Exchangeable Lens Module for PNM-9320VQP

The SLA-5M4600P is an exchangeable 5MP lens module designed for the PNM-9320VQP camera, featuring a fixed 4.6mm focal length. It uses a 1/1.8" 5M CMOS imaging device with 3096(H) x 2094(V) total pixels and 2616(H) x 1976(V) effective pixels, delivering an angular field of view of H:77.9˚, V:57.9˚, D:98.7˚. The module has a maximum aperture of F1.6 and a minimum illumination of 0.16Lux@F1.6 in both Color and B/W modes. With Wide Dynamic Range (WDR) of 120dB and Electrical Day & Night functionality, it adapts to changing lighting conditions. The lens module attaches via an M12 lens mount with the main unit and supports a pan range of -90˚ to +90˚, tilt of +21˚ to +85˚, and rotation of -180˚ to +180˚. It comes in a black plastic housing, Ø35.5 x 35.9mm, weighing 35g.

Key Features:

• 1/1.8" 5MP CMOS sensor with fixed 4.6mm lens
• 0.16Lux@F1.6 minimum illumination (Color, B/W)
• Wide Dynamic Range (WDR) 120dB
• Electrical Day & Night
• Pan -90˚~+90˚ / Tilt +21˚~+85˚ / Rotate -180˚~+180˚
• Exchangeable M12 lens module for PNM-9320VQP
