Hanwha SLA-2M3600P

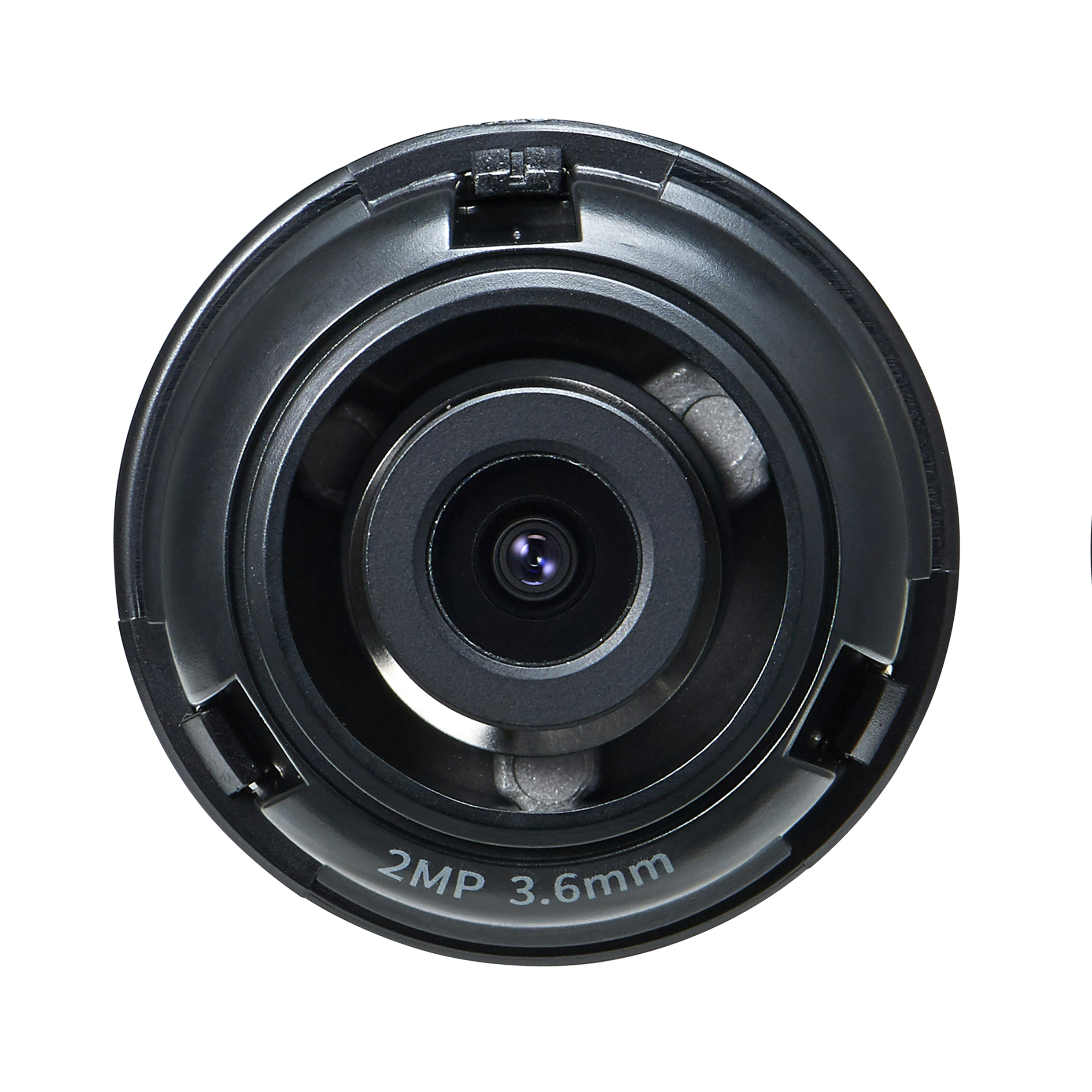

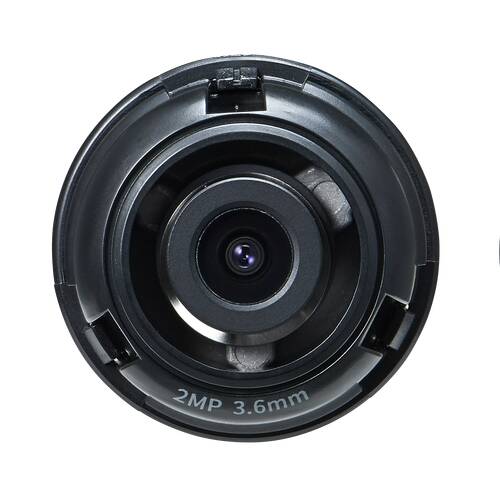

SLA-2M3600P: 3.6mm Exchangeable Lens Module for the PNM-9320VQP

The SLA-2M3600P is a 3.6mm fixed-focal lens module designed as an exchangeable lens option for the PNM-9320VQP multi-sensor camera. It features a 1/2.8" 2M CMOS imaging device with 2.16M total pixels and 2.13M effective pixels, using progressive scan. The lens has a maximum aperture of F2.0 and an angular field of view of H:94.8˚, V:49.3˚, D:114.3˚. With a minimum illumination of 0.055Lux in both Color and B/W (F2.0, 1/30sec, 30IRE), the module also offers Electrical Day & Night, 150dB Wide Dynamic Range and a 50dB S/N ratio. It connects to the main unit via an M12 lens module mount and allows a pan range of -90˚ to +90˚, tilt of +22˚ to +84˚, and rotation of -180˚ to +180˚. The module measures Ø35.5 x 35.9 mm, weighs 30g, and has a black plastic housing.

Key Features:

• 3.6mm fixed-focal lens, F2.0 max aperture
• 1/2.8" 2M CMOS, 2.16M total pixels
• 0.055Lux minimum illumination, Color/B/W
• 150dB Wide Dynamic Range (WDR)
• Electrical Day & Night
• M12 mount, exchangeable for PNM-9320VQP
