Hanwha SLA-5M3700P

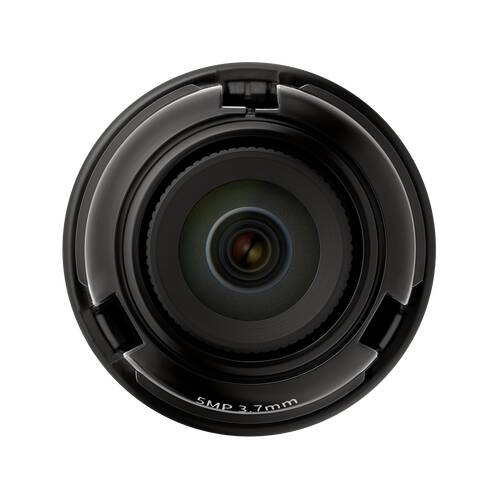

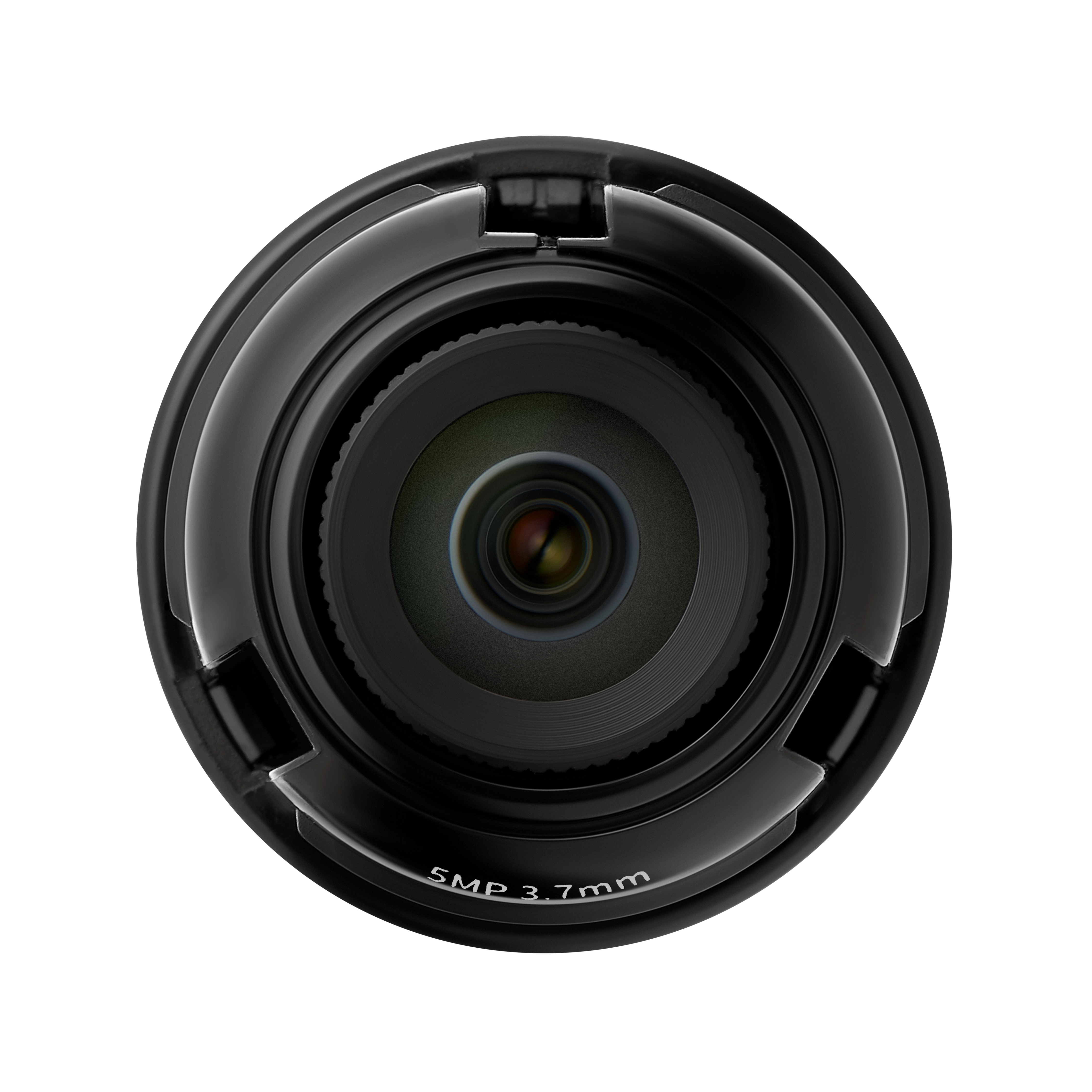

SLA-5M3700P: 5MP 3.7mm Fixed Lens Module for PNM-9320VQP

The SLA-5M3700P is an exchangeable lens module for the PNM-9320VQP multi-sensor camera, combining a 1/1.8" 5MP CMOS imaging device with a fixed 3.7mm lens. Its F1.6 aperture lens provides a field of view of H:97.5˚, V:71.9˚, D:126.2˚, and a minimum illumination of 0.16Lux@F1.6 in both Color and B/W. Wide Dynamic Range (120dB) and Electrical Day & Night help the module handle varying light conditions. The module uses an M12 mount and offers pan, tilt and rotate adjustment for precise alignment within the camera housing. It has a black plastic housing measuring Ø35.5 x 35.9mm and weighs 35g (0.08 lb), making it a compact option for the PNM-9320VQP system.

Key Features:

• 1/1.8" 5MP CMOS imaging sensor
• 3.7mm fixed lens, F1.6 max. aperture
• FoV H:97.5˚, V:71.9˚, D:126.2˚
• 0.16Lux@F1.6 min. illumination (Color, B/W)
• WDR (120dB)
• Electrical Day & Night
