Hanwha SBP-140CMT

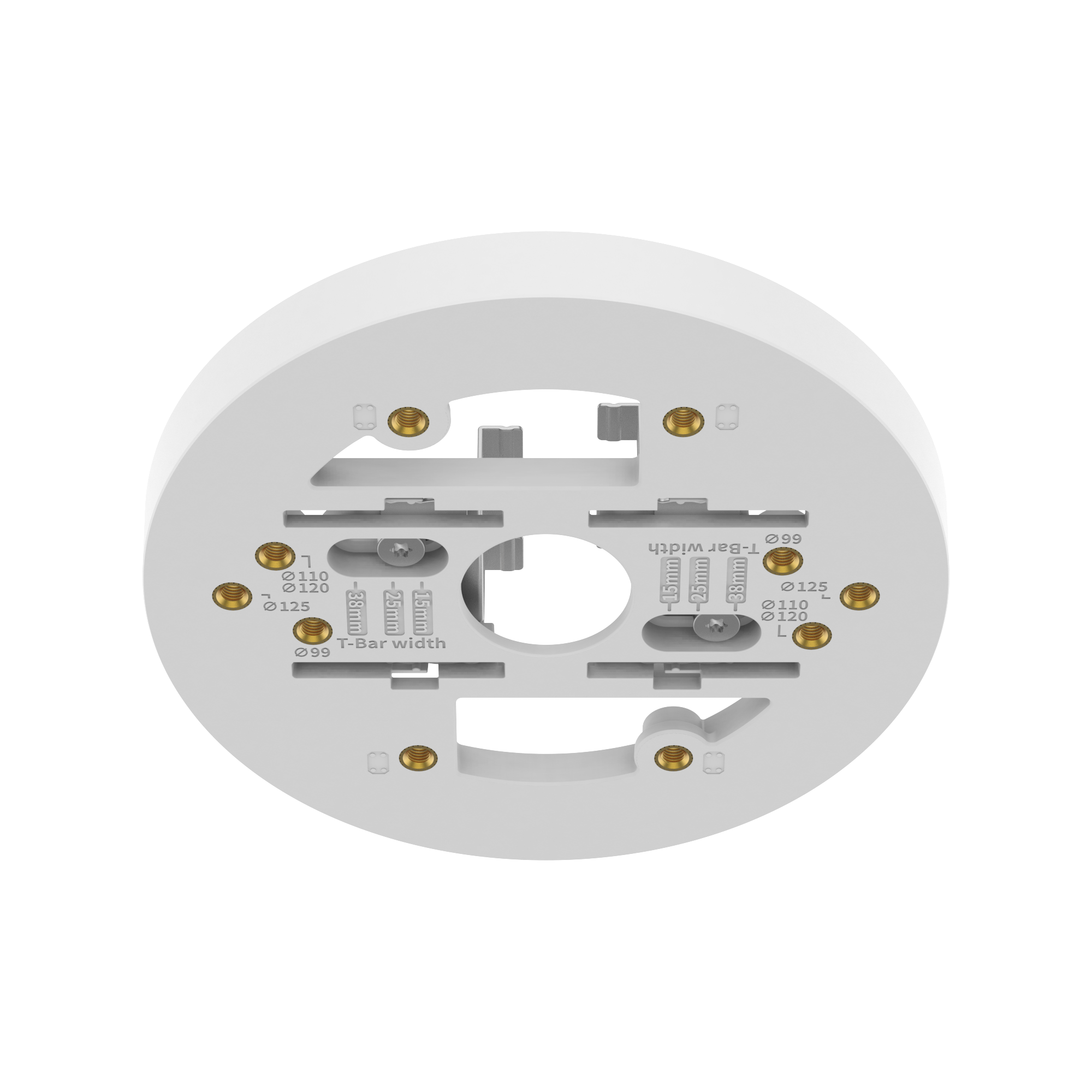

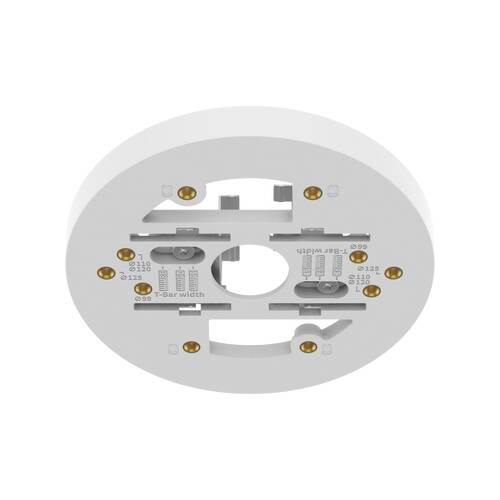

SBP-140CMT Tile Grid Ceiling Mount for Flush Dome Camera Installation

The SBP-140CMT is a Tile Grid Ceiling Mount designed to fit dome cameras seamlessly into suspended ceiling tile grids. It is made from a Polycarbonate (PC) plate with an Aluminum rail, finished in white (RAL9003), and measures ø140x27.5mm with a weight of 108g. The mount supports a maximum load of 2.5kg and uses a TR20 mount screw. It is supplied as a pack of 4 and is compatible with QND-6011/6021, QND-8011/8021, QNF-8010/9010, QND-6012R/6022R/6082R, QNV-C9011R/C8011R/C8012, LND-6012R/6022R/6072R, QNE-8011R/8021R, ANE-L6012R/L7012R/L7012L, QNV-C8083R/C9083R, XND-8082RV/9082RV, X plus indoor dome, and P AI indoor dome cameras. It is rated for operating temperatures of -10°C to +45°C and 5~90% RH (non-condensing).

Key Features:

• White finish (RAL9003)
• Polycarbonate (PC) plate with Aluminum rail
• Dimensions ø140x27.5mm, weight 108g
• Max. load 2.5kg, TR20 mount screw
• Pack of 4
• Compatible with QND, QNV, QNF, LND, QNE, ANE, XND and X plus / P AI indoor dome series
