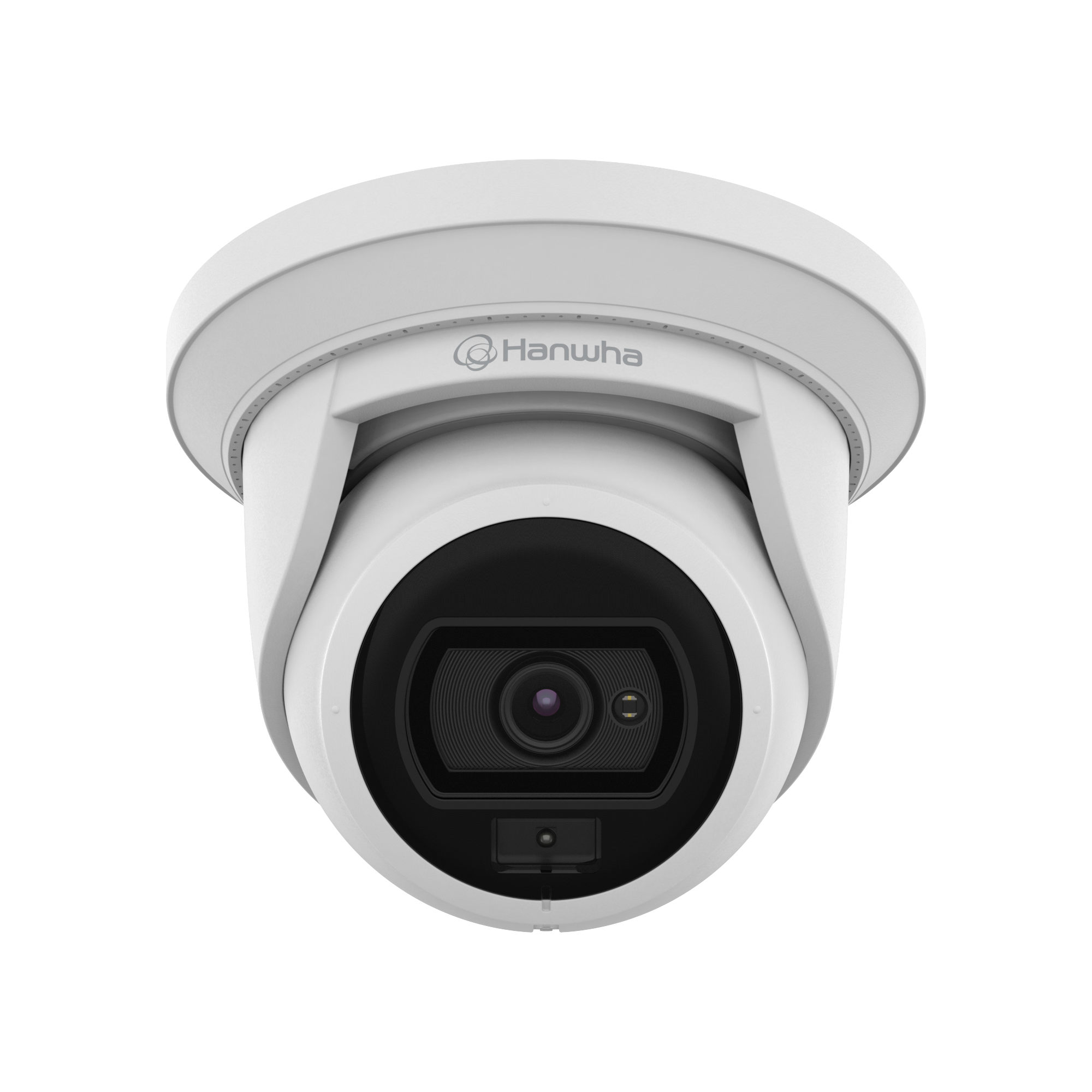

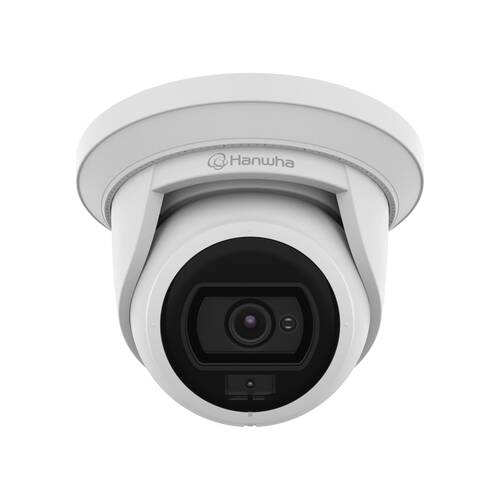

Hanwha ANE-L7012L
Hanwha
Article code ANE-L7012L
{{ fullProductName }}
Outdoor Turret 4MP Camera White light, 3mm lens, 97° overview, IK10
- Outdoor 4MP, White light
- Built-in fixed lens 3mm
- 97° overview
- Light sensitivity Color: 0.05 Lux, B/W: 0 Lux
Description Hanwha ANE-L7012L
Wisenet A Series White Light turret camera, 4MP @ 30 FPS, 3mm fixed focal lens, FoV H: 107.7° / V: 59.0°, WiseStream II, triple codec (H.265/H.264/MJPEG), 120dB WDR, White Light LED 20m(65.62ft), Flashing and Constant warning, virtual area (intrusion/enter/exit), virtual Line (crossing/ direction), motion detection, tampering, hallway view, SD card, IP66, PoE, white.
Key Features:
- 4 megapixel (2560 x 1440) resolution
- Built-in 3mm fixed lens FoV H: 98.3° / V: 54.2°
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG triple codec
- Color only, WDR (120dB)
- virtual area (intrusion/enter/exit), virtual Line (crossing/ direction), motion detection, tampering
- Micro SD/SDHC memory slot (Max. 32GB)
- PoE powered
- Hallway view, WiseStream II support
- IP66, IK10 support
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
Specifications
Product
| Model number | ANE-L7012L |
| GTIN code | 8801089228734 |
| Brand | Hanwha |
| Category |
IP Cameras
Turret
|
| HS Code |
852589
|
| Country of origin |
Vietnam
|
| Weight |
620 grams
|
| Size (lxwxh) |
368
x 368 x 364 millimeters
|
|
Camera Properties
|
Outdoor
|
|
Basic Functionality
|
Day and night
Local Storage
|
|
Resolution
|
4MP
|
|
Hanwha Series
|
Wisenet A
|
|
Angle of View
|
91° - 100°
|
|
Encoding
|
H264
H265
MJPEG
|
|
Thermal camera properties
|
≥ 30 fps
|
| Date published | 9/15/2023 |
