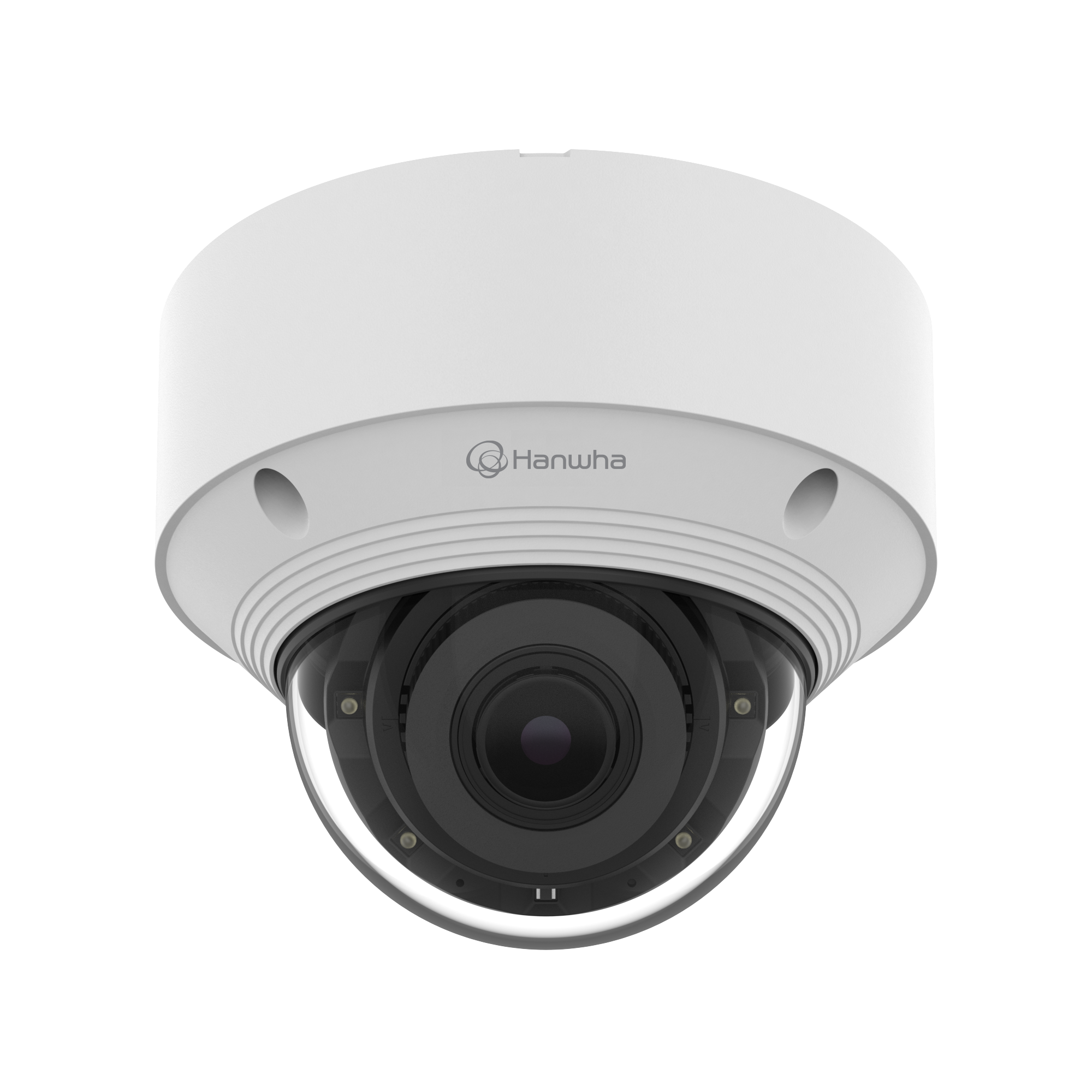

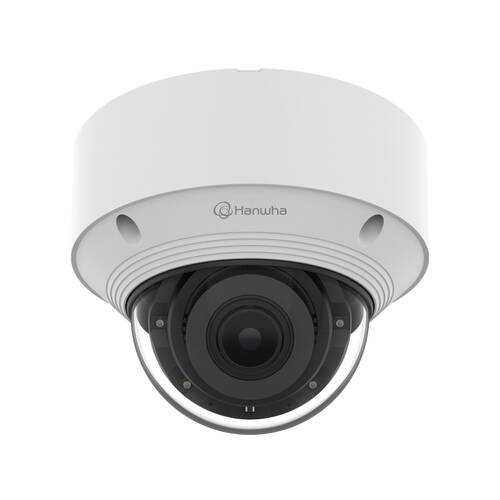

Hanwha QNV-C8083R
Hanwha
Article code QNV-C8083R
{{ fullProductName }}
5MP IR AI Vandal Dome, lens 3.2~10.2mm(3.2x), Angle of view: 95°-69° motorized varifocal, 30 fps, day/night, IR up to 30m, IK10 vandalisemproof
- 5MP IR AI Vandal Dome
- Angle of view: 95°-69°
- IR up to 30m
Description Hanwha QNV-C8083R
Q series AI network IR outdoor vandal dome camera, 5MP @30fps, 3.2 ~ 10.2mm motorized varifocal lens (3.2x), triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, 120dB WDR, Auto Day & Night (ICR), IR viewable length 30m, Object detection (Person/Vehicle), Vehicle Type AI attribures, Analytics events based on AI engine (motion detection, object detection, virtual line, virtual area), WiseMD (AI Motion detection), LDC (Lens Distortion Correction), Hard coated dome bubble, Gore valve, SD/SDHC/SDXC slot, IP66, IK10, PoE.
Key Features:
- Max. 5MP resolution
- Max. 30fps
- Color: 0.07Lux(F1.6, 1/30sec), BW: 0.007Lux(F1.6, 1/30sec, 30IRE)
- Focal length: 3.2~10.2mm(3.2x) motorized varifocal
- H.265, H.264, MJPEG codec supported
- Multiple streaming (up to 5 profiles)
- Day & Night (ICR), WDR (120dB)
- Micro SD/SDHC/SDXC 1 slot 256GB
- IP66, IK10
- PoE: Max 12.95W
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
Specifications
Product
| Model number | QNV-C8083R |
| GTIN code | 8801089219909 |
| Brand | Hanwha |
| Category |
IP Cameras
Dome
|
| HS Code |
852589
|
| Country of origin |
Vietnam
|
| Weight |
875 grams
|
| Size (lxwxh) |
258
x 525 x 364 millimeters
|
|
Camera Properties
|
Outdoor
Built-in infrared
Vandal resistant
|
|
Basic Functionality
|
Day and night
Local Storage
|
|
Resolution
|
5MP - 7MP
|
|
Hanwha Series
|
Wisenet Q
|
|
Optical zoom
|
1-10x
|
|
Encoding
|
H264
H265
MJPEG
|
