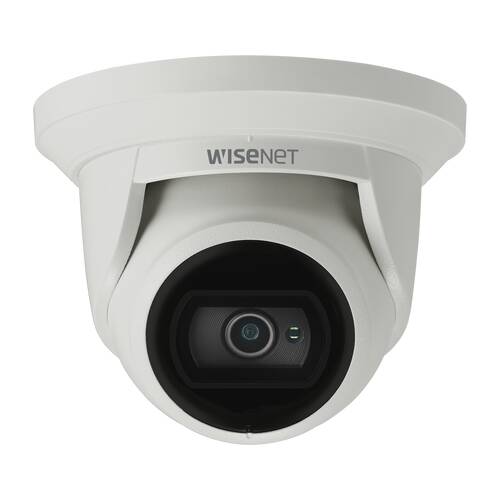

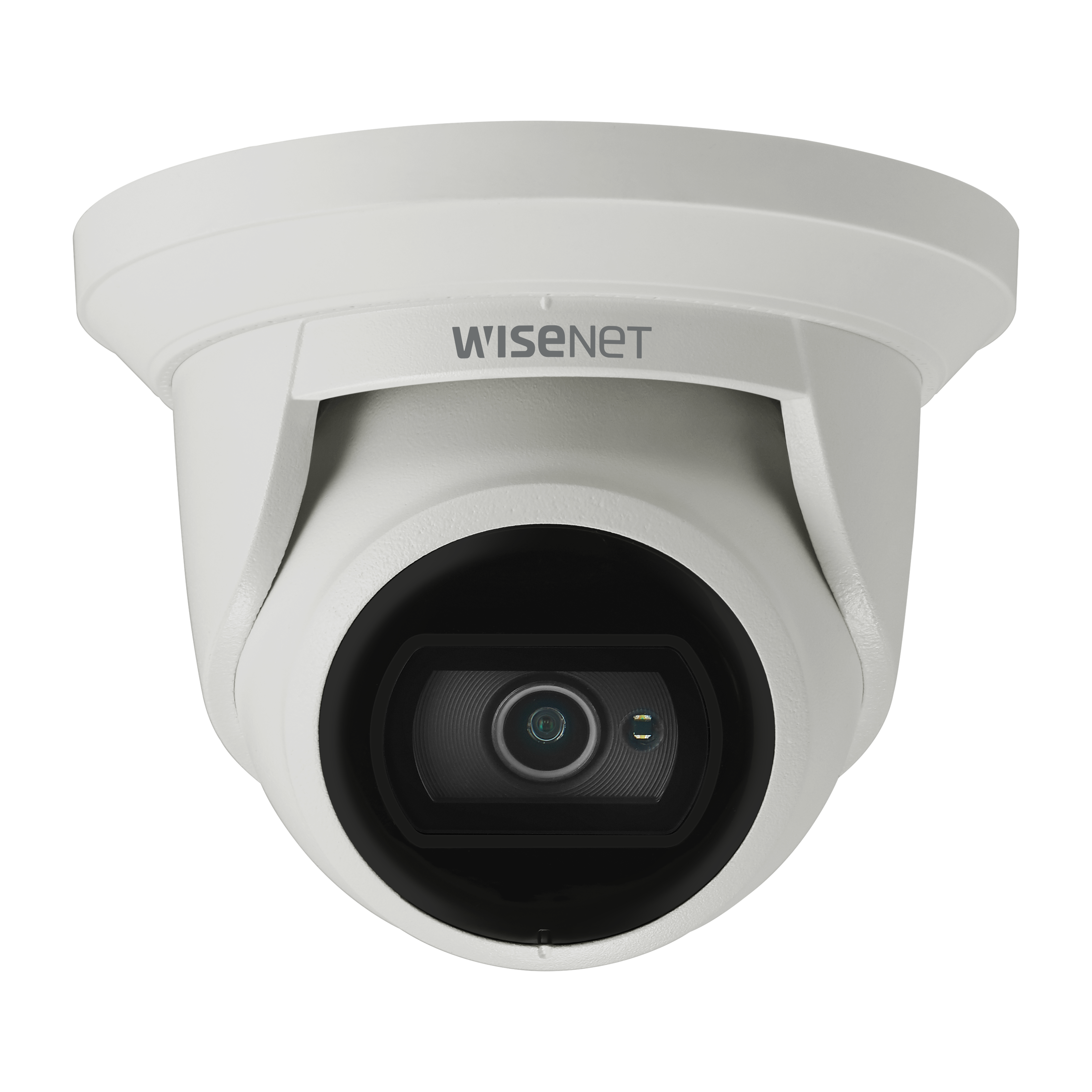

Hanwha ANE-L6012R
Hanwha
Article code ANE-L6012R
{{ fullProductName }}
Outdoor Turret 2MP Camera, 3mm lens, 108° overview, IR, Day/Night, IK10
- Outdoor 2MP, IR LEDs
- Built-in fixed lens 3mm
- 108° overview
- Light sensitivity Color: 0.03 Lux, B/W: 0 Lux with IR LED on
Description Hanwha ANE-L6012R
Wisenet A Series turret camera, 2MP @ 30 FPS, 3mm fixed focal lens, FoV H: 107.7° / V: 59.0°, WiseStream II, triple codec (H.265/H.264/MJPEG), 120dB WDR, IR LEDs 20m(65.62ft), day & night (ICR), virtual area (intrusion/enter/exit), virtual Line (crossing/ direction), motion detection, tampering, hallway view, SD card, IP66, PoE, white.
Key features:
- 2 megapixel (1920 x 1080) resolution
- Built-in 3mm fixed lens
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Virtual Line Crossing/Directional Detection, Enter/Exit, Tampering, Motion detection
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 20m
- IP67,IK10 support
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
Specifications
Product
| Model number | ANE-L6012R |
| GTIN code | 8801089228710 |
| Brand | Hanwha |
| Category |
IP Cameras
Turret
|
| HS Code |
852589
|
| Country of origin |
Vietnam
|
| Weight |
630 grams
|
| Size (lxwxh) |
368
x 368 x 364 millimeters
|
|
Camera Properties
|
Outdoor
Built-in infrared
|
|
Basic Functionality
|
Day and night
Local Storage
|
|
Resolution
|
1080p (2MP)
|
|
Hanwha Series
|
Wisenet A
|
|
Angle of View
|
101° - 130°
|
|
Encoding
|
H264
H265
MJPEG
WiseStream
|
|
Thermal camera properties
|
≥ 30 fps
|
