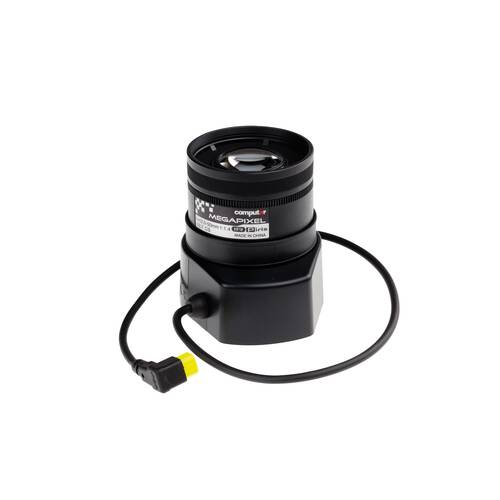

AXIS Lens COMPUTAR CS 12.5-50MM P-IRIS

Description AXIS Lens COMPUTAR CS 12.5-50MM P-IRIS
- Suitable for color and day/night cameras
- Telephoto, 12.5-50 mm lenses
- IR-corrected lenses
- DC-iris and P-Iris
- Compatible with e.g. AXIS Q1602/-E, Q1604/-E, Q1614/-E, AXIS P1355/-E, P1357/-E
Megapixel lens to see it all
With its unique HD optical design, the Computar 12.5-50 mm lenses provide larger image circle for exceptional brightness and clarity in corners and throughout image plane. The focal length is 12.5–50 mm and the lenses fast aperture (F-number) is 1.4.
Compatible cameras
The Computar 12.5-50 mm Lenses with DC-iris and with P-Iris are recommended for use with the following Axis cameras. The lenses are day/night corrected and therefore no adjustments will be needed when the IR-cut filter of the day/night camera disengages.
Computar 12.5-50 mm, P-Iris Lens:
Camera Image sensor Angle of view
AXIS P1355/-E 1/2.8" 23°-7°
AXIS P1357/-E 1/3.2" 19°-6°
Camera | Image sensor | Angle of view |
AXIS Q1615 Mk II | 1/2.8" | 25°-7° |
AXIS Q1615-E Mk II | 1/2.8" | 25°-7° |
* Angles achieved when the camera is used inside an Axis housing.
Downloads
Datasheet | Download |
Compatible products
- AXIS M1137-E Mk II i-CS
-
AXIS P1355
EOL
-
AXIS P1355-E
EOL
-
AXIS P1357
EOL
-
AXIS P1357-E
EOL
-
AXIS P1364
EOL
-
AXIS P1364-E
EOL
-
AXIS P1365 MK II
EOL
-
AXIS P1365-E MK II
EOL
-
AXIS Q1602
EOL
-
AXIS Q1602-E
EOL
-
AXIS Q1604
EOL
-
AXIS Q1604-E
EOL
-
AXIS Q1614
EOL
-
AXIS Q1614-E
EOL
-
AXIS Q1615
EOL
-
AXIS Q1615 MK II
EOL
-
AXIS Q1615-E
EOL
-
AXIS Q1615-E MK II
EOL
Specifications
Model number | AX5800-801 |
GTIN code | 7331021007024 |
Brand | AXIS |
Category |
Other Products
Various
|
HS Code |
900211
|
Country of origin |
China
|
Weight |
180 grams
|
Size (lxwxh) |
130
x 120 x 95 millimeters
|
Various
|
Lenses CS/C Mount
|
