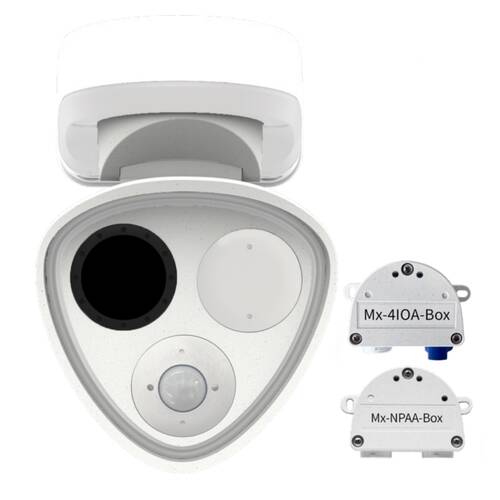

Mobotix M73TA-C640R050-EN54-V3

M73A Thermal Camera TR(B), EN54 Bundle V3, VGA, R050 (95°)

• M73A IP camera module (body) for connecting up to 1 additional optical sensor module (can be ordered separately)
• ONVIF-compliant (Profile S, T, G) MOBOTIX 7 system platform with H.264 (triple streaming), H.265, MxPEG+ and M-JPEG
• VGA thermal module (640 x 480 pixels), with Thermal Radiometry+, 95° x 76°
• Image sensor options (via sensor module): 4K (8MP), color (day) and/or B&W (night) and/or color (day/night with IR cut filter)
• Lens options (via sensor module): horizontal image angle from 95° to 15°
• Max. image size (per image sensor): 4K UHD (3840 x 2160 pixels), 16:9
• WDR: 120 dB triple shutter
• Function extensions: MultiSense (PIR, temperature, brightness sensor, microphone)
• Operating conditions: IP66/IK07, -40 to 65 °C
• Internal DVR: 8 GB microSD (for MxPEG+ recordings)
• Max. power consumption: 25 W, power supply via network cable, PoE Class 4 (IEEE 802.3af/at)
• Connections: 1x RJ45 socket for weatherproof network connection via MOBOTIX patch cable (Ethernet 1000BaseT), 1x MOBOTIX module connection (optical), I/0 (1x input, 1x output), line in, line out, 1x miniUSB • Software interface for MOBOTIX Certified Apps (based on deep learning, approx. 20 different 30-day demo versions already preinstalled)
• Housing: aluminum, PBT-30GF
• Color: white
• Warranty: 5 years (optionally extendable to up to 8 years)
• Scope of delivery: Mx-M73A-RJ45, Mx-O-M73TC-640R050, Mx-F-MSA, Mx-O-M7SA-Blind, Mx-F-4IOA, Mx-F-NPAA
