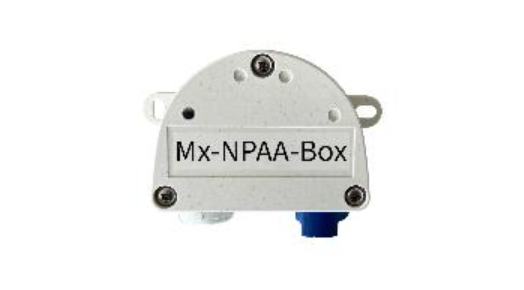

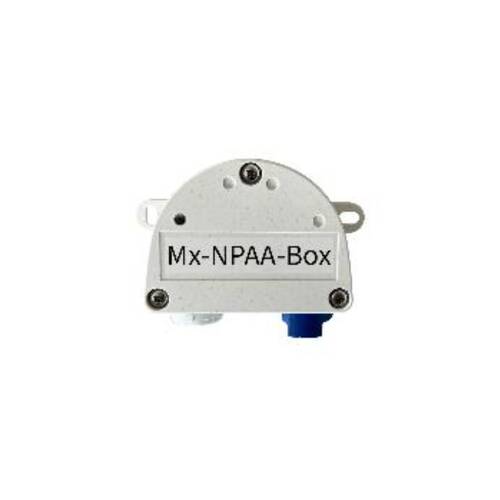

Mobotix Mx-F-NPAA

Weatherproof Power Adapter for MOBOTIX Cameras

The Mx-F-NPAA is a weatherproof power adapter designed for MOBOTIX cameras, supplying up to 25.5W through an integrated network connector. It requires an upstream power supply via power adapters and batteries delivering 12 to 24 V DC with a minimum of 35W. Built for outdoor use, it carries a protection class of IP66/IK08 and operates reliably across a temperature range of -30 to 50 °C. Only MOBOTIX patch cables may be used to connect the adapter to MOBOTIX cameras.

Key Features:

• Weatherproof power supply up to 25.5W
• Integrated network connector
• Requires 12–24 V DC power supply (min. 35W) via power adapters and batteries
• Protection class IP66/IK08
• Operating temperature -30 to 50 °C
• Only MOBOTIX patch cables permitted for camera connection
