Mobotix M73 Body with RJ45 Connector Box, white

Mobotix Article code Mx-M73A-RJ45

NetcamCenter {{ fullProductName }}

Up to 3 modules - the High Performance IoT Camera!
In stock
Buy now
+ Quote
  • Up to 3 sensor and function modules for easy self-assembly
  • Image sensor: 4K/8MP or 4MP with angle of view from 95° to 15° (depending on sensor module)
  • IR light module 850nm with different angles of view
  • MultiSense module (PIR, temperature, brightness, sound)
  • Audio module (microphone and speakers)

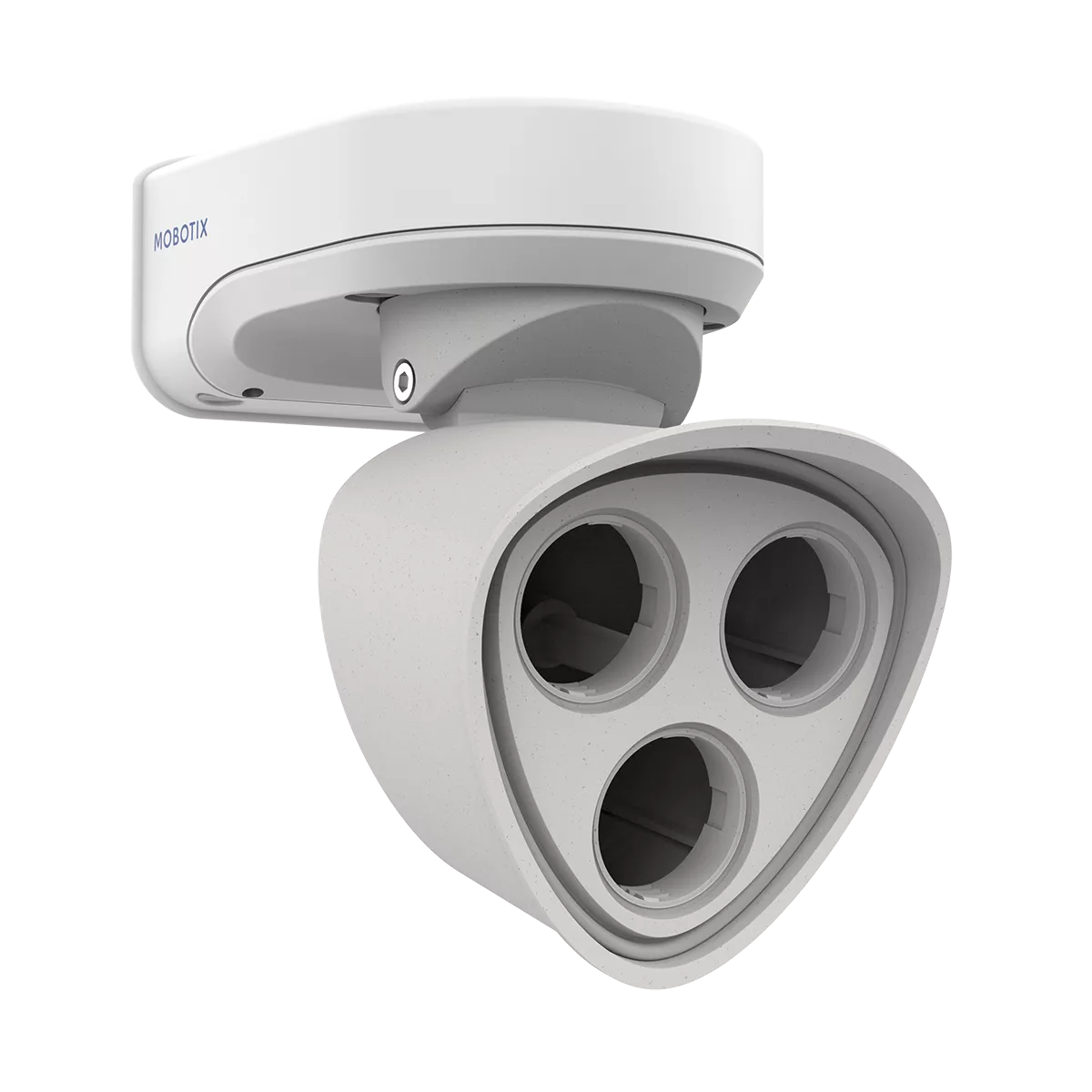

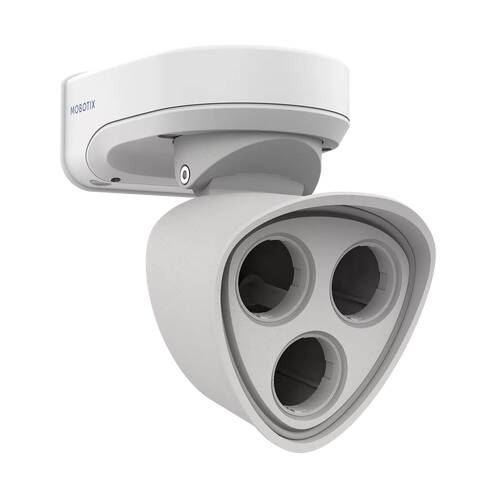

Description Mobotix M73 Body with RJ45 Connector Box, white

The M73 is simply the best and most innovative IP video system that MOBOTIX has ever built. All in the tradition of the original. And yet completely new and unique.

  • M73A IP camera module (body) for connecting up to three additional functional and optical sensor modules (to be ordered individually)
  • ONVIF-S-compliant MOBOTIX 7 system platform with H.264 (Triple Streaming), H.265, MxPEG+ and M-JPEG
  • Image sensor options (via sensor module): 4K (8 megapixels), color (day) and/or B/W (night) and/or color (day/night with IR cut)
  • Lens options (via sensor module): horizontal image angle from 95° to 15°
  • Max. image size (per image sensor): 4K UHD (3840 x 2160 pixels), 16:9
  • WDR: 120 dB Tripple Shutter
  • Functional extensions (via optional MOBOTIX modules): Audio (Microphone & Speaker), MultiSense (PIR, temperature, brightness sensor, Microphone), IR Light (supports 15°, 45°, 95° lenses), 1x miniUSB
  • Operating conditions: IP66/IK07, -40 to 65°C (-40 to 149 °F)
  • Internal DVR: 8 GB microSD (for MxPEG+ recordings)
  • Max. Power consumption: 25 W, supply via network cable, PoE Class 4 (IEEE 802.3af/at)
  • Connections: 1x RJ45 jack for weatherproof network connection via MOBOTIX patch cable (Ethernet 1000BaseT), 3x MOBOTIX module connection (optical/functional), I/0 (1x input, 1x output), 1x line in,1x line out, 1x miniUSB
  • Software interface for MOBOTIX Certified Apps (based on Deep Learning, approx. 20 different 30-day demo versions pre-installed)
  • Housing: Aluminium, PBT-30GF
  • Color: white
  • Warranty: 3 years (optionally extendable up to 8 years)

Difference between the M73 white-gray and the M73 white

M73 difference White Grey UK

RJ45 vs LSA connection

RJ 45 VS LSA aansluiting V4 65b17b7025c8bac3ed849a4c5b637ec6

RJ45: Only to be used with Mobotix Patch cable for the correct seal

LSA: An LSA+ Krone tool is required for mounting

Selection Sensormodules:
Selection LPF-modules for license plate registration:
Selection IR- and Audio-Modules:

Downloads

Datasheet Download
Installation manual Download

Video

Specifications

Product
Model number Mx-M73A-RJ45
GTIN code 4047438034982
Brand Mobotix
Category
IP Cameras
Box
Camera Properties
Outdoor
Vandal resistant
Basic Functionality
Day and night
Input/output
Audio support
Local Storage
Exchangeable CS lens
Resolution
4K (8.3MP) or higher
Mobotix Series
M73
Power over Ethernet
30W
Encoding
H265
MXPEG
