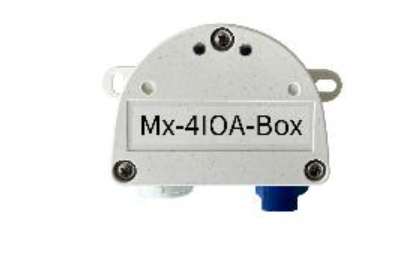

Mobotix Mx-F-4IOA

Weatherproof I/O Box for MOBOTIX 7 and ONE Cameras

The Mx-F-4IOA Input/Output Box enables the weatherproof connection of external sensors and the switching of external devices via MOBOTIX 7 and ONE cameras. It connects to the camera using the USB-C cable Mx-A-S7A-CBL01/02/03. The box provides 4 galvanically isolated inputs and 4 relay outputs for flexible integration of external equipment. Built to protection class IP66/IK08, it withstands operating temperatures from -30 to 60 °C, making it suitable for demanding outdoor environments. External devices, switches and relays can be connected using cables in the AWG26–AWG20 (0.14–0.5 mm2) specification.

Key Features:

• Camera connection via USB-C cable Mx-A-S7A-CBL01/02/03
• 4 galvanically isolated inputs
• 4 relay outputs
• Protection class IP66/IK08
• Operating temperature -30 to 60 °C
• Supports connection cables AWG26–AWG20 (0.14–0.5 mm2)
