Hanwha SHD-1370FPW
Hanwha
Article code SHD-1370FPW
{{ fullProductName }}
In-ceiling mount, aluminum, white, ø205x103mm, max load 3kg, for XNV/PNV dome cameras
Description Hanwha SHD-1370FPW

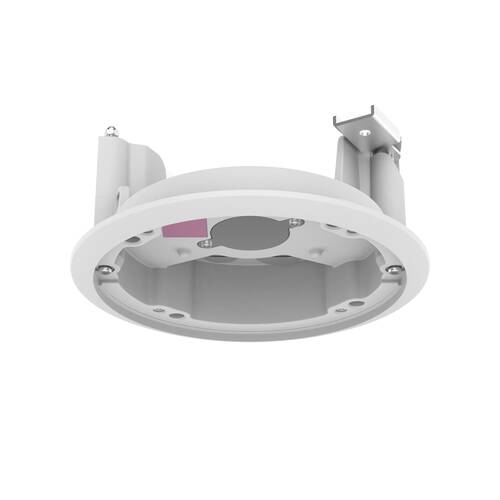

In-ceiling Mount for Hanwha Dome Cameras
The SHD-1370FPW is an in-ceiling mount designed for flush installation of compatible Hanwha Vision dome cameras into a ceiling tile. It is made of aluminum with a white finish (RAL9003) and measures ø205x103mm, weighing 770g. The mount fits ceiling tiles with a thickness of 10-70mm and requires a ceiling hole of ø181mm. It supports a maximum load of 3kg, with a maximum ceiling board load of 6.5kg. Conduit holes are provided in 12.7mm (1/2") and 19.1mm (3/4") sizes for cable routing.
Key Features:
- Aluminum construction, white finish (RAL9003)
- Ceiling hole size ø181mm
- Tile thickness 10-70mm (0.4-2.8")
- Max. load 3kg, max. ceiling board load 6.5kg
- Conduit holes 12.7mm (1/2") and 19.1mm (3/4")
- Compatible with multiple XNV/PNV dome cameras
Specifications
Product
| Model number | SHD-1370FPW |
| GTIN code | 8801089225382 |
| Brand | Hanwha |
| Category |
Other Products
Mounts
|
| HS Code |
852990
|
| Country of origin |
Vietnam
|
| Weight |
770 grams
|
| Size (lxwxh) |
263
x 263 x 209 millimeters
|
|
Various
|
New
|
| Date published | 10/26/2026 |
