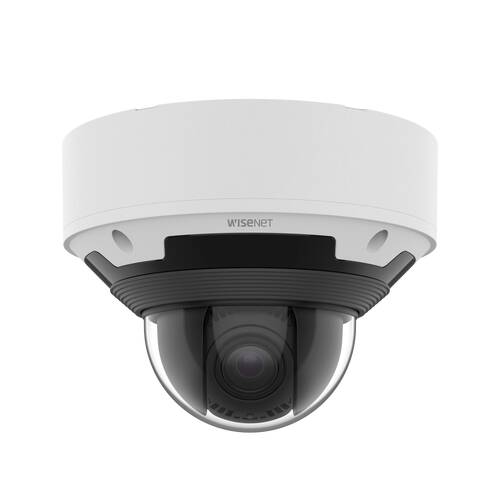

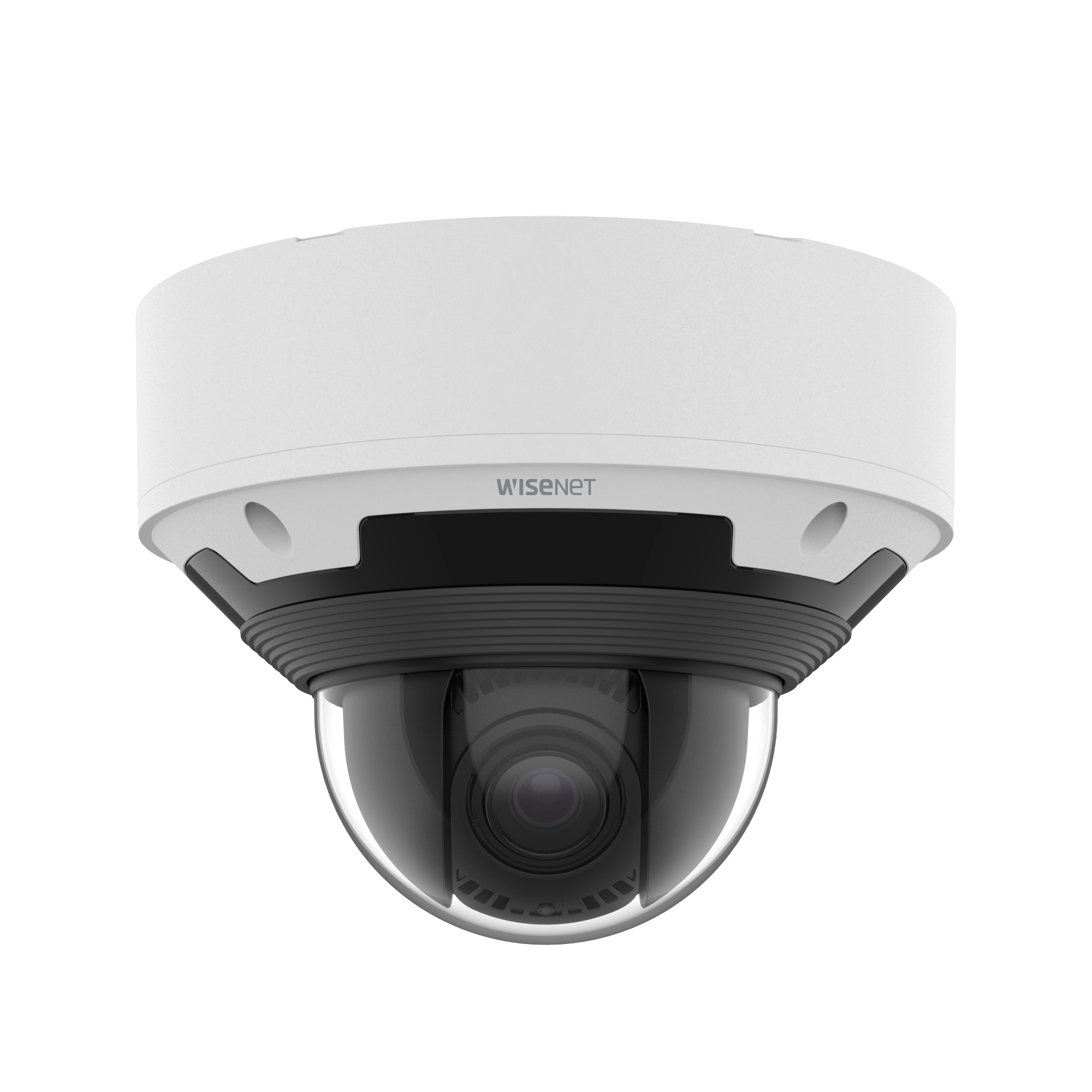

Hanwha XNV-6083Z

Hanwha Article code XNV-6083Z

NetcamCenter {{ fullProductName }}

2MP AI Vandal Dome Camera, 2.8~12mm (4.3x), Vari-focal Lens 120° - 27°, 120fps, Day/Night, 150dB WDR, IK10 Vandal Resistant
In stock
Buy now
+ Quote
  • Outdoor Dome 2MP 120fps
  • Vari-focal Lens 120° - 27°
  • Light Sensitivity Colour: 0.01 Lx, BW: 0,001 Lx

Description Hanwha XNV-6083Z

Wisenet X powered by Wisenet 7 AI network non IR vandal dome camera, Modular structure X PLUS, 2MP @120fps, 2.8 ~ 12mm motorized varifocal lens (4.3x), Colour 0.01 Lux (F1.4, 1/30sec, 30IRE), BW 0.001 Lux, Day & Night (ICR), extremeWDR (150 dB), WiseNRⅡ, WiseStreamⅢ, Analytics events based on AI engine (NPU) : Object detection (Person /Face/Vehicle – car, truck, bus, bicycle, motorcycle/Licence plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear, IP66/IP67/IP6K9K, NEMA4X, IK10+, Hard-coated dome bubble.

Key features:

  • 2MP resolution
  • 2.8~12mm (4.3x) motorized varifocal
  • Color: 0.01Lux(F1.4, 1/30sec, 30IRE)
  • B/W : 0.001Lux(F1.4, 1/30sec, 30IRE), 30/25fps
  • Maximum 120fps/100fps(60Hz/50Hz)(WDR off)
  • Day & Night (ICR), extremeWDR (150 dB)
  • Hard-coated dome bubble
  • WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
  • Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle – car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
  • Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear
  • IP66/IP67/IP6K9K, NEMA4X, IK10+

Downloads

Datasheet Download pdf
User manual Download pdf
Product dimensions Download pdf

Specifications

Product
Model number XNV-6083Z
GTIN code 8801089217837
Brand Hanwha
Category
IP Cameras
Dome
HS Code
852589
Country of origin
Vietnam
Weight
2000 grams
Size (lxwxh)
286 x 443 x 190 millimeters
Camera Properties
Outdoor
Vandal resistant
Basic Functionality
Day and night
RPTZ
Local Storage
Resolution
1080p (2MP)
Hanwha Series
Wisenet X
Optical zoom
1-10x
Encoding
H264
H265
