Hanwha XNV-6083R

Hanwha Article code XNV-6083R

NetcamCenter {{ fullProductName }}

2MP Vandal Dome Camera, 2.8 ~ 12.0mm, Vari-focal Lens 120° - 28°, 120fps, Day&Night, 150dB WDR, H.265
In stock
Buy now
+ Quote
  • Outdoor Dome 2MP 120fps
  • Vari-focal Lens 120° - 28°
  • Light Sensitivity Colour: 0.01Lx, 0 Lx IR on

Description Hanwha XNV-6083R

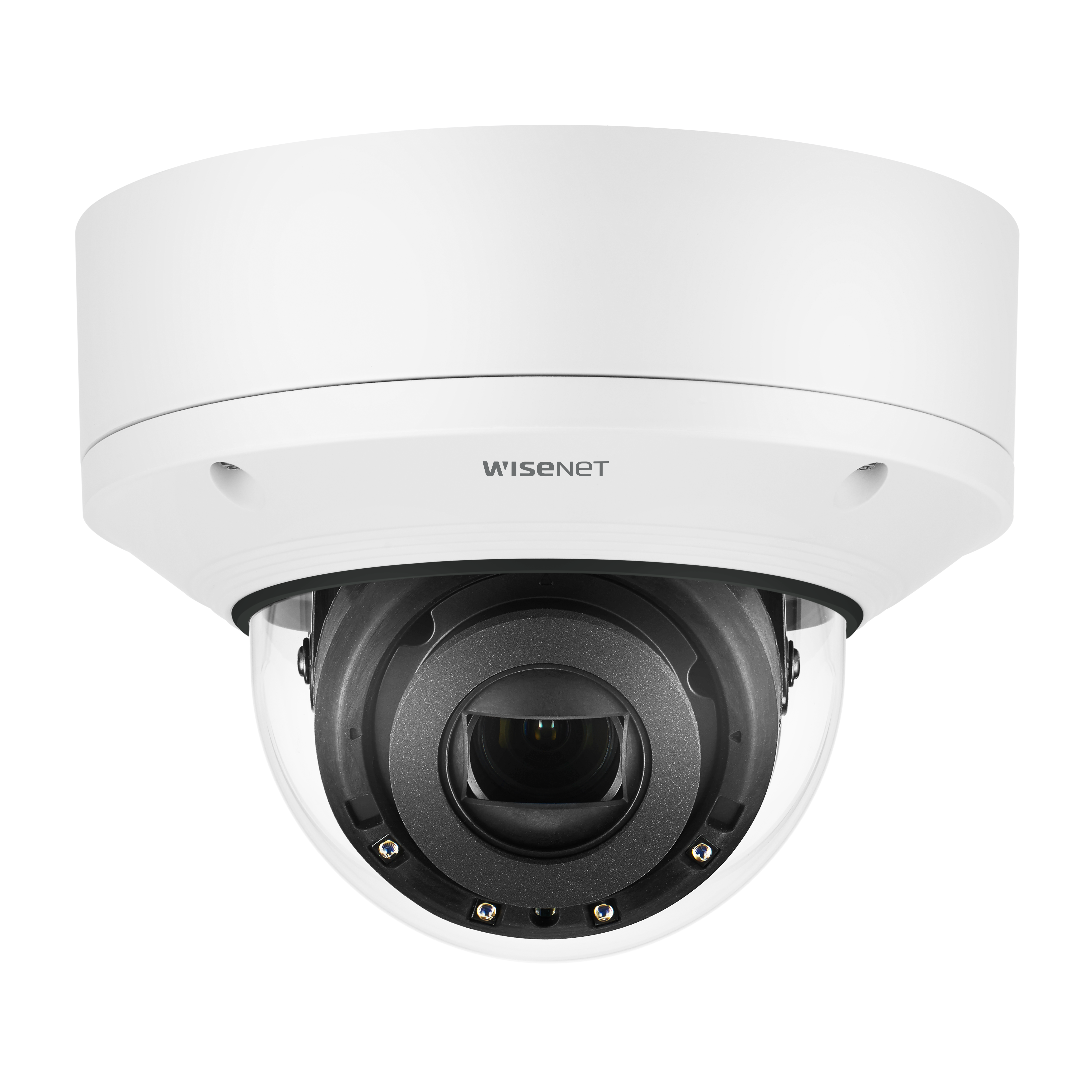

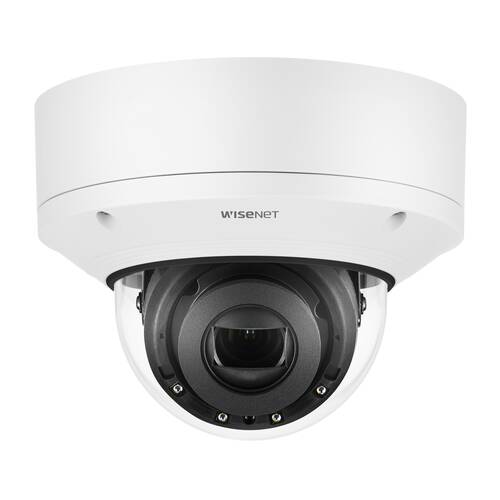

Wisenet X powered by Wisenet 7 AI network IR outdoor vandal dome camera, Modular structure X PLUS, 2MP @120fps, 2.8 ~ 12.0mm motorized vari-focal lens (4.3x) (119.5°~27.9°), triple codec H.265/H.264 /MJPEG with WiseStream III, Multiple streaming, 150dB WDR, True Day & Night (ICR), High Powered IR LEDs with IR viewable length 50m, Analytics events based on AI engine (NPU) : Object detection (Person /Face/Vehicle – car, truck, bus, bicycle, motorcycle/Licence plate),IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion),Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, HLC, Digital Image Stabilization with Gyro sensor, Bi-directional audio and dual microSD/SDHC /SDXC slot, ONVIF S/G/T, USB port for easy installation, IP67/IP66/IP6K9K, IK10+, Nema 4X, PoE+/12VDC, white colour skins included.

Key Features:

  • 2MP resolution
  • 2.8~12mm (4.3x) motorised varifocal
  • Colour: 0.01Lux(F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
  • Maximum 120fps (H.265/H.264)
  • WiseIR: IR viewable length 50m (164.04 ft)
  • Day & Night (ICR), extremeWDR (150dB)
  • Hard-coated dome bubble
  • WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
  • Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle – car, truck, bus, bicycle, motorcycle/Licence plate),
  • IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
  • Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
  • Audio detection, Sound classification, Shock detection, Appear/Disappear
  • IP66/IP67/IP6K9K, NEMA4X, IK10+

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Specifications

Product
Model number XNV-6083R
GTIN code 8801089207876
Brand Hanwha
Category
IP Cameras
Dome
HS Code
852589
Country of origin
Vietnam
Weight
1900 grams
Size (lxwxh)
286 x 443 x 190 millimeters
Camera Properties
Outdoor
Built-in infrared
Basic Functionality
Day and night
Audio support
Local Storage
Resolution
1080p (2MP)
Hanwha Series
Wisenet X
Optical zoom
1-10x
Encoding
H265
