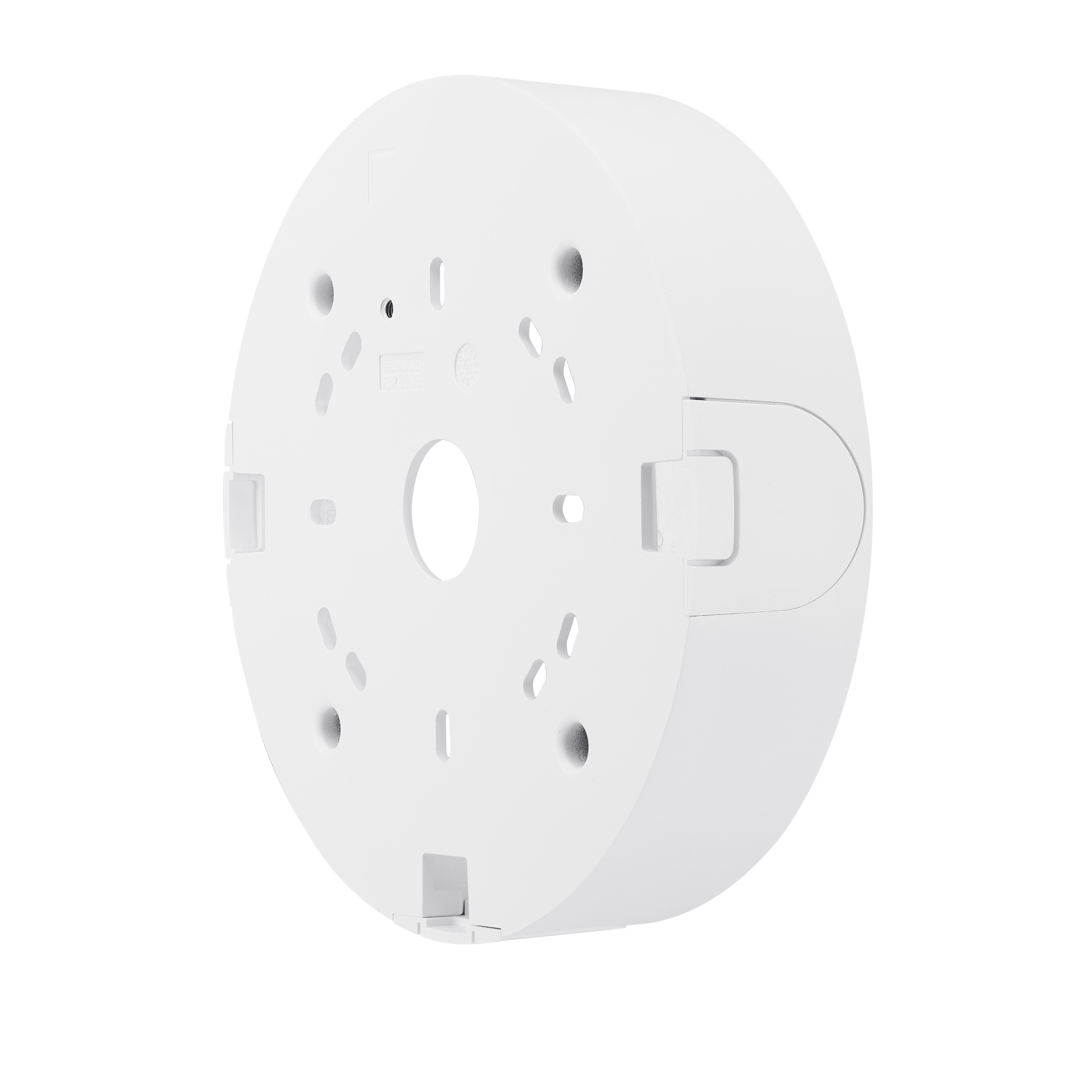

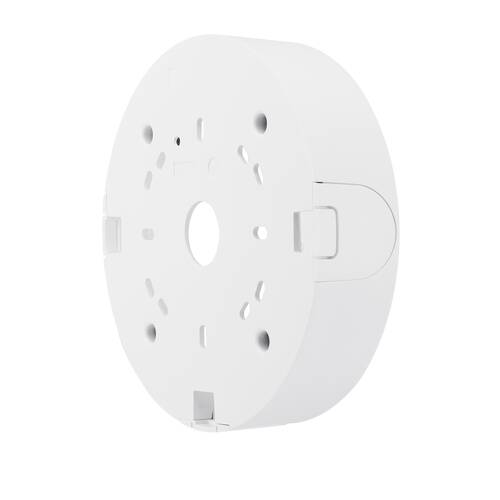

Hanwha SBV-160BW

SBV-160BW Aluminum Back Box for Indoor Vandal Domes and Fisheye Cameras

The SBV-160BW is a back box designed for indoor vandal dome and fisheye cameras. Made from white aluminum, it measures Ø162.8 x 40.0mm and weighs 360g, offering a compact and lightweight mounting solution. It is built to operate across a wide temperature range of -50°C to +60°C and in humidity levels of up to 100% RH. The back box features a 19.1mm (3/4") M25 conduit hole for cabling. It is compatible with a range of Wisenet camera models, including PND-A6081RV, PND-A9081RV, XND-6081REV, XND-6081RV, XND-6081V, XND-6081VZ, XND-8081REV, XND-8081RV, XND-8081VZ, XND-8082RV, XND-9082RV, XNF-9010RV and XNF-9010RVM.

Key Features:

• White aluminum construction
• Compact dimensions: Ø162.8 x 40.0mm (6.41" x 1.57")
• Lightweight at 360g (0.79 lb)
• Operating temperature -50°C to +60°C (-58°F to +140°F)
• Humidity resistance up to 100% RH
• 19.1mm (3/4") M25 conduit hole
