Hanwha XND-8081RV

Hanwha Article code XND-8081RV
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

5MP IR Vandal Resistant Dome Camera, Day / Night, 120dB WDR, Metal Body

Successor

Would you like personal advice on alternatives?

Discontinued
+ Quote

Description Hanwha XND-8081RV

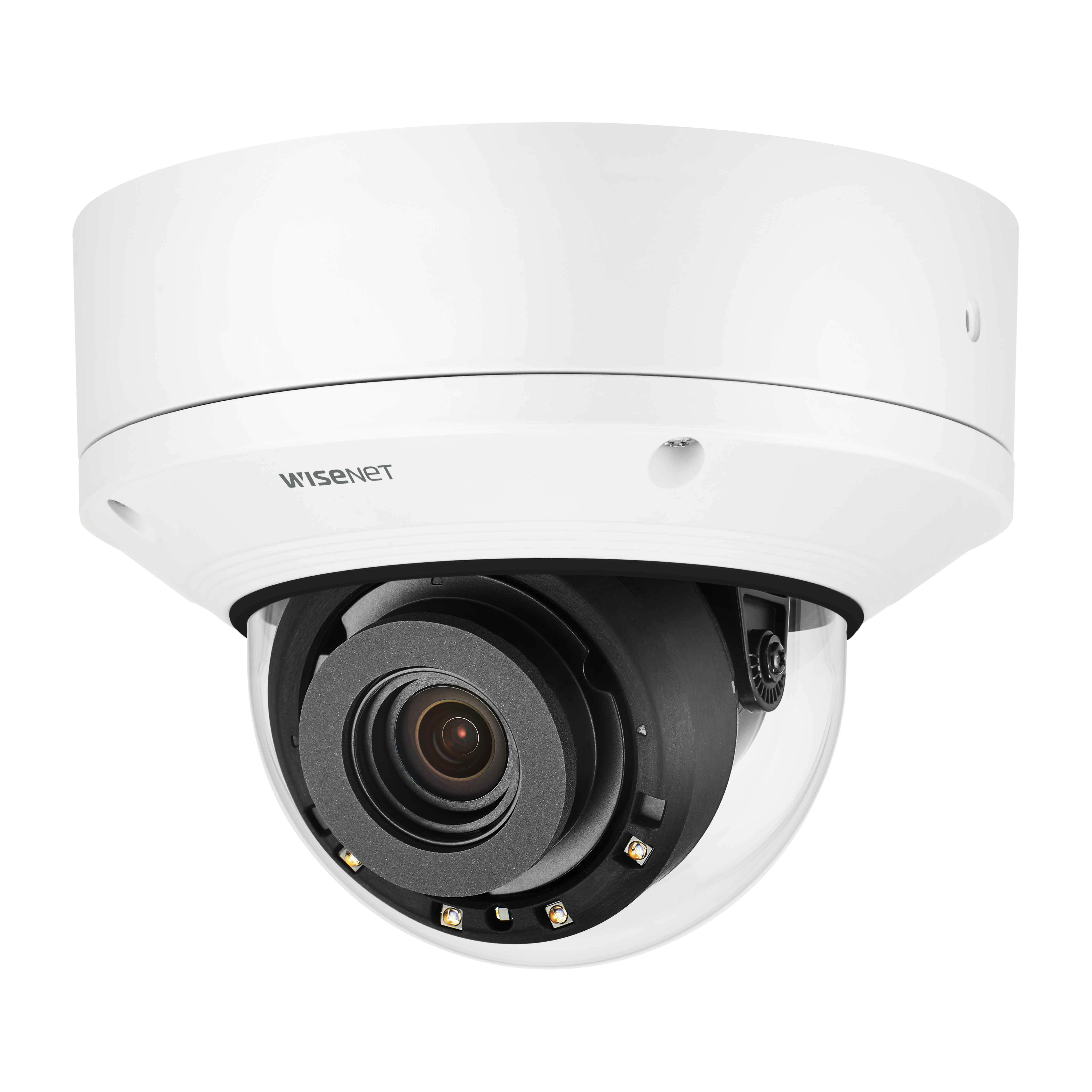

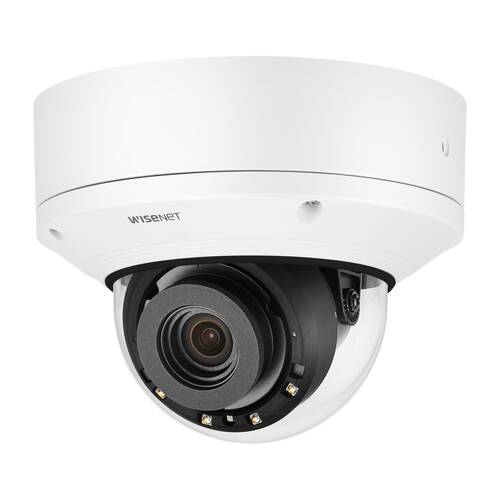

The Wisenet X series PLUS powered by Wisenet 5 network indoor vandal dome camera features a modular structure, 5MP, 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°). 164 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, IP52, IK10, white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.

Key Features:

  • Max. 5 Megapixel resolution
  • 0.07Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
  • Day & Night (ICR), WDR (150dB / 120dB)
  • Hallway View, WiseStreamII Support
  • Video & audio analytics, Audio playback
  • DIS and shock detection with built-in gyro sensor
  • Modular structure, PoE, 12VDC
  • IP52, IK10

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Video

Specifications

Product
Model number XND-8081RV
GTIN code 8801089153456
Brand Hanwha
Category
IP Cameras
Dome
HS Code
852589
Country of origin
Vietnam
Weight
1450 grams
Size (lxwxh)
424 x 476 x 348 millimeters
Camera Properties
Indoor
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
5MP - 7MP
Software
Analytics
Hanwha Series
Wisenet X Plus
Angle of View
91° - 100°
