Hanwha SBP-315HMW

SBP-315HMW Aluminum Hanging Adaptor for PNM-9084RQZ & PNM-9085RQZ Cameras

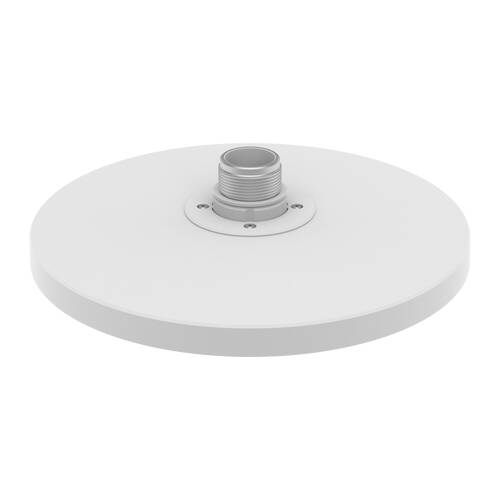

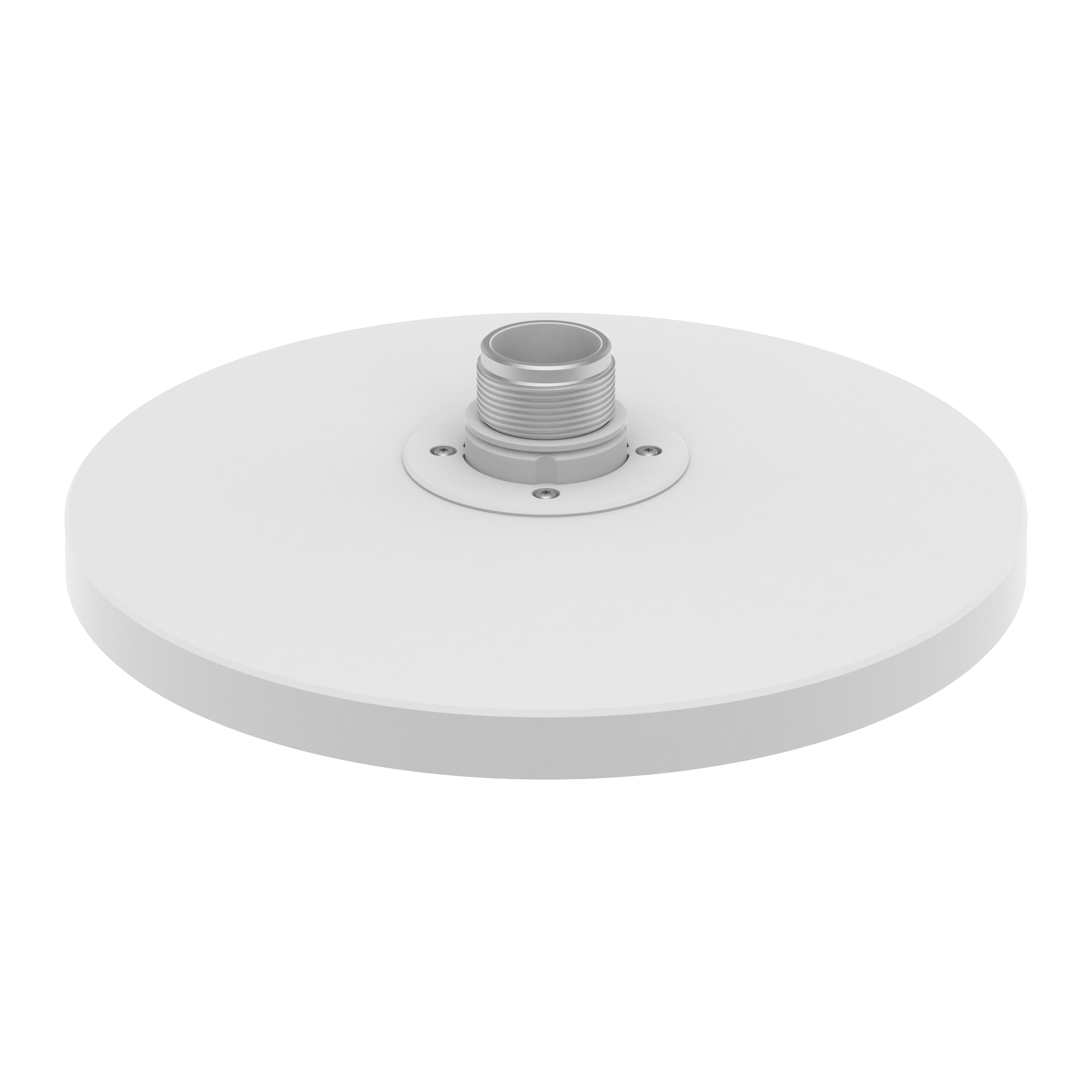

The SBP-315HMW is a hanging adaptor designed to mount compatible Hanwha Vision cameras in a hanging configuration. It is built with an aluminum core and a plastic cap, finished in white (RAL9003). The adaptor measures ø330x74.0mm (ø13.0x2.91") and weighs 550g (1.21lb), with a mount screw size of TR20 and a maximum load capacity of 6kg. It supports the PNM-9084RQZ and PNM-9085RQZ camera models, with additional compatibility for the PNM-9084RQZ1 and PNM-9085RQZ1 variants.

Key Features:

• Color: White (RAL9003)
• Material: Aluminum core, plastic cap
• Dimensions: ø330x74.0mm (ø13.0x2.91")
• Weight: 550g (1.21lb)
• Mount screw size: TR20
• Max. load: 6kg
