Hanwha SBP-160TMW1

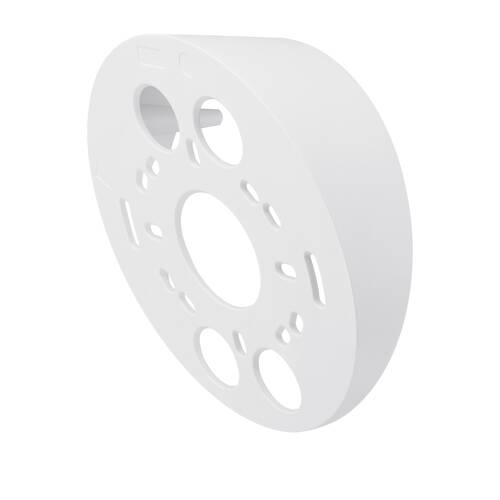

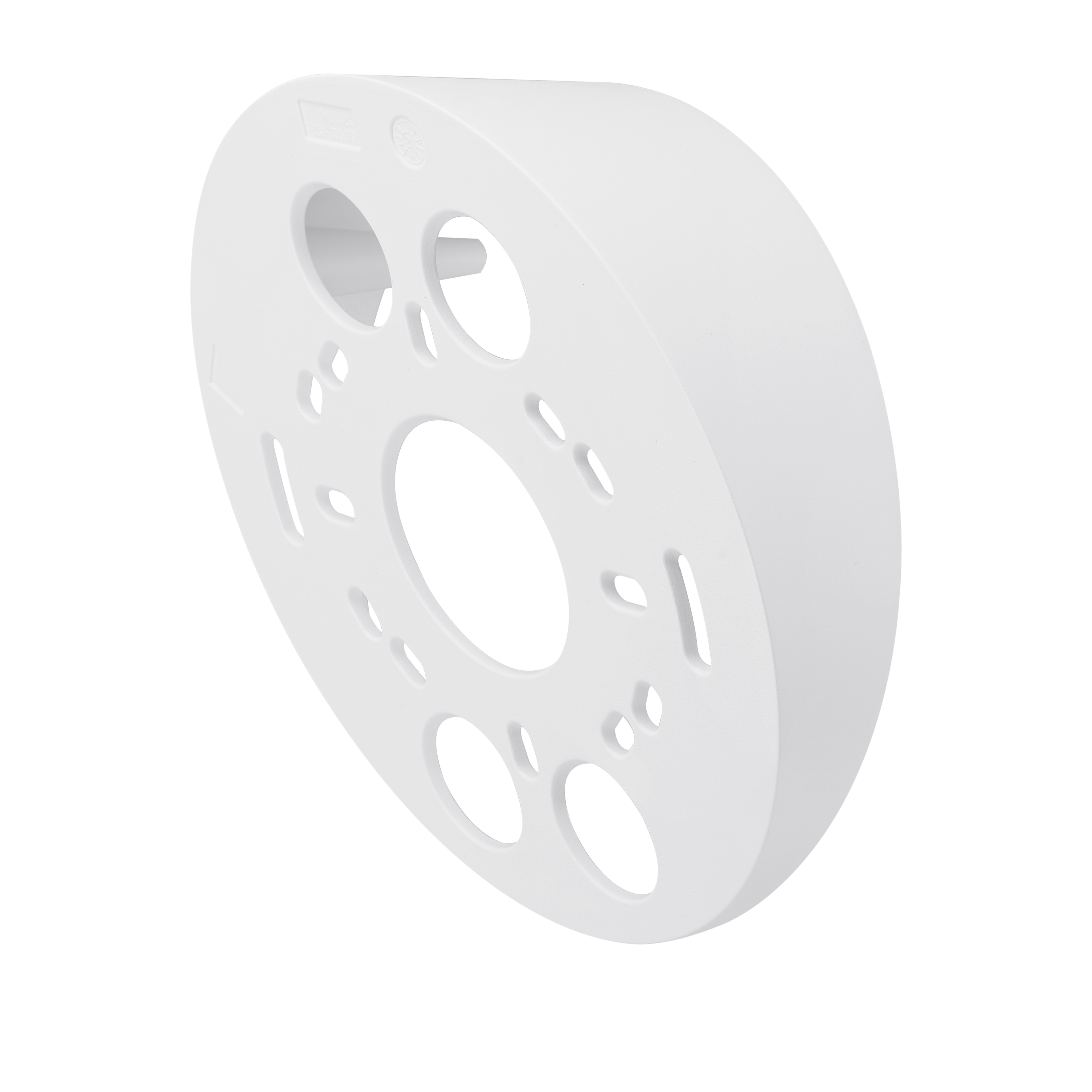

SBP-160TMW1 Tilt Mount – 23° Tilted Wall Mount for Wisenet Cameras

The SBP-160TMW1 is a tilt mount designed to angle compatible Wisenet security cameras for optimal positioning. Built from aluminum with a white finish (RAL9003), it offers a 23° tilt for flexible camera orientation on wall installations. With compact dimensions of Ø160.0 x 57.6mm (6.30" x 2.27") and a weight of only 325g (0.72 lb), it adds minimal bulk to the installation. The mount is rated for operation and storage in temperatures from -50°C to +60°C (-58°F to +140°F) with less than 100% relative humidity, making it suitable for outdoor use. It is compatible with a range of Wisenet camera models, including the PND-A9081RV, XND-6081REV, XND-6081RV, XND-6081V, XND-6081Z, XND-8081REV, XND-8081RV, XND-8081VZ, XND-8082RV, XND-9082RV, XNF-9010RV, and XNR-9010RVM.

Key Features:

• Aluminum construction with white finish (RAL9003)
• 23° tilt for flexible camera positioning
• Compact size: Ø160.0 x 57.6mm (6.30" x 2.27")
• Lightweight design: 325g (0.72 lb)
• Operating/storage temperature -50°C to +60°C, less than 100% RH
• Compatible with multiple Wisenet camera models (PND-A9081RV, XND series, XNF-9010RV, XNR-9010RVM, and more)
