Hanwha SBO-090GP

SBO-090GP Wall Adaptor Gang Plate for Bullet Cameras

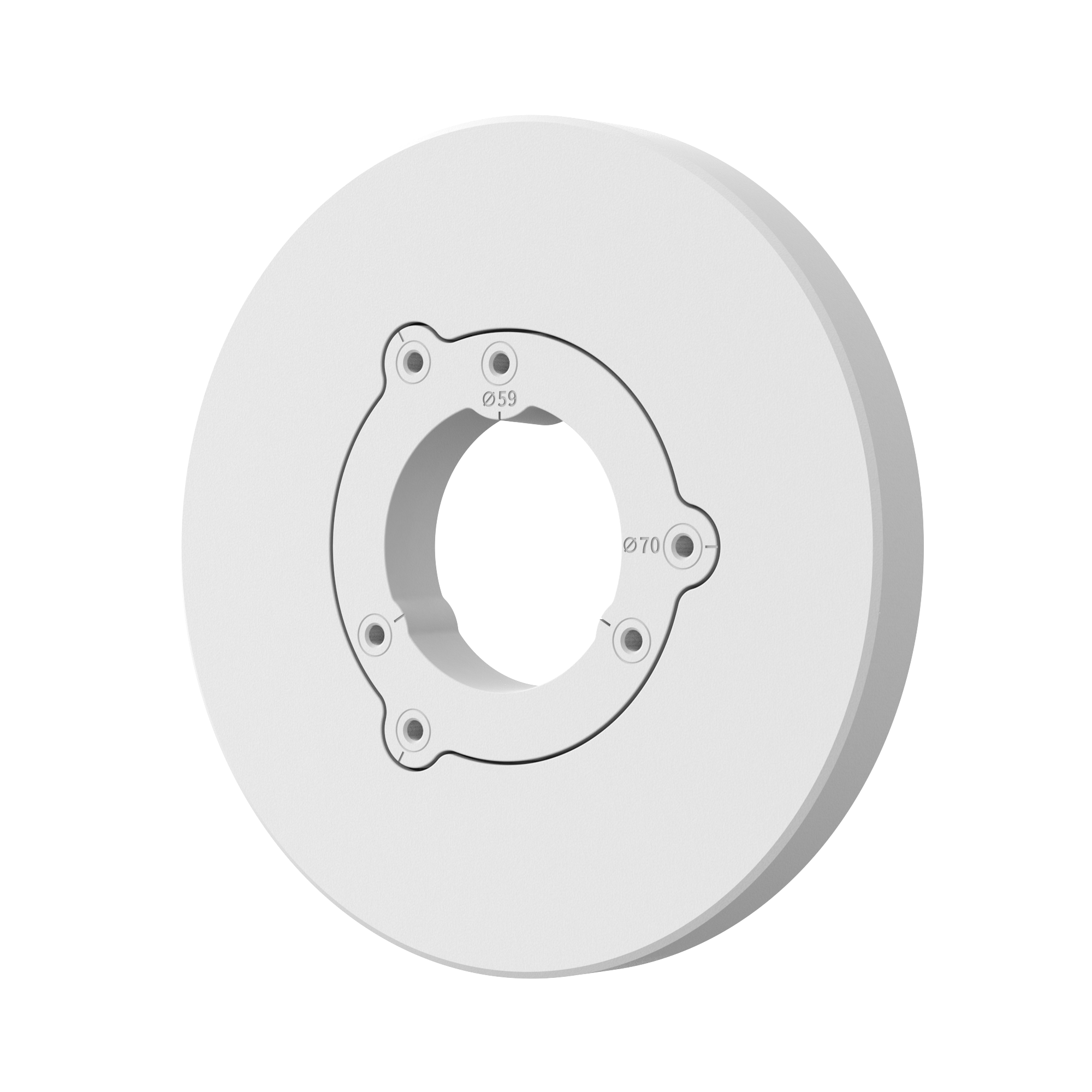

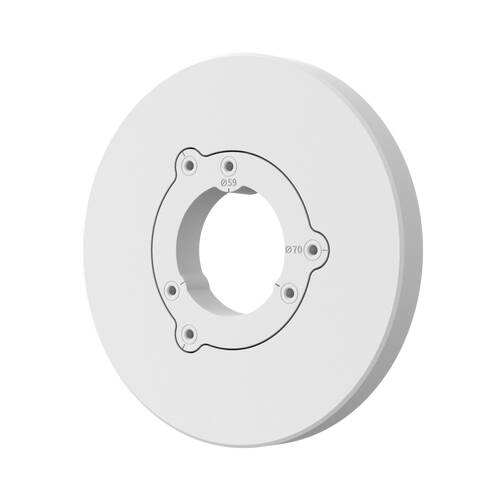

The SBO-090GP is a wall adaptor, also known as a gang plate, built for mounting compatible bullet cameras. It serves as an adaptor plate for Single, Double, and 4" Octagon electrical boxes. Finished in white (RAL9003) with an aluminum core and a plastic cap, it measures ø140x13.2mm (ø5.52x0.52") and weighs 190g (0.42lb). It uses a TR20 mount screw and is compatible with the QNO-C8083R, QNO-C9083R, ANO-L6012R, ANO-L6022R, ANO-L6082R, ANO-L7012R, ANO-L7022R, and ANO-L7082R.

Key Features:

• White finish, RAL9003
• Aluminum core with plastic cap
• Compact ø140x13.2mm, 190g
• TR20 mount screw
• Adaptor plate for Single, Double, 4" Octagon boxes
• Compatible with QNO-C8083R/C9083R and ANO-L6000/L7000 series
